Evolis Dualys - Card Positioning

ä
Card positioning
Magnetic strip cards must be placed in the card feeder so that the magnetic strip is facing upwards as shown below:
Ê

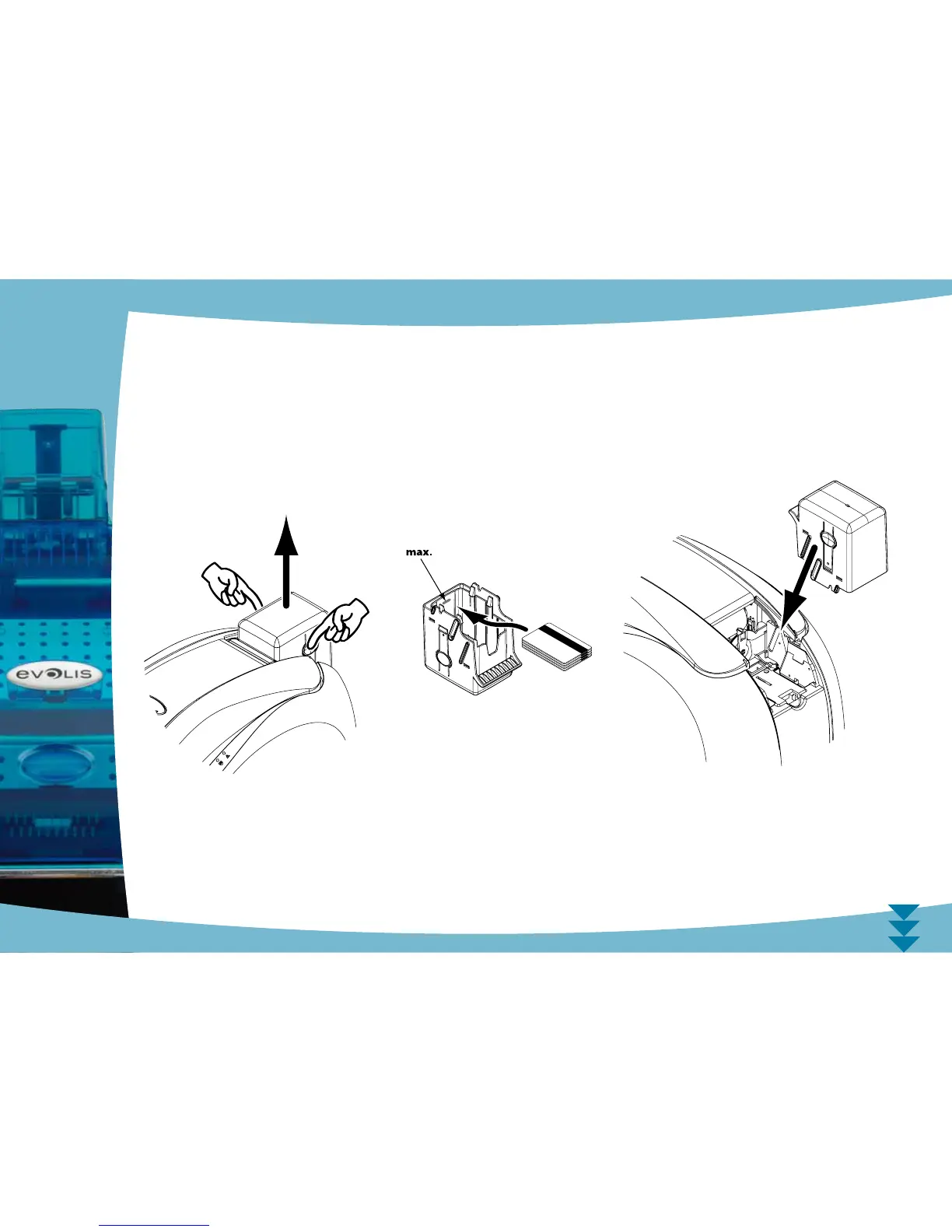

Remove the card feeder from the printer as shown.
Ë
Lower the spring system as shown and insert a maximum of 100 x 0.76 mm magnetic cards
Ì
Put the feeder back into the printer, then press on the upper section of the feeder until it clicks.
C
47
Ê Ë Ì
