Evolis Dualys - Page 52

ä
Card positioning
Smartcards must be placed in the card feeder so that the chip is facing downwards as shown below:
Ê

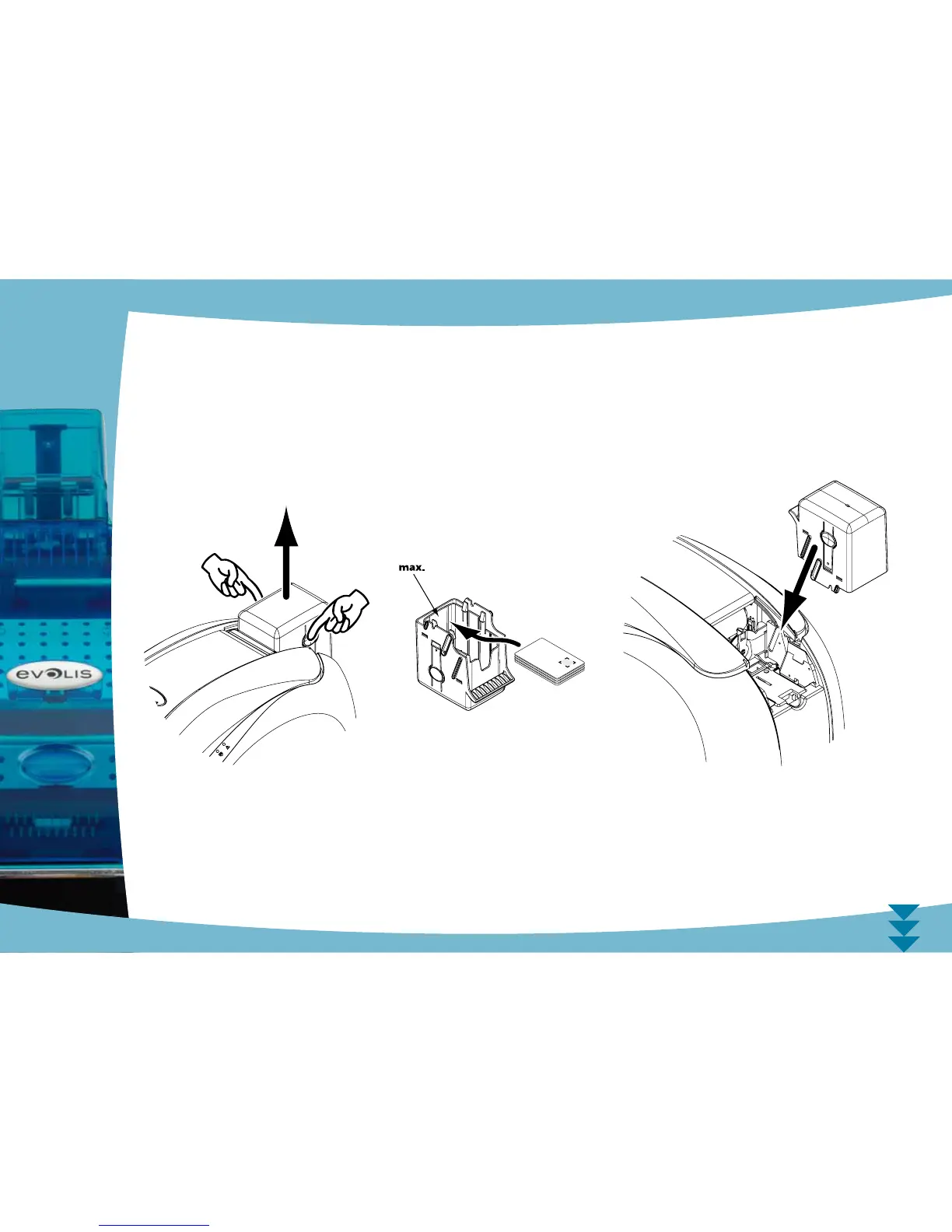

Remove the card feeder from the printer as shown.
Ë
Lower the spring system as shown and insert a maximum of 100 x 0.76 mm magnetic cards (chip down).
Ì
Put the feeder back into the printer, then press on the upper section of the feeder until it clicks.
C
51
Ê Ë Ì
