Evolution Aqua K1 MICRO BEAD 20 - MPV and Blower Pipework Fittings

FIT TO MPV ON
30” AND 36”
MODELS ONLY
FIT BETWEEN
AIR BLOWER
AND BALL VALVE
TO REPLACE
COLLAR INSERTS
ON FILTER
INLET AND
OUTLETS
TO SCREW
INTO
MPV
FIT TO
MPV ON
24”
MODELS
ONLY
A
D
E
B
A C
7

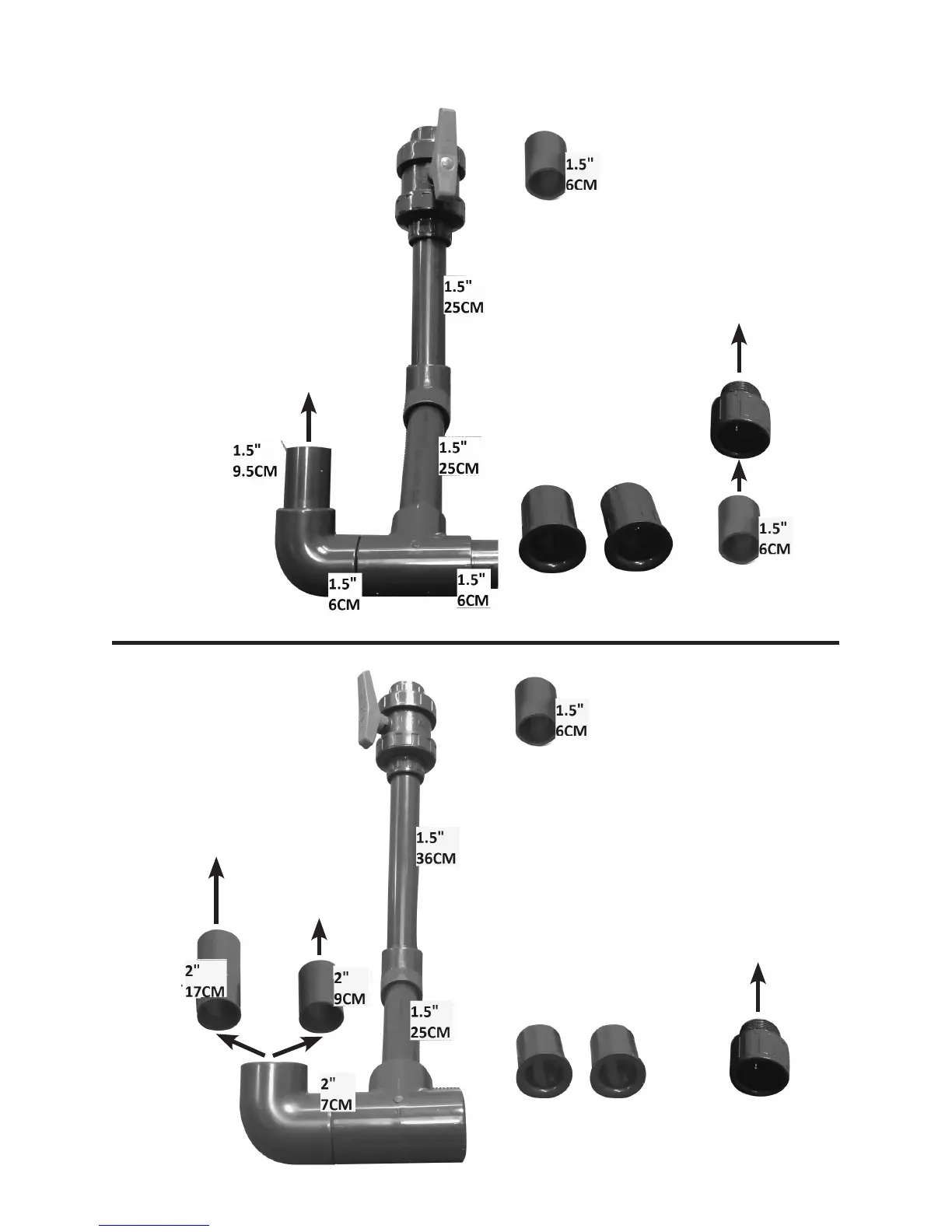

MPV AND BLOWER PIPEWORK FITTINGS
SUPPLIED WITH
20” MODELS
FIT BETWEEN
AIR BLOWER
AND BALL VALVE
TO REPLACE
COLLAR INSERTS
ON FILTER
INLET AND
OUTLETS
TO SCREW
INTO
MPV
FIT TO
MPV ON
20”
MODELS
ONLY
SUPPLIED WITH
24”, 30” AND
36” MODELS
Figure 4.
Figure 5.
A A B
B
C
