K1 MICRO BEAD FILTER SET-UP

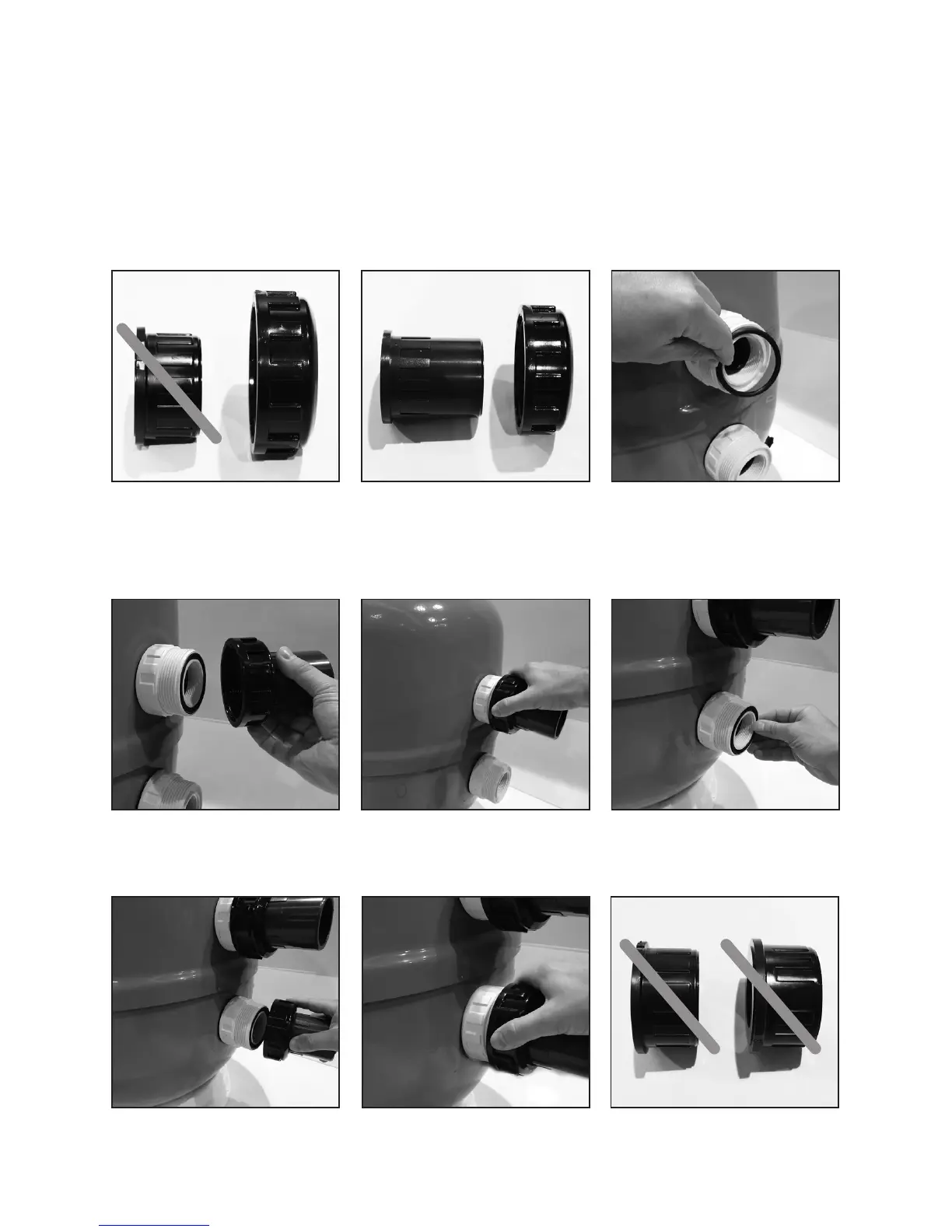

FITTING THE INLET AND OUTLET THREADED COLLARS
We recommend following these instructions to install the K1 Micro Bead Filter.
Remove the K1 Micro Bead Filter, the multi-port valve, air blower, pipe work,
and fittings from the box, and familiarise yourself with the parts. (See page 4 and 7).
Discard the inserts supplied
with the threaded collars.
Fit the threaded collar, with
the insert (A) onto the outlet.
Fit the threaded collar, with
the insert (A), onto the outlet,
and tighten up.
Instead use the inserts (A)
supplied inside the pipework
kit bag. (See page 7)
Tighten up the collar. HAND
TIGHTEN ONLY.
Discard the inserts supplied
with the threaded collars.
Tighten up the collar.
HAND TIGHTEN ONLY.
Fit the O-ring into the seal
on the outlet.
Now fit the O-ring into the
seal on the inlet.
