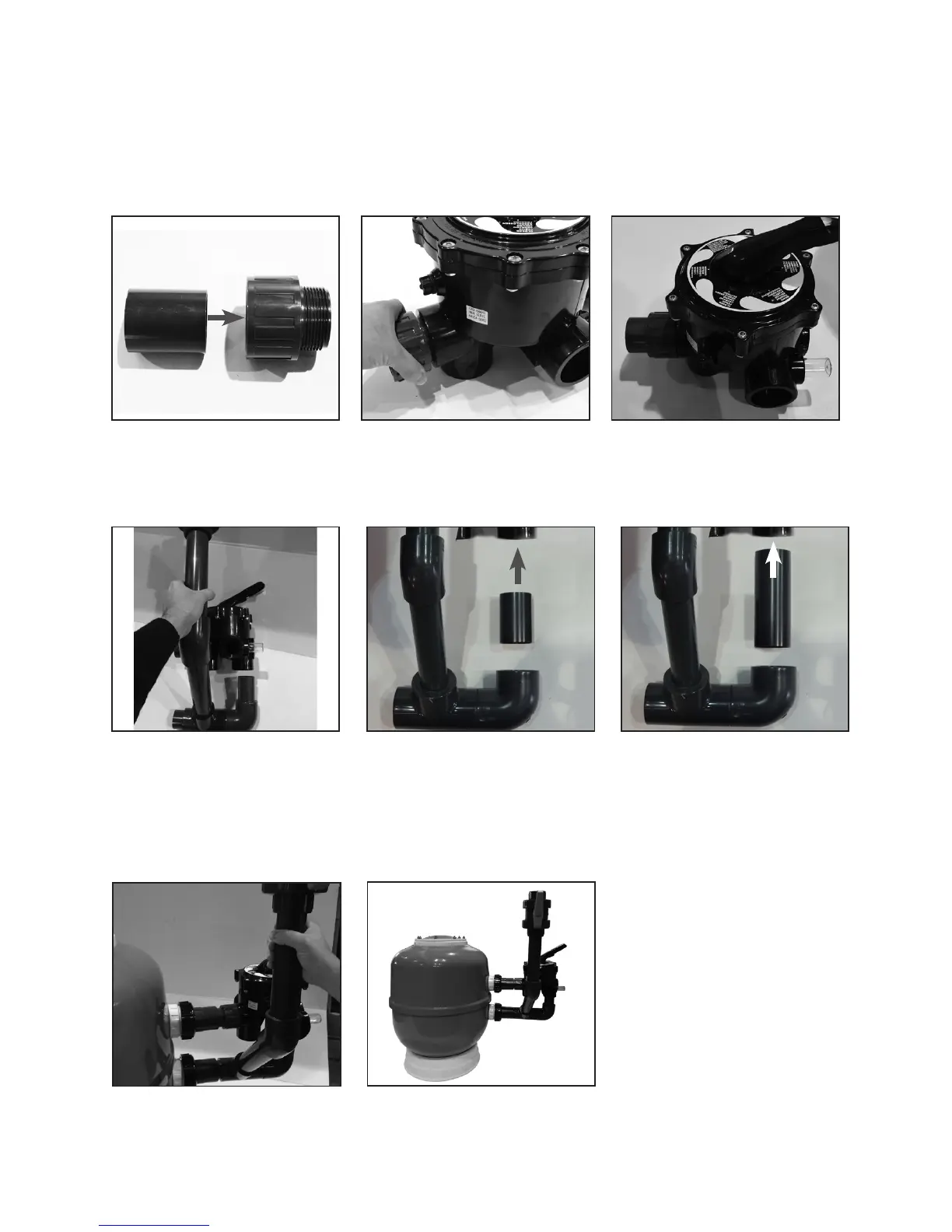

FITTING THE MULTI-PORT VALVE
ONLY ON 20” MODELS
Glue 6cm pipe (B) into the
female end of the threaded
insert (C)
ONLY ON 20” MODELS
Take the pre-assembled
pipework (with ball valve)
and insert the end with the
piece of 1½” pipe into the
MPV. Glue connections.
ONLY ON 24” MODELS
Take the pre-assembled
pipework (with ball valve)
and insert 9cm pipe (E)
between the MPV and 2”
Elbow. Glue connections.
ON 30” AND 36” MODELS
Take the pre-assembled
pipework (with ball valve)
and insert 17cm pipe (D)
between the MPV and 2”
Elbow. Glue connections.
ON ALL MODELS
Screw insert (C) into the
female thread on the MPV.
HAND TIGHTEN ONLY.
Take the MPV assembly and
pipework and fit to the inlet
and outlet on the filter. Glue
connections.
The filter set up should now
look like this
The MPV assembly should
look like this. (Image shows
20” model version)
K1 MICRO BEAD FILTER SET-UP
12
PLEASE NOTE: We strongly recommend that you fit all pipework dry to check that you have
fitted them correctly before permanently fixing them with solvent weld adhesive.
