13

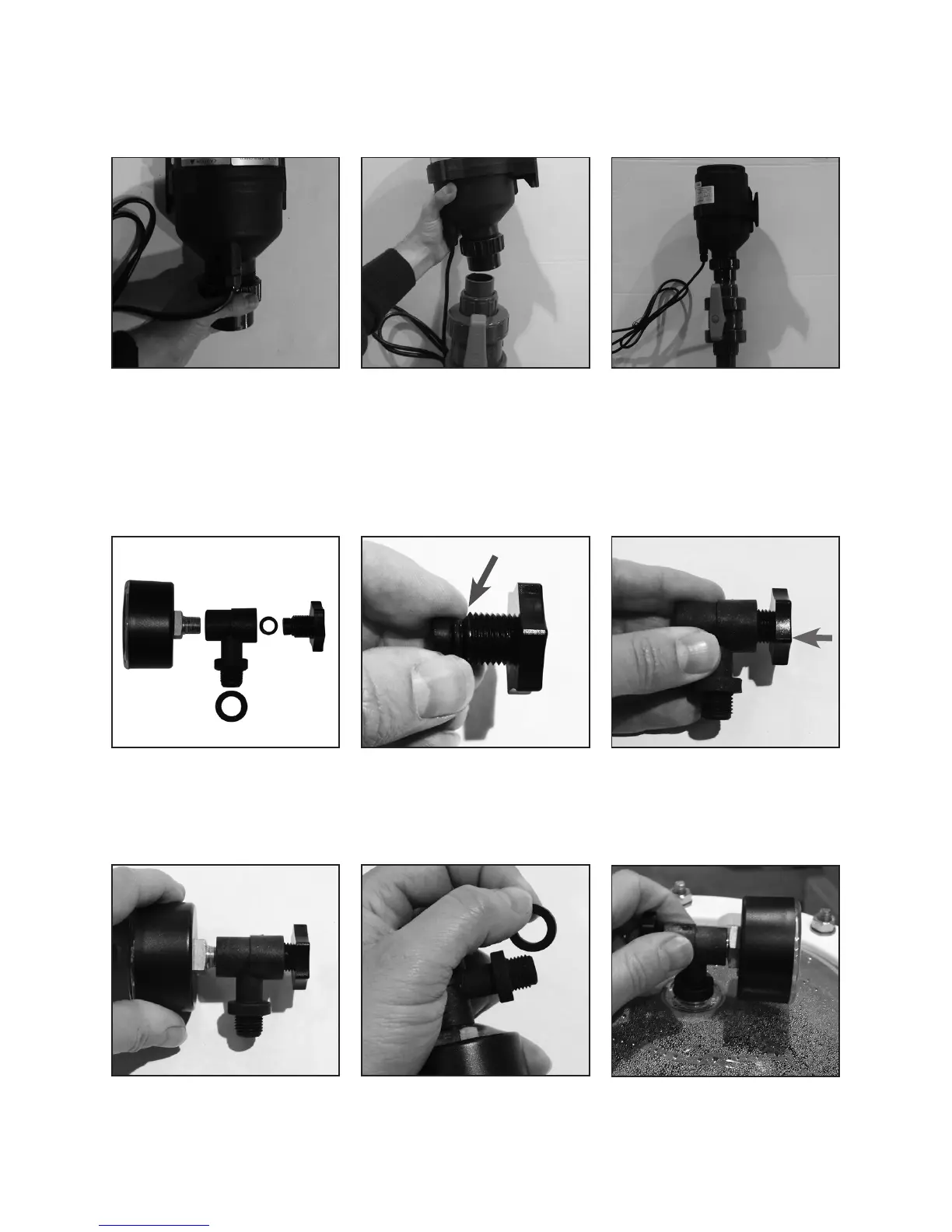

FITTING THE PRESSURE GAUGE
K1 MICRO BEAD FILTER SET-UP
Take the component parts
needed to fit the pressure
gauge onto the filter lid
Screw the pressure gauge
into the smaller threaded end
on the elbow.
Fit the smallest washer
between the thread and
the plug on the valve
Fit the larger washer on the
threaded end ready to screw
into the lid.
Screw valve into the larger
female threaded end on
the elbow
Screw the pressure gauge
assembly into the lid.
DO NOT OVER TIGHTEN.
FITTING THE BLOWER (DO NOT expose blower to rain fall or water ingress)
Screw the insert and collar
onto the blower. HAND
TIGHTEN ONLY.
Glue the reducing pipe (B)
in place in the ball valve
and glue into the blower.
The assembly should look
like this.
