OPERATING INSTRUCTIONS
5
www.evolutionfury.com
PROJECT
®
DISCONNECT THE MITRE SAW AND
INSPECT YOUR SAW BEFORE EACH USE.
WARNING:
To reduce the risk of injury, always unplug
the saw before
changing or adjusting anything. Compare
the direction of rotation arrow on
the guard to direction arrow on the blade.
The blade teeth should always
point downward at the front of the saw.
Tighten the arbor screw. Tighten
the cover plate screw.
PREPARING TO MAKE THE CUT
CAUTION:
• Avoid awkward operations and hand
positions where a sudden slip could cause
fingers or hand to move into the blade.
• Cut only one workpiece at a time.
• Clear everything except the workpiece
and related support devices away from
the blade before turning the mitre saw on.
• Ensure workpeice is held securely. Use
additional clamps if required.
Body and Hand Position
1. Never place hands near cutting area
and keep hand away from the path of
blade.
2. Hold workpiece firmly to the fence to
prevent movement toward the blade.
3. Before making a cut. Make a dry run
with the power off so you can see the
path of the blade.
4. Keep hands in position until trigger
has been released and the blade has
completely stopped.
Cutting
The saw handle is pushed down to cut
through the workpiece.
1. Place the workpiece on table and against
fence and secure.
2. Grasp the saw handle.
3. Turn on saw and allow the saw to reach
full speed.
4. Press the lower guard unlock lever for
saw head release.
5. Push the saw handle down and cut the
workpiece.
6. After cut is complete turn off saw, allow
blade to completely stop.
Mitre Cut
An angle of up to 45° left or right can be
obtained using the unit.
1. Loosen the mitre angle lock.
2. Pull up the mitre angle set lever.
3. Turn the table unit to the desired angle is
indicated on the mitre angle pointer.
4. Tighten the angle lock knob to hold the
desired angle.
5. Start the saw and allow it to reach full
speed before commencing the cut.
Bevel Cut
1. Loosen the bevel angle lock.
2. Move the blade to the desired bevel
angle.
3. Stand to the left side of the handle to
make the cut.
Compound cut
When a compound cut is required. Select
the desired bevel and mitre positions.

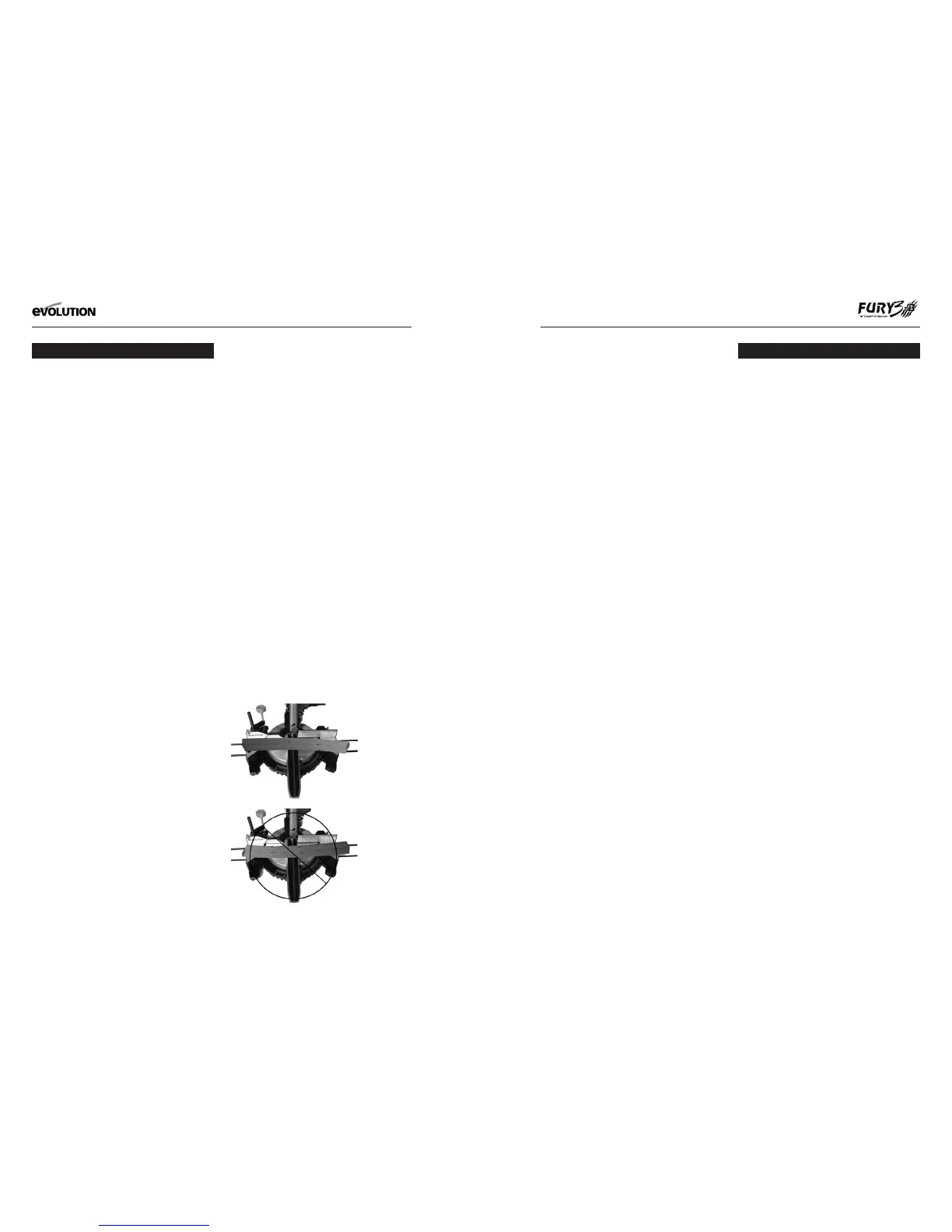

Cutting Bowed Material
Before cutting a workpiece, check to
make sure it is not bowed. If it is bowed,
the workpiece must be positioned and cut
as illustrated. Do not position workpiece
incorrectly or try to cut the workpiece
without the support of the fence. This
will cause pinching of the workpiece on
the blade. The workpiece could suddenly
jump or move and your hand could hit the
blade.
Technical Helpline UK 0870 609 2297
Technical Helpline USA 1-866-EVO-TOOL
Important
Please read these operating and safety
instructions carefully and completely. For
your own safety, before using this equipment
check that the voltage is correct and that all
handles and parts are firmly secured. If you
are uncertain about any aspect of using this
equipment, please contact our Technical
Helpline.
Fury 3 B Multi Purpose Mitre Saw
Congratulations on your purchase of an
Evolution Power
Tools Fury 3 B Mitre Saw. Please complete
and mail
your product registration card. Doing so will
validate your
machine’s warranty period and ensure prompt
service if
needed. We sincerely thank you for selecting
a product
from Evolution Power Tools.
CAUTION: IMPORTANT
SAFETY INSTRUCTIONS
To reduce the risk of electric shock, this
equipment is fitted
with an approved cord and plug for its
intended Country of
use. Do not change the plug or cord in any
way.
Fury 3 B Multi Purpose Mitre Saw
Motor (230v ~ or 110v-115v ~ 50/60 Hz)
(Watts): 1100
RPM No Load (min-1): 4000
Recommended Maximum Duty Cycle
(Minutes): 30
Weight: 6.1Kg
Blade Dimensions
Maximum Diameter: 210mm (8-1/4”)
Bore Diameter: 25.4mm (1”)
Thickness: 2mm (1/16”)
Maximum Wood Cutting Capacity
Mitre Bevel Max Width of Cut Max Depth
of Cut
90º 90° 120mm 50mm
45°L / 45°R 45° 80mm 30mm
Optimum Cutting Thickness (Mild Steel
Plate): 3mm (1/8”)
Standard Equipment Supplied With Unit:
1 MultiBlade, 1 Box Spanner, 1 Operating
Instructions.
SPECIFICATIONS
2
www.evolutionfury.com
