1. CUTTING HANDLE
2. BLADE GUARD LOCKING TRIGGER
3. DUST BAG*
4. SLIDE LOCKING SCREW
5. DEPTH GAUGE
6. 2 PC HOLD DOWN CLAMP
7. SLIDING FENCE
8. MACHINE TABLE EXTENSIONS
9. MOUNTING HOLE (X4)
10. BLADE ROTATION INDICATION ARROW
11. LASER*
12. CARBON BRUSHES
13. UPPER BLADE GUARD
14. CUTTING HEAD
15. BLADE
16. LOWER BLADE GUARD
17. BEVEL ANGLE SCALE
18. TABLE TOP
19. ROTARY TABLE
20. TABLE INSERT
21. MITRE HANDLE LOCKING KNOB
22. POSITIVE STOP LOCKING LEVER
23. MITRE ANGLE SCALE
24. DUST PORT ADAPTER*
25. 3 PIECE HOLD DOWN CLAMP*

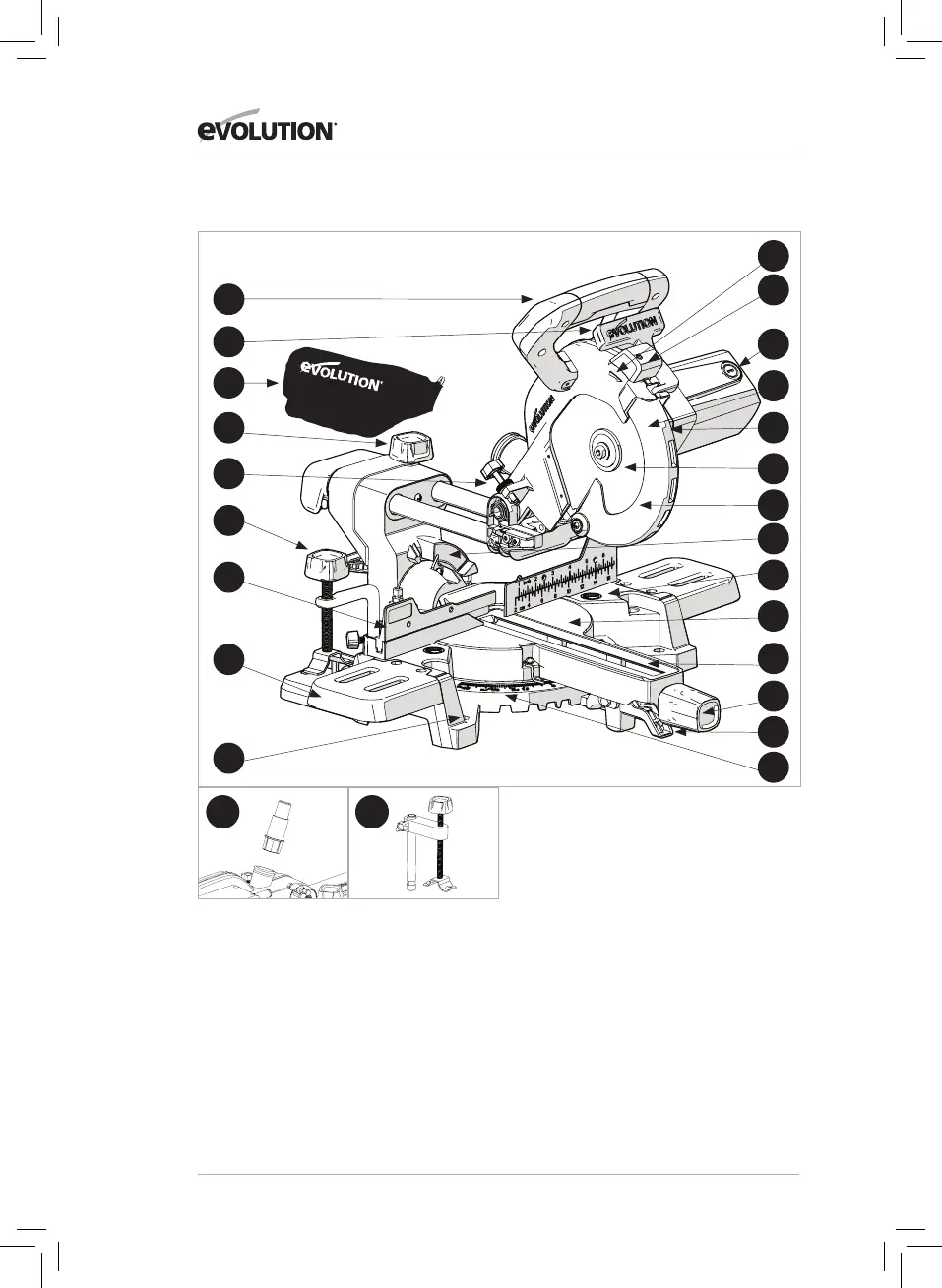

MACHINE OVERVIEW
*Available separately. Supplied as original equipment on the R185SMS+.
19
20
23
2524
21
22
11
12
13
10
14
1
3
4
6
8
9
7
2
15
16
17
18
Pictured: R185SMS
5
14
