1. CUTTING HANDLE
2. LASER GUIDE ON / OFF SWITCH
3. REAR CARRY HANDLE*
4. TRENCH STOP
5. QUICK RELEASE HOLD DOWN CLAMP*
6. SLIDING FENCE
7. HEX KEY STORAGE
8. MACHINE TABLE EXTENSIONS
9. FRONT CLAMP HOLES
10. MOUNTING HOLE (X4)
11. BLADE GUARD LOCKING TRIGGER
†
12. BLADE ROTATION INDICATION ARROW
13. UPPER BLADE GUARD
14. CUTTING HEAD
15. BLADE
16. LOWER BLADE GUARD
17. TABLE TOP
18. ROTARY TABLE
19. FRONT CLAMP*
†
20. TABLE INSERT
21. MITRE HANDLE LOCKING KNOB
22. POSITIVE STOP LOCKING LEVER
23. MITRE ANGLE SCALE
24. CABLE GRIP COMPONENT
‡
(FITTED TO THE REAR CABLE GUIDE CLAMP)
25. DUSTPORT ADAPTER*
26. STANDARD HOLD DOWN CLAMP
27. DUST BAG*
28. ARBOR COVER
◊

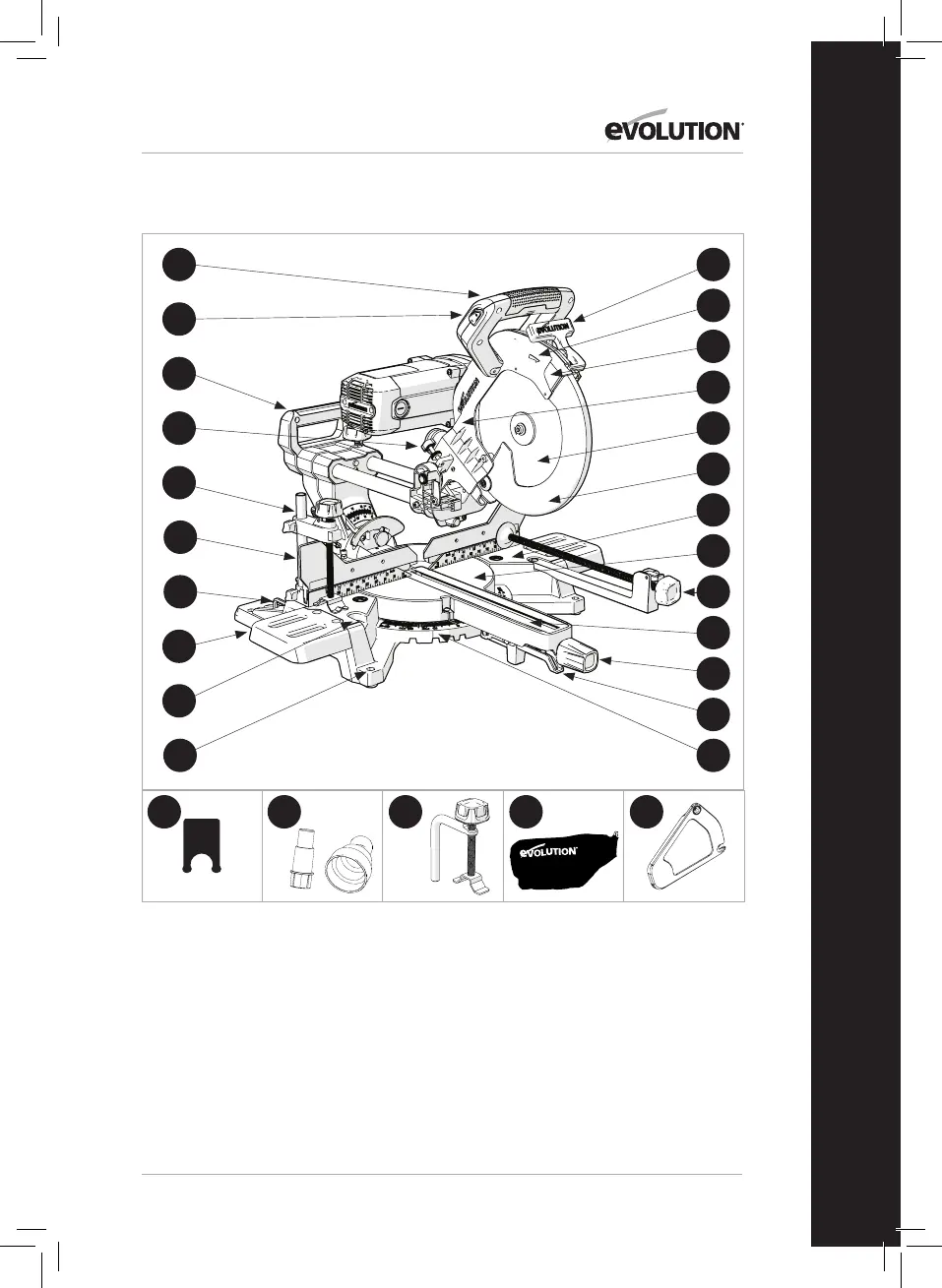

MACHINE OVERVIEW
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24 26 27 2825
*Supplied as original equipment on the R255SMS-DB+.
◊
North American models only.
†
Non-North American models only.
‡
230v models only.
