To remove the front wheel fender, removing the front wheel will be
necessary. Once the front wheel is removed, there will be a total of
two securing screws, and one securing bolt.

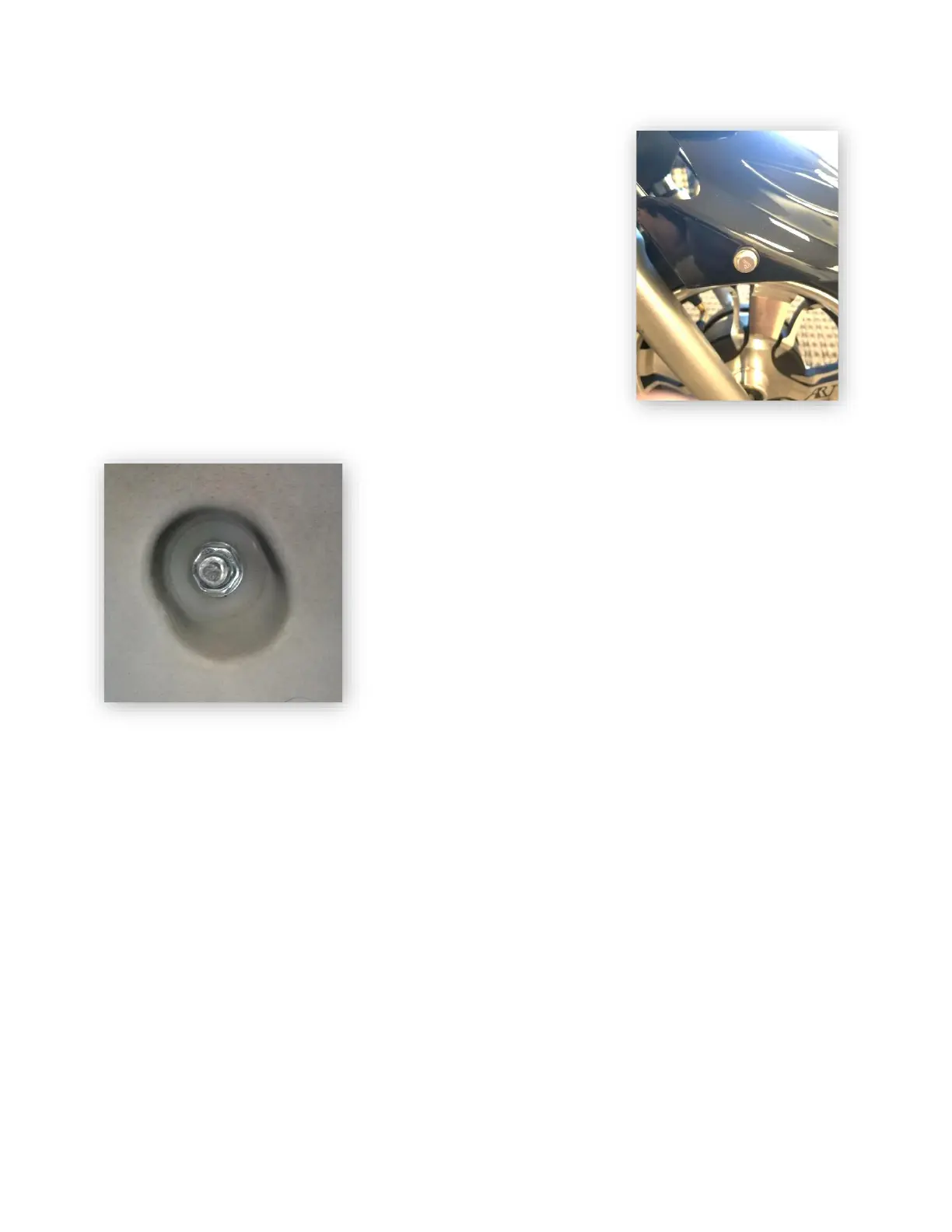

The two screws are 10MM and are located on both sides of the front
wheel fender.
The last bolt is located underneath the front wheel fender,
going upwards towards the front fork tube. The nut head as a
10MM, and the bolt is a 5MM hex head.
