To remove the main body shroud, power to the machine must be turned off via the circuit breaker, and
the seat and storage box underneath the seat need to be dismounted or unplugged. Make sure these
things are done before proceeding.
There is a total of twelve securing bolts, three wire harness connections, and one latch cable that will
need to be removed or unplugged before the main body shroud can be lifted off the scooter.

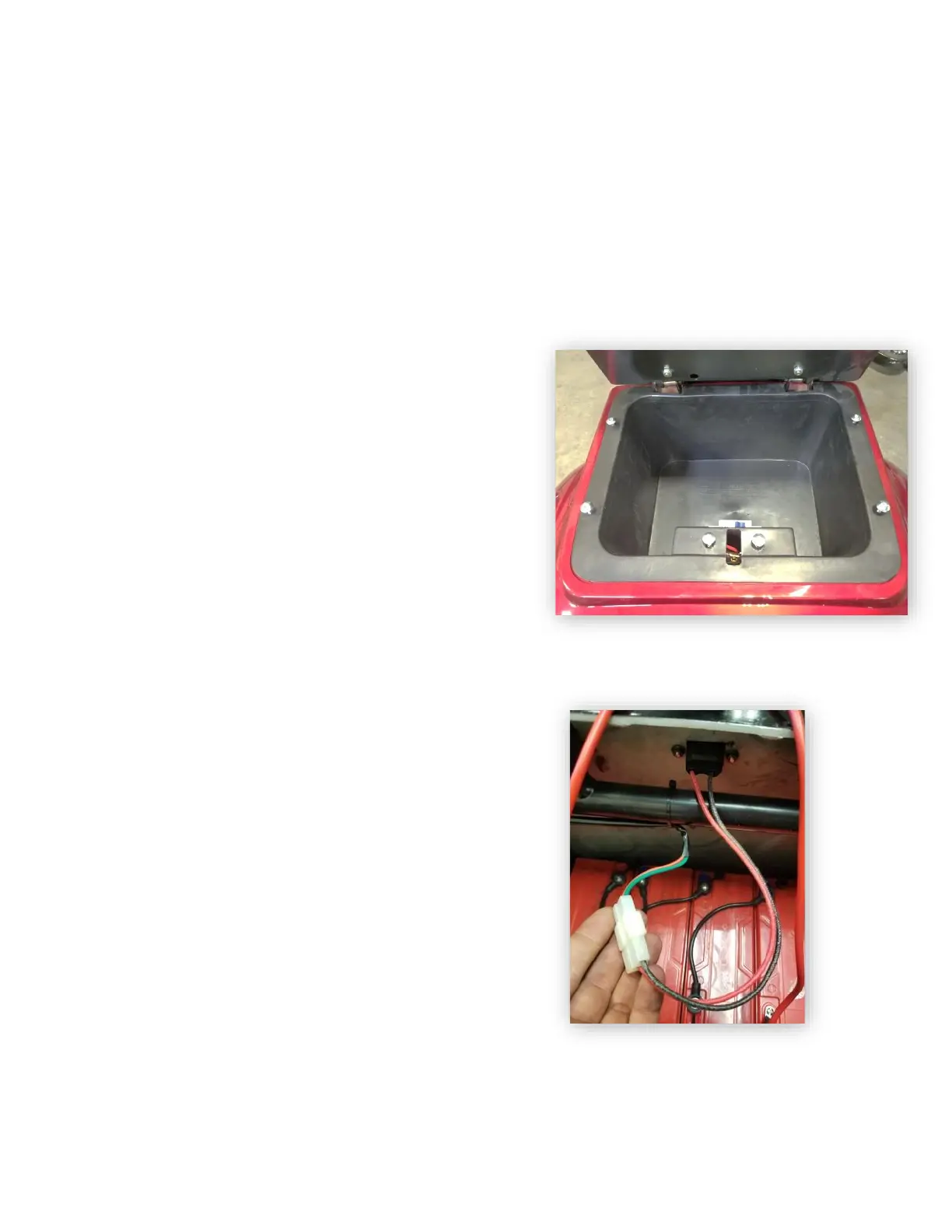

There is a total of six 5MM hex head screws that connect
the storage box to the frame of the machine. Removing
these six screws will allow for the storage box to be pulled
straight up and out. If the box is catching on the body
shroud when pulling upwards, push the side of the
storage box wall inwards on the side that has the circuit
breaker mounted. This will allow for the circuit breaker
mounting screws to clear the body shroud. The seat does
not have to be removed to be able to remove the storage
box but can be removed to open the workspace.
Unplugging the wire harness connection for the charger
port. It is a clip style connector.
