Excell 150S User Manual

040112XX
EXCELL PRECISION CO., LTD
ZSME400000005
51

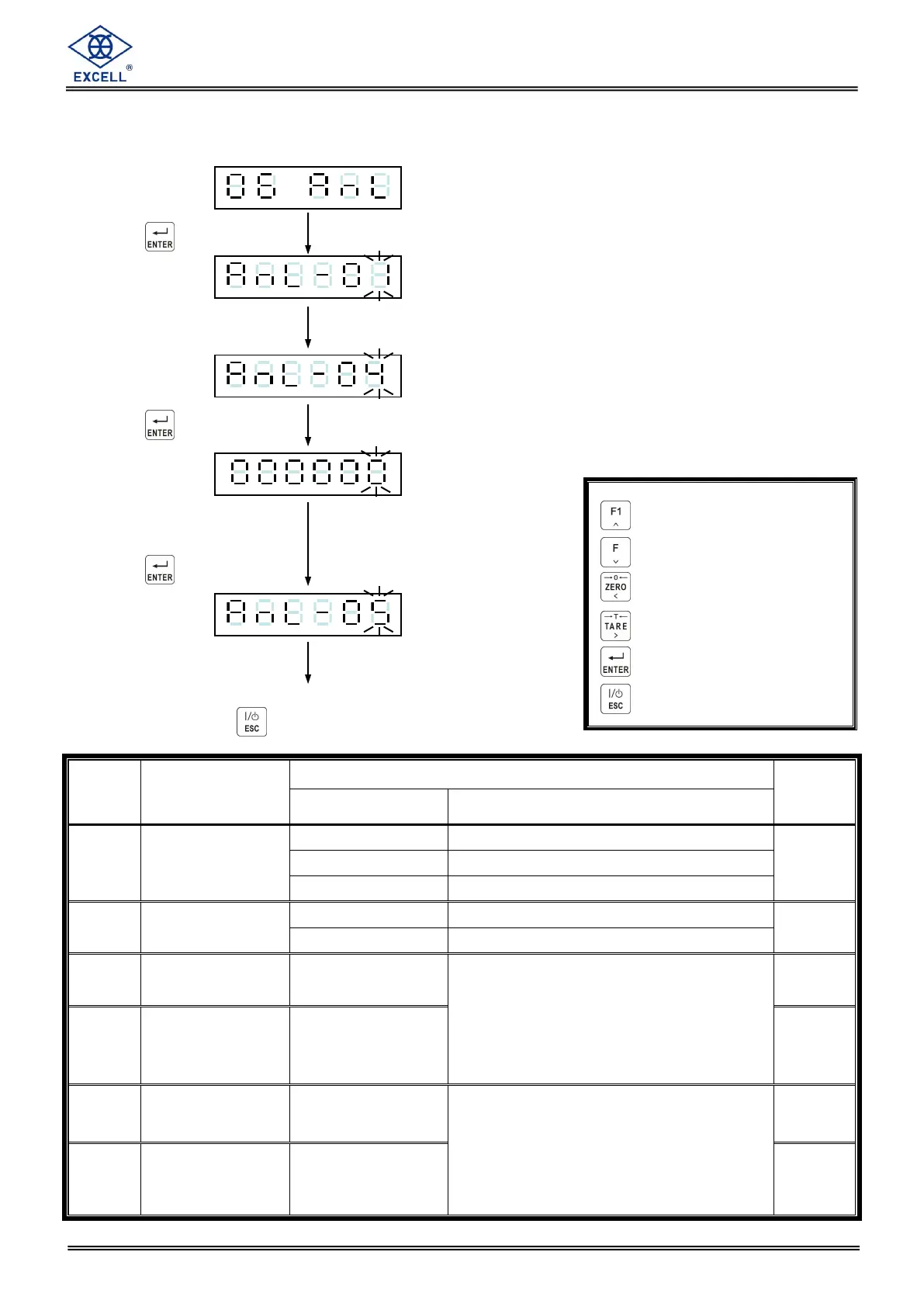

 Function setting
Press the key
Input desired
Parameter code
Press the key
Display shows the existing
parameter code. Input
new code as required.
Press the key
Continue to another function setting
or press key to escape
Item
Function
Setting value
Default
Parameter
Description
AnL- 01
Data type
0
As display
0
1
Gross
2
Net
AnL- 02
Signal output
0
Current output
0
1
Voltage output
AnL- 03
Weight in Lo
000000 ~ 999999
When the weight reaches the value of
that in AnL-03(the Max. weight is the
max setting value (refer to CSP-04 ),
the current / voltage(refer to AnL-02)
output is changed to that configured in
AnL-04
0
AnL- 04
Current / Voltage
in Lo
4.0 mA ~ 20.0 mA
or
0.0 V ~ 10.0 V
4.0
AnL- 05
Weight in Hi
000000 ~ 999999
When the weight reaches the value of
that in AnL-05(the Max. weight is the
max setting value (refer to CSP-04 ),
the current / voltage(refer to AnL-02)
output is changed to that configured in
AnL-06
30000
AnL- 06
Current / Voltage
in Hi
4.0 mA ~ 20.0 mA
or
0.0 V ~ 10.0 V
20.0
 Increment flashing digit
 Decrement flashing digit
 Move flashing point left
 Move flashing point right
 Store data in memory
 Exit / Escape
