 Output signal setting

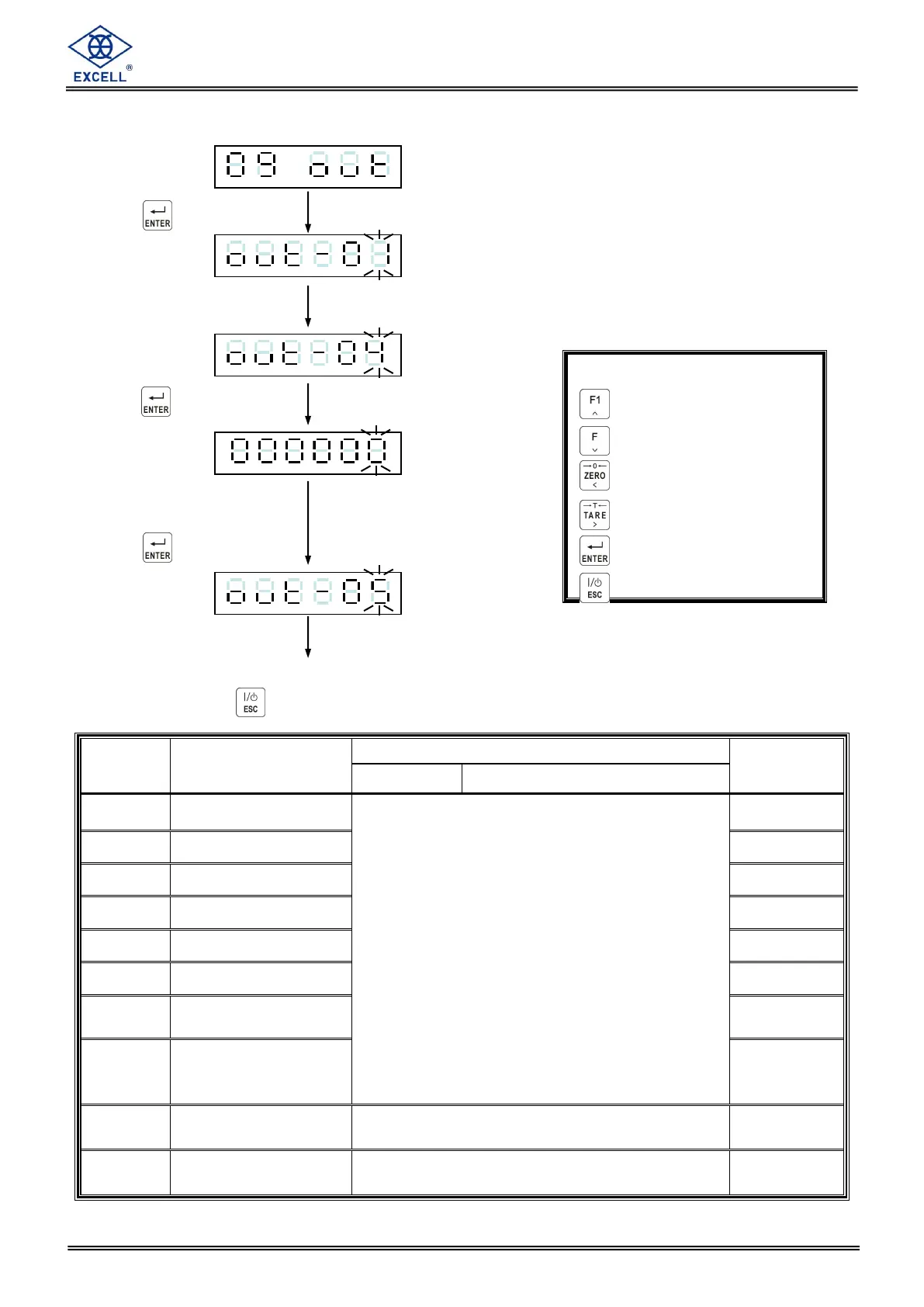

Press the key
Input desired
Parameter code
Press the key
Display shows the existing
parameter code. Input
new code as required.
Press the key
To continue another function setting
or press key to escape
Item
Function
Setting value
Default
Parameter
Description
OUT- 01
Output 1
0  None
1  Zero band
2  SP1
3  SP2
4  SP3
5  Batching completed
6  Discharge
7  Peak ready
8  Stable
9  Internal batching process running
10  Under
11  Over
12  Hi
13  OK
14  Lo
1
OUT- 02
Output 2
2
OUT- 03
Output 3
3
OUT- 04
Output 4
4
OUT- 05
Output 5
5
OUT- 06
Output 6
6
OUT- 07
Output 7
7
OUT- 08
Output 8
8
OUT-09
The output logic of
OUT-04~OUT-01
0000  positive logic
1111  negative logic
0000
OUT-10
The output logic of
OUT-08~OUT-05
0000  positive logic
1111  negative logic
0000
 Increment flashing digit
 Decrement flashing digit
 Move flashing point left
 Move flashing point right
 Store data in memory
 Exit / Escape
