3-2  RS-232 Interface Output Setting (option)
Use or key to select function  the display shows
key = Increase the flash value by one (from 0 to 8) or
selecting baud rate from 1 200, 2 400,4 800 and
9 600(default setting)
key =Confirm key
 No transmission
 Stable transmission *
 Continuous transmission *
 Press key to transmit in simple mode. *
 Press key to transmit in complete mode. *
 Stable transmission in totalizing mode.
The format is as same as *
 Reserved
 Reserved
 Press key to transmit
The format is as same as
and *
 Continuous transmission，specific format
 or transmit specific format
* : RS-232 is open
For Brazil models, if unit weight is less than 0.1d, RS232 closed.

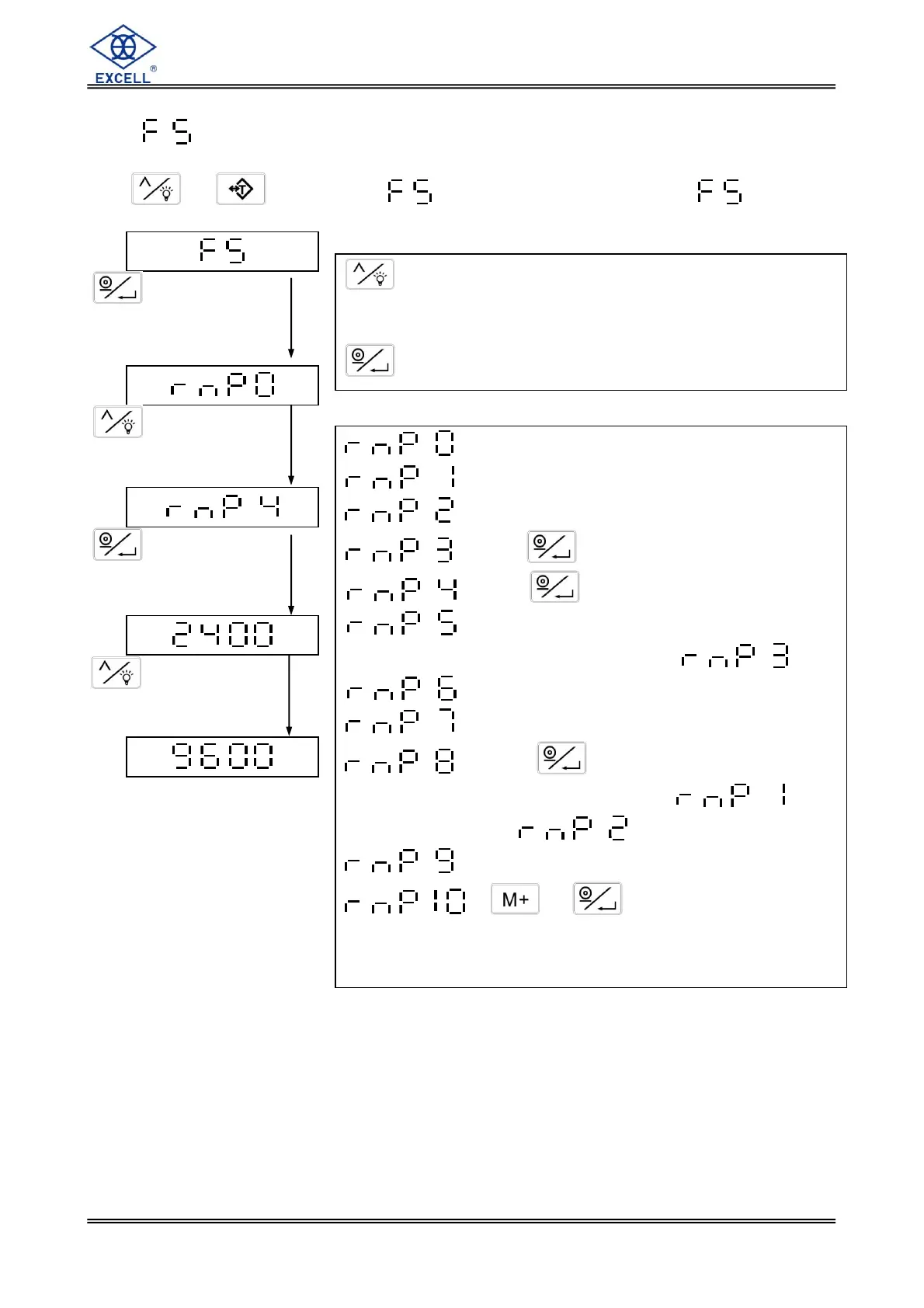

Press key
The display shows the default
setting of transmission mode
Press key
Select transmission mode
(from 0 ~ 8 )
Press key
The display shows the default
setting of RS-232 baud rate
Press key
Select RS-232 baud rate
(1 200, 2 400, 4 800,9 600)
