Exerpeutic EXERWORK 2000i - Backrest Assembly

15
ASSEMBL
Y

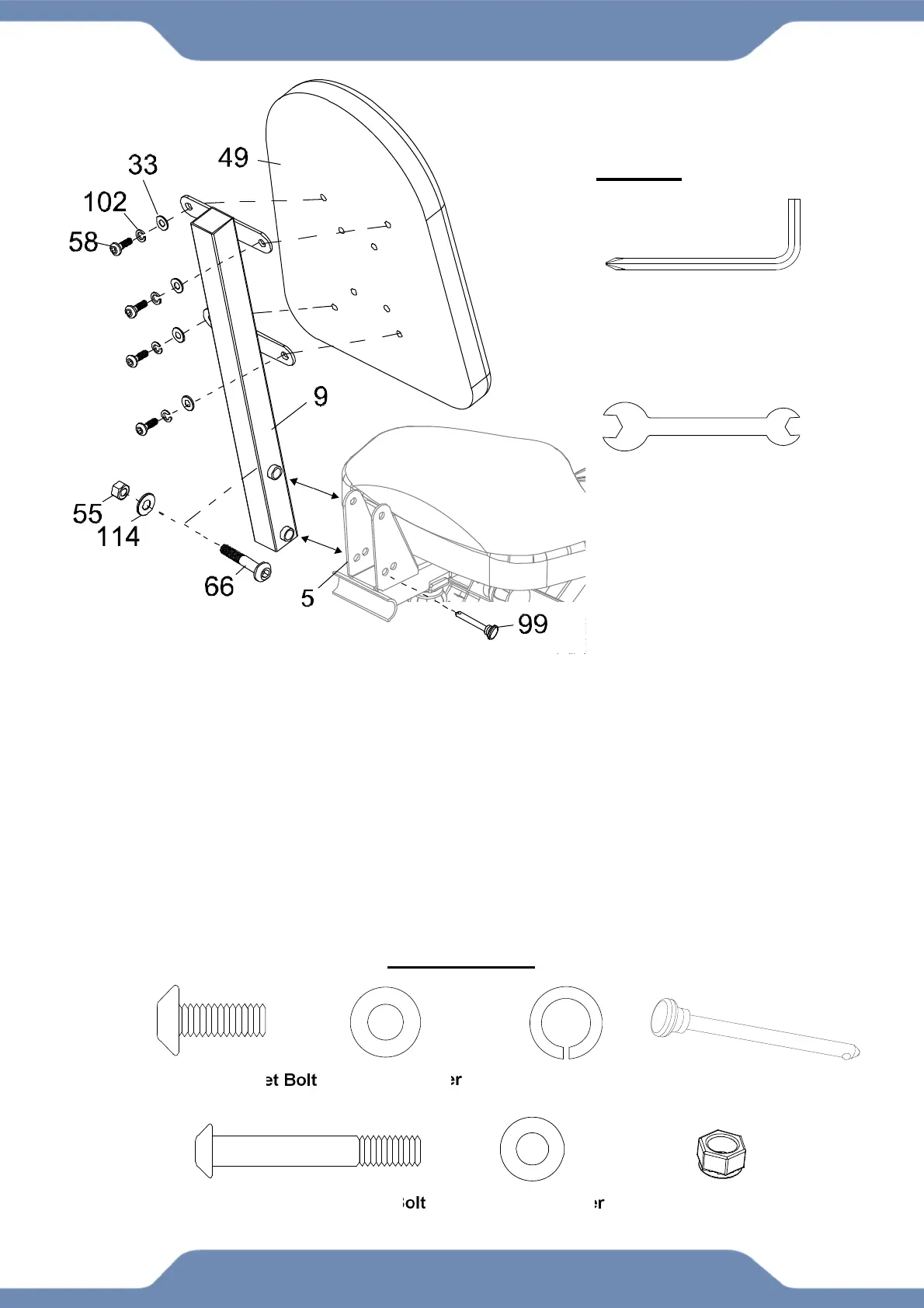

STEP 6
6A. Installing the Backrest
Attach the Backrest (49) onto the Backrest Frame (9) with four Hexagon Socket Bolts (58),
four Spring Washers (102), and four Flat Washers (33). Tighten the Hexagon Socket Bolts (58)
with the 5mm Allen Wrench with Phillips Screwdriver provided.
6B. Installing the Backrest Frame onto the Seat Bracket
Attach the Backrest Frame (9) onto the Seat Bracket (5) with one Hexagon Socket Bolt (66),
one Washer (114), and one Nylon Nut (55). Simultaneously tighten the Hexagon Socket Bolts
(66) and Nylon Nut (55) with the 5mm Allen Wrench with Phillips Screwdriver and 17-19mm
Wrench provided.
6C. Installing Pin
Lock the backrest angle by inserting the Pin (99) into the hole on the Seat Bracket (5) and
Backrest Frame (9).
(58) Hexagon Socket Bolt
4 PCS
(33) Flat Washer
4 PCS
(102) Spring Washer
4 PCS
(66) Hexagon Socket Bolt
1 PC
(114) Flat Washer
1 PC
(55) Nylon Nut
1 PC
HARDWARE
(99) Safety Pin
1PC
5mm Allen Wrench
With Phillips Screwdriver
1 PC
TOOLS
17-19 mm Wrench 1 PC
