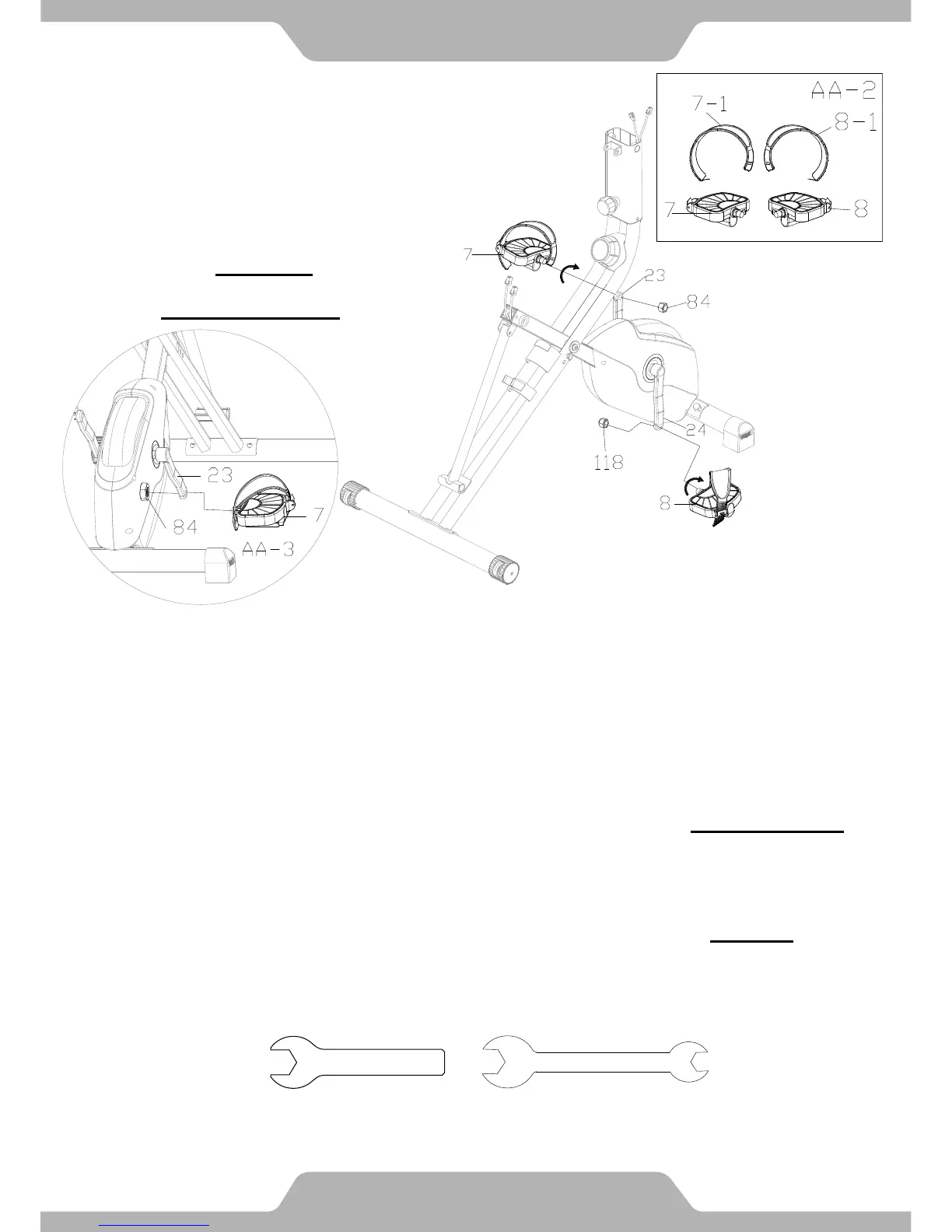

Step 2. Left and Right Pedal and Pedal Strap Installation
The Cranks, Pedals, Pedal Shafts and Pedal Straps are marked “R” for Right and
“L” for Left.
Install the Left and Right Pedal Straps (7-1, 8-1) on to the Left and Right Pedals (7, 8). (see
Fig.AA-2).
Remove the Left Nylon Nut (84) from the Left Pedal (7). Insert the Left Pedal (7) into the
threaded hole in the Left Crank (23). Turn the Left Pedal shaft by hand in a counter-clockwise
direction until snug. Then simultaneously tighten the Left Pedal (7) using the Wrench 13-15mm
Wrench and the Left Nylon Nut (84) with the Wrench 19mm provided. (see Fig. AA-3).
Remove the Right Nylon Nut (118) from the Right Pedal (8). Insert the Right Pedal (8) into the
threaded hole in the Right Crank (24).Turn the Right Pedal shaft by hand in a clockwise
direction until snug.Then simultaneously tighten the Right Pedal (8) with the 13-15mm Wrench,
and the Right Nylon Nut (118) with the 19mm Wrench provided.
Important:
Make sure the right pedal matches up with
the right crank and the left pedal matches up
with the left crank. If reversed the cranks
may become damaged or stripped.
Important:
Screw the Right Pedal (8) into the Right
Crank (24) in a clockwise direction.
Screw the Left Pedal (7) into the Left Crank
(23) in a counter-clockwise direction.
Tool
13-15mm Wrench
19mm Wrench
The Cranks, Pedal Straps,
Pedal Shafts, and Foot
Pedals are marked “R” for
Right and “L” for Left.
10
ASSEMBLY
