5mm Allen Wrench
With Phillips Screwdriver
13-15mm Wrench

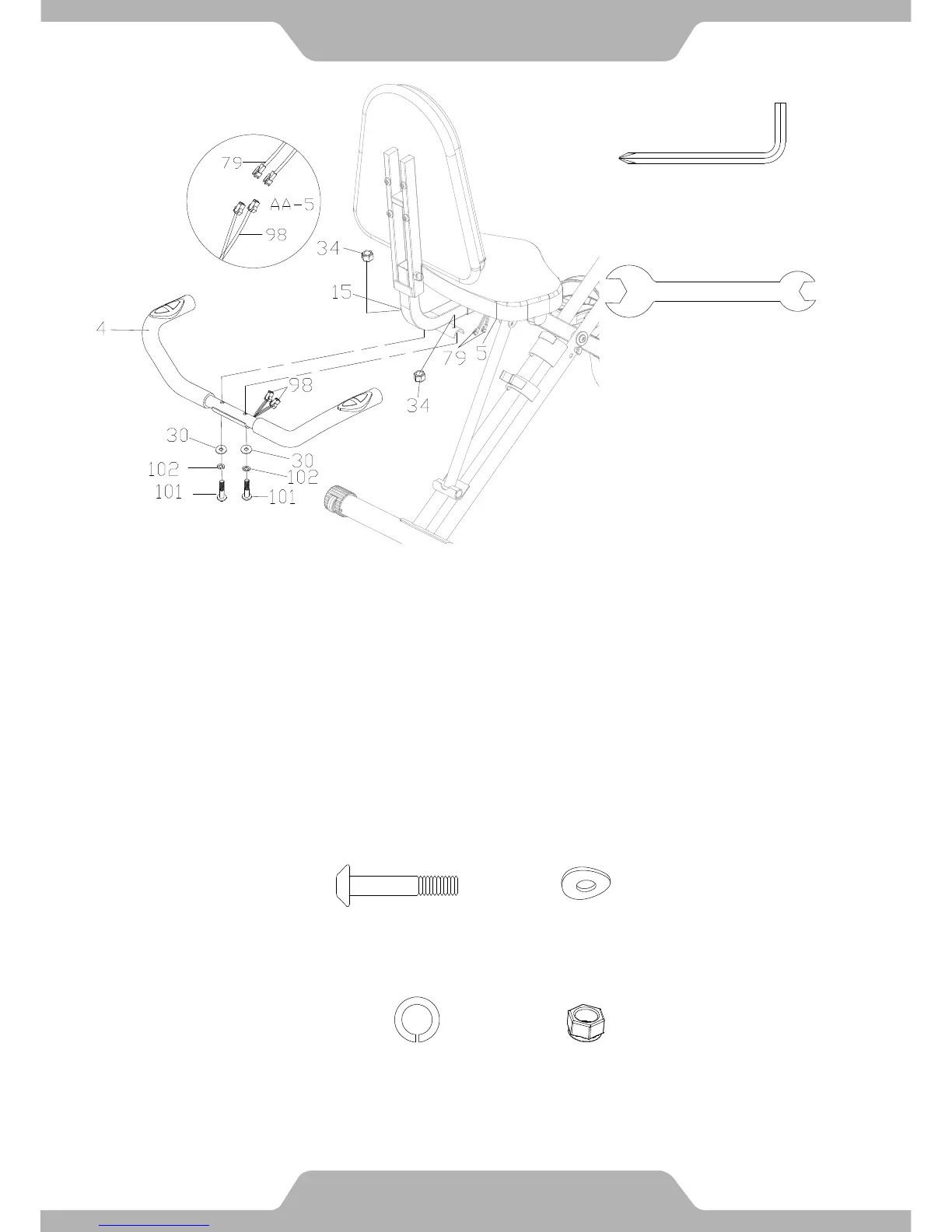

Step 5. Handlebar Installation
Attach the Handlebar (4) onto the Rear Supporting Tube (15) using, two Curve Washers
(30), two Spring Washers (102), and two Carriage Bolts (101). Then tighten the bolts with
the 5mm Allen Wrench with Phillips Screwdriver provided.
Attach a Nylon Nut (34) to the threaded end of the Carriage Bolt (101). Tighten the Nylon
Nuts (34) with the 13-15mm Wrench provided.
Connect the Hand Pulse Wire (98) from the Handlebar (4) to the Connection Wire A (79)
from the Seat Post (5) as shown in Fig. AA-5.
ASSEMBLY
13
Tool:
(101) Carriage Bolt
2PCS
(30) Curve Washer
2PCS
(102) Spring Washer
2 PCS
(34) Nylon Nut
2 PCS
Hardware:
To Next Page
