Tool:
13-15mm Wrench
5mm Allen Wrench
With Phillips Screwdriver

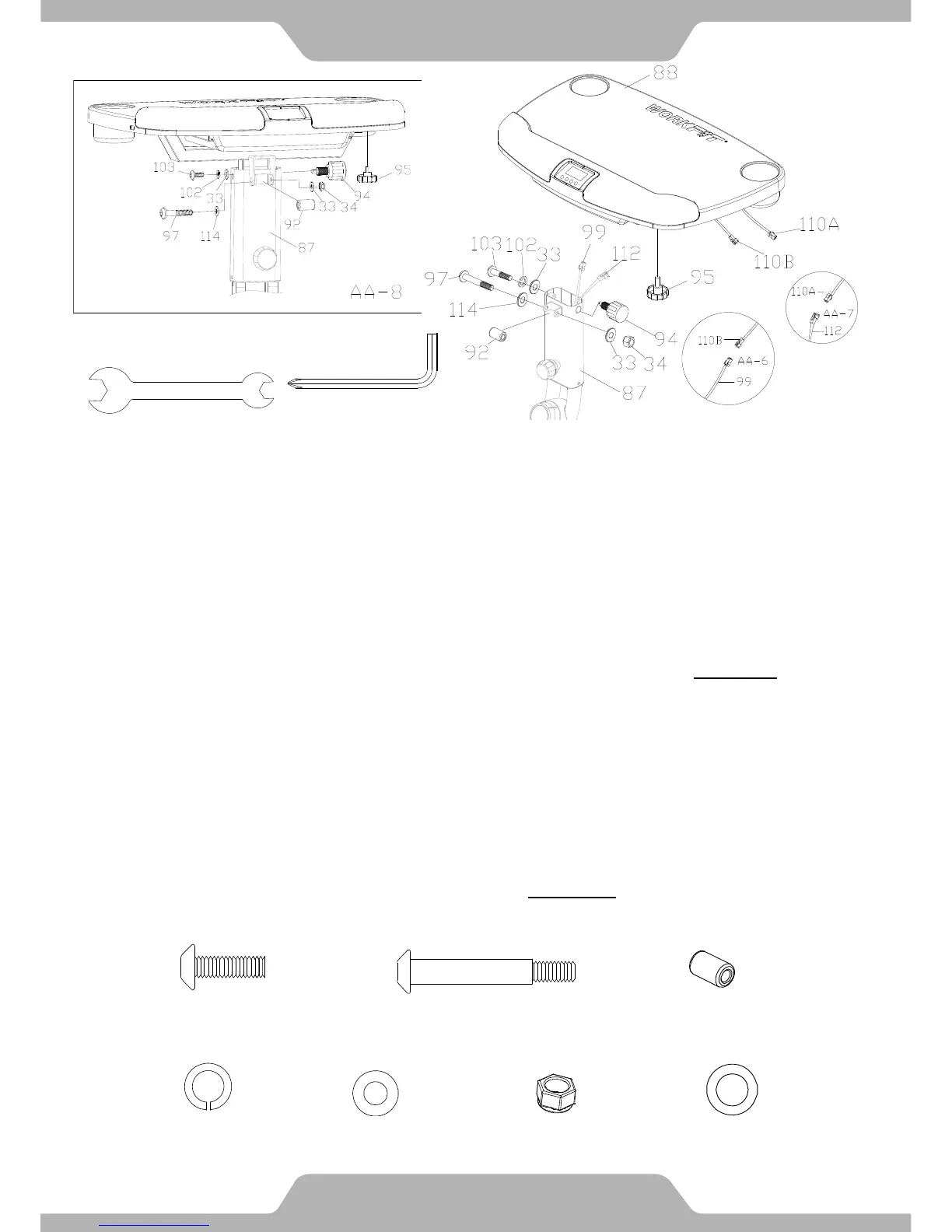

Step 6. Desk Installation
Align the bolt holes of the U shaped bracket on the underside of the Desk (88) with the holes on
the bracket at the top of the Desk Mount (87). Insert the Plastic Bushing (92) into the bracket
of the Desk Mount (87) as shown in Fig. AA-8. Attach the Desk (88), the Desk Mount (87) and
the Plastic Bushing (92) with one Flat Washer (33), one Nylon Nut (34), one Flat Washer
(114) and one Hexagon Socket Bolt (97). Simultaneously tighten the bolt and nut with the 5mm
Allen Wrench with Phillips Screwdriver and the 13-15mm Wrench provided.
Insert the Slide Knob (95) onto the underside of the Desk (88) by twisting it clockwise (as
shown in Fig. AA-8). Connect the Connection Wire B (99) from the Desk Mount (87) to the
Upper Hand Pulse Wire (110B) (see Fig. AA-6). Connnect the Console Wire (112) to the
Upper Console Wire (110A) (see Fig. AA-7).
Set the Desk (88) flat on the Desk Mount (87) and assemble the Desk (88) angle adjustment by
inserting one Hexagon Socket Bolt (103) with one Flat Washer (33) and one Spring Washer
(102) into the left side of the Desk Mount (87). Make sure the Hexagon Socket Bolt (103) goes
into the curved slot on the Bracket of the Desk (88). Tighten the bolts with the 5mm Allen
Wrench with Phillips Screwdriver provided. Insert the Pop Pin (94) into the hole on the right
side of the Desk Mount (87) and tighten it by turning it clockwise until snug.
ASSEMBLY
14
(103) Hexagon Socket Bolt
M8*25 1PC
(97) Hexagon Socket Bolt
M8*58 1PC
(102) Spring
WasherØ8.2
1 PC
(33) Flat Washer Ø8.2
2 PCS
(34) Nylon Nut M8
1 PC
(92) Plastic Bushing 1PC
(114) Flat Washer Ø10.2
1 PC
Hardware:
