Tool:
13-15mm Wrench
5mm Allen Wrench
With Phillips Screwdriver

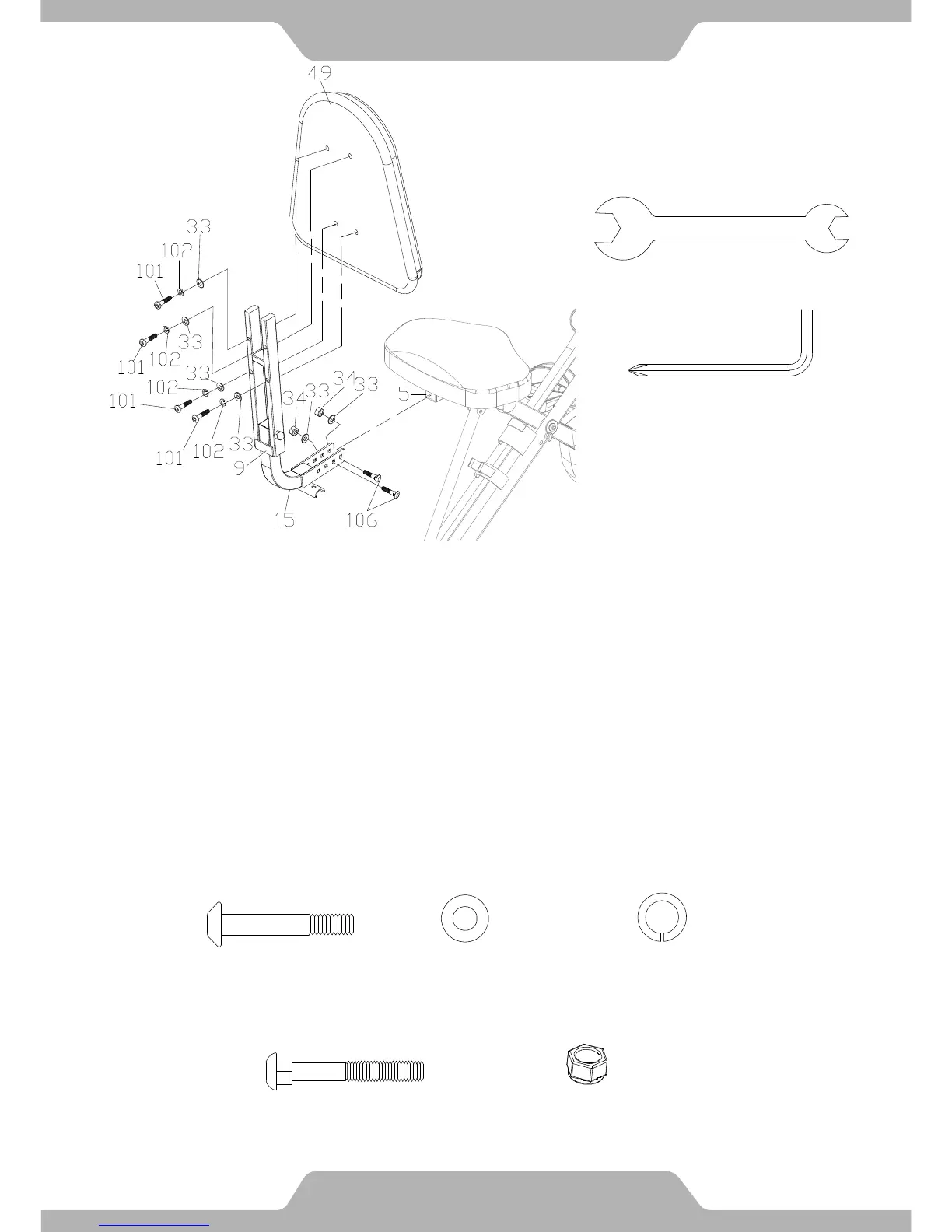

Step 4. Backrest Frame and Backrest Installation
Attach the Backrest Frame (9) onto the Seat Post (5) using the two Flat Washers (33), two
Nylon Nuts (34), and two Carriage Bolts (106). Simultaneously tighten the bolts and nuts
with the 13-15mm Wrench and the 5mm Allen Wrench with Phillips Screwdriver provided.
Attach the Backrest (49) onto the Backrest Frame (9) with the four Hexagon Socket Bolts
(101), four Flat washers (33), and four Spring Washers (102). Tighten the bolts with the
5mm Allen Wrench with Phillips Screwdriver provided.
* Refer to the Adjustments page 19 for Backrest adjustment instructions.
ASSEMBLY
12
Hardware:
(33) Flat Washer
6 PCS
(101) Carriage Bolt 4PCS
4 PCS
(102) Spring Washer
4 PCS
(106) Carriage Bolt
2PCS
(34) Nylon Nut
2 PCS
