Exerpeutic WorkFit - Assembly Instructions - Part 1; Machine Setup and Stabilizer Installation

Tool:
13-15mm Wrench

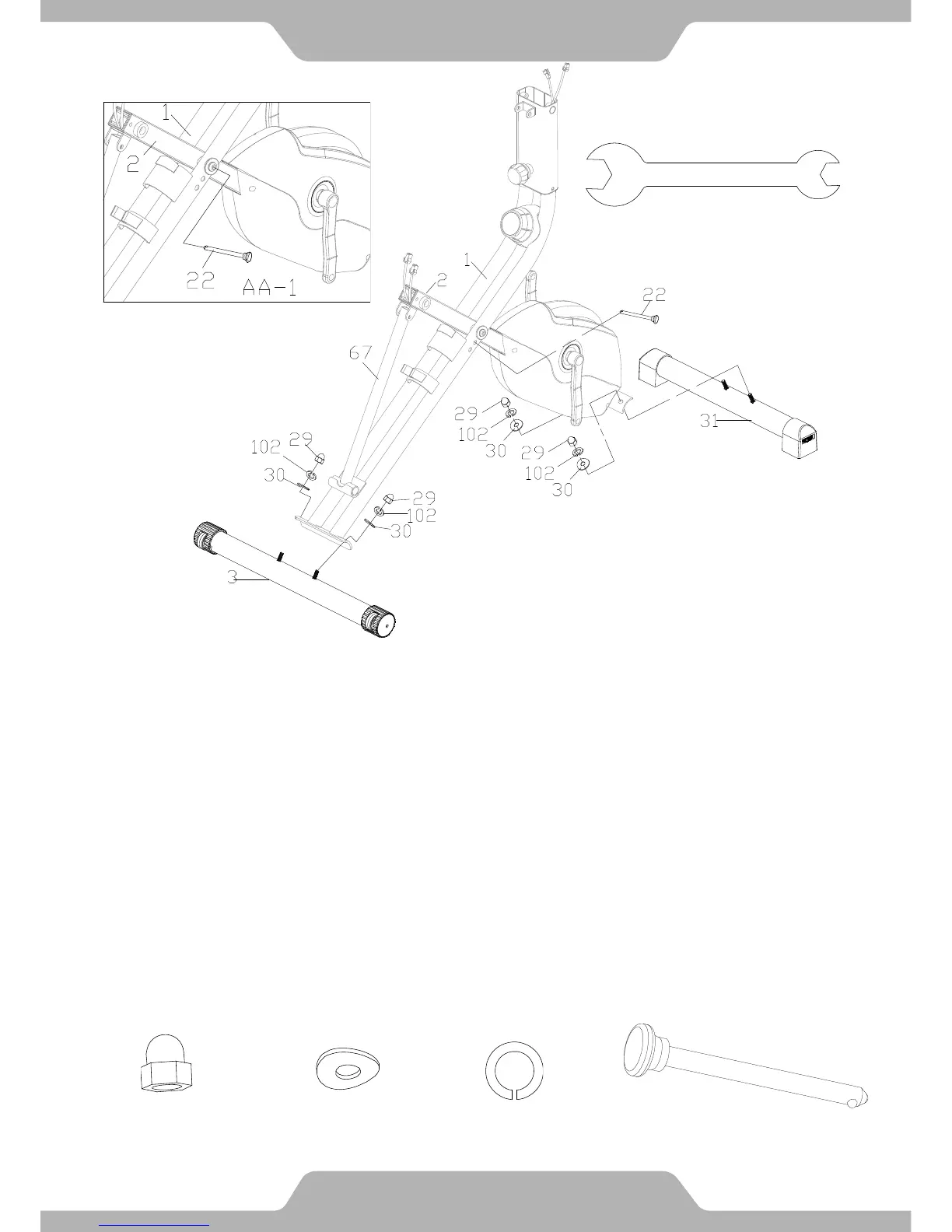

1.1 Stand Up the Machine
Extend the Front Frame (2) and the Rear Frame (1). Rest the Rear Frame Support Tube
(67) into the hooked plate on the Rear Frame (1). Align the upper pin holes at the center of
the bike and insert the Safety Pin (22) into the Front Frame (2) and the Rear Frame (1) to
lock the frames in place. (See Fig AA-1).
1.2 Front Stabilizer Installation
Attach the Front Stabilizer (31) to the Front Frame (2) with two Hexagon Cap Nuts (29), two
Spring Washers (102), and two Curve Washers (30).Then tighten the Hexagon Cap Nuts
(29) using the 13-15mm Wrench provided.
1.3 Rear Stabilizer Installation
Attach the Rear Stabilizer (3) to the Rear Frame (1) with two Hexagon Cap Nuts (29), two
Spring Washers (102), and two Curve Washers (30). Then tighten the Hexagon Cap Nuts
(29) using the 13-15mm Wrench provided.
9
ASSEMBLY
Hardware:
(29) Hexagon Cap Nut
4PCS
(102) Spring Washer
4PCS
(30) Curve Washer
4PCS
(22) Safety Pin Ø10*110L
1PC
