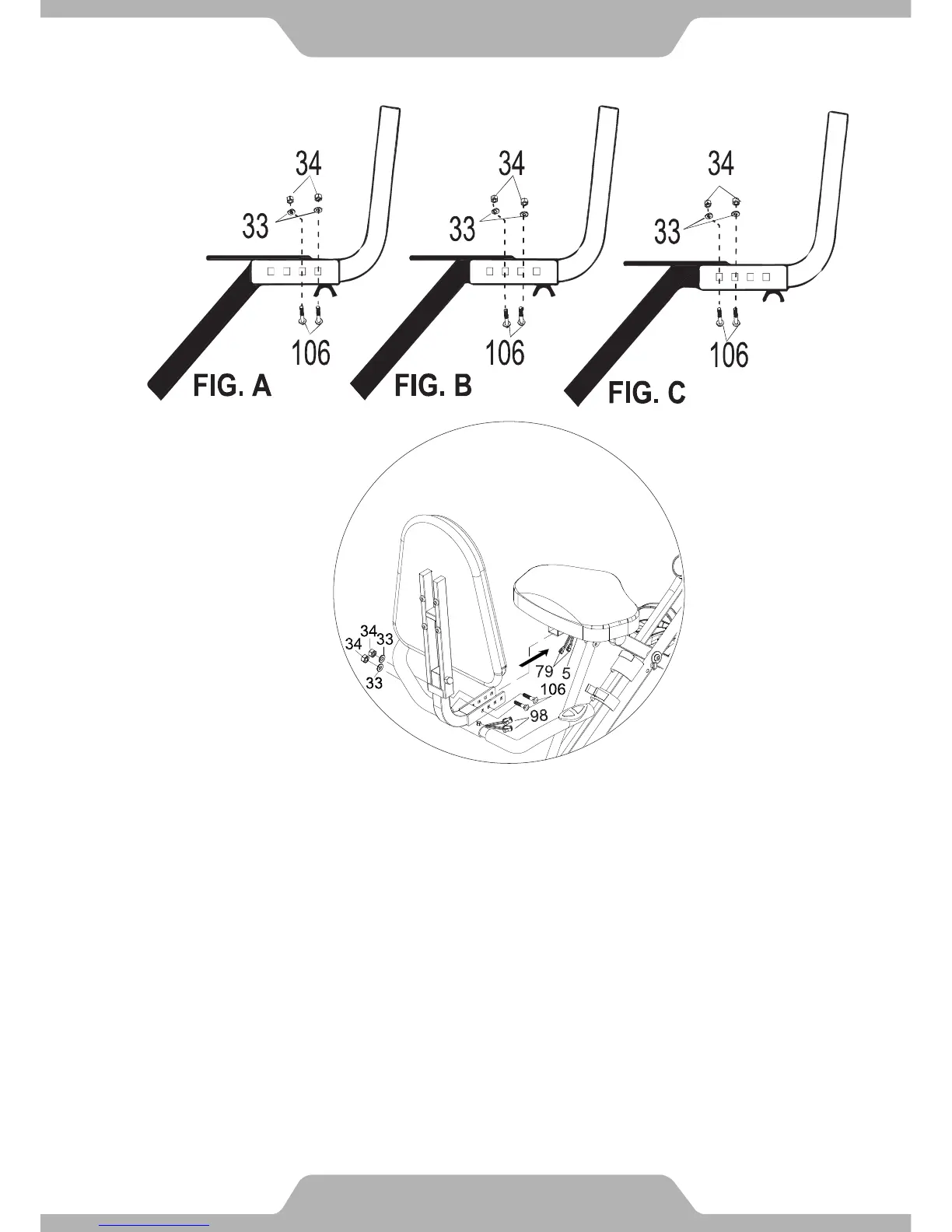

Adjusting the Backrest
The Rear Supporting Tube (15) can be adjusted between 3 different positions:
1. Users between the height of 5’1” and 5’3” may want to use position 1, as
shown in FIG. A.
2. Users between the height of 5’4” to 5’11” may want to use position 2 as
shown in FIG. B.
3. Users between the height of 6’ to 6’3” may want to use position 3 as shown in
FIG. C.
Carefully disconnect the Connection Wires (79) from the Hand Pulse Wires
(98).Once a position is selected, install the two Carriage Bolts (106), two Flat
Washers (33), and two Nylon Nuts (34). Tighten the Nylon Nuts (34) using the
13 -15 mm Wrench provided. Then reconnect the Connection Wires (79) and
Hand Pulse Wires (98).
ADJUSTMENTS
17
