3
1.6.5 Safety signs may be affixed by peeling off the backing to expose the adhesive surface.
Apply only to a clean, dry surface. Smooth to remove any air bubbles.

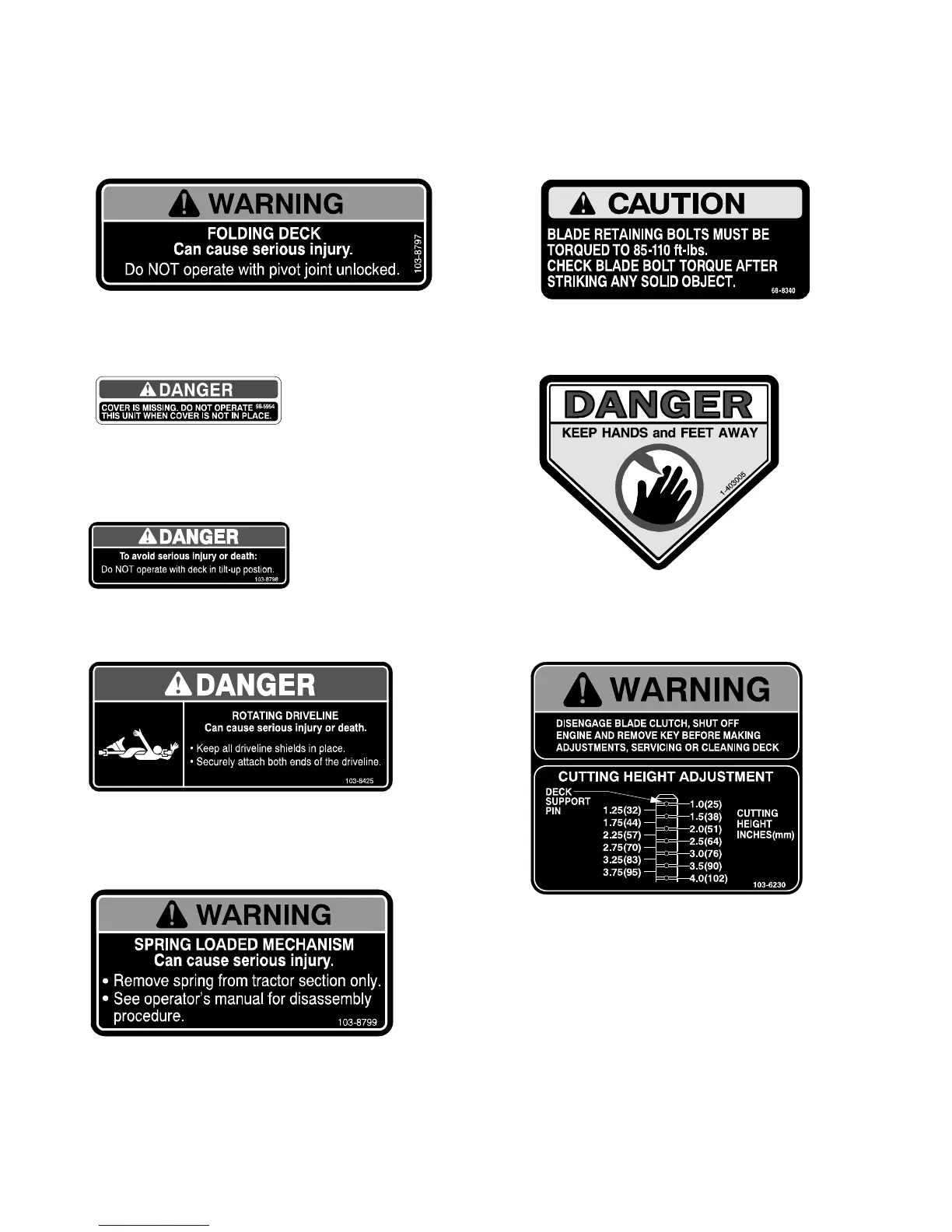

1.6.6 Familiarize yourself with the following safety signs and instruction labels. They are
critical to the safe operation of your Exmark commercial mower.
PART NO. 103-8797
LOCATION: On Top RH and LH Sides of
Front Frame
PART NO. 68-8340
LOCATION: On Top of Deck LH & RH Sides
PART NO. 98-5954
LOCATION: - On Top of Deck, Under Gear Box Cover
- On LH Frame, Under PTO Shield
- On RH Lower Frame, behind fuel tank
PART NO. 1-403005
LOCATION: On Top of Mower Deck
LH & RH Sides
PART NO. 103-6230
LOCATION: On Top of Deck,
Centered on Each Side
PART NO. 103-8798
LOCATION: Front RH Surface of Front Frame
PART NO. 103-8425
LOCATION: - On Driveshaft
PART NO. 103-8799
LOCATION: On Top of Front Frame, Near Deck
Springs
