Exmark LAZER Z CT Operator And Parts Manual

- 16 -

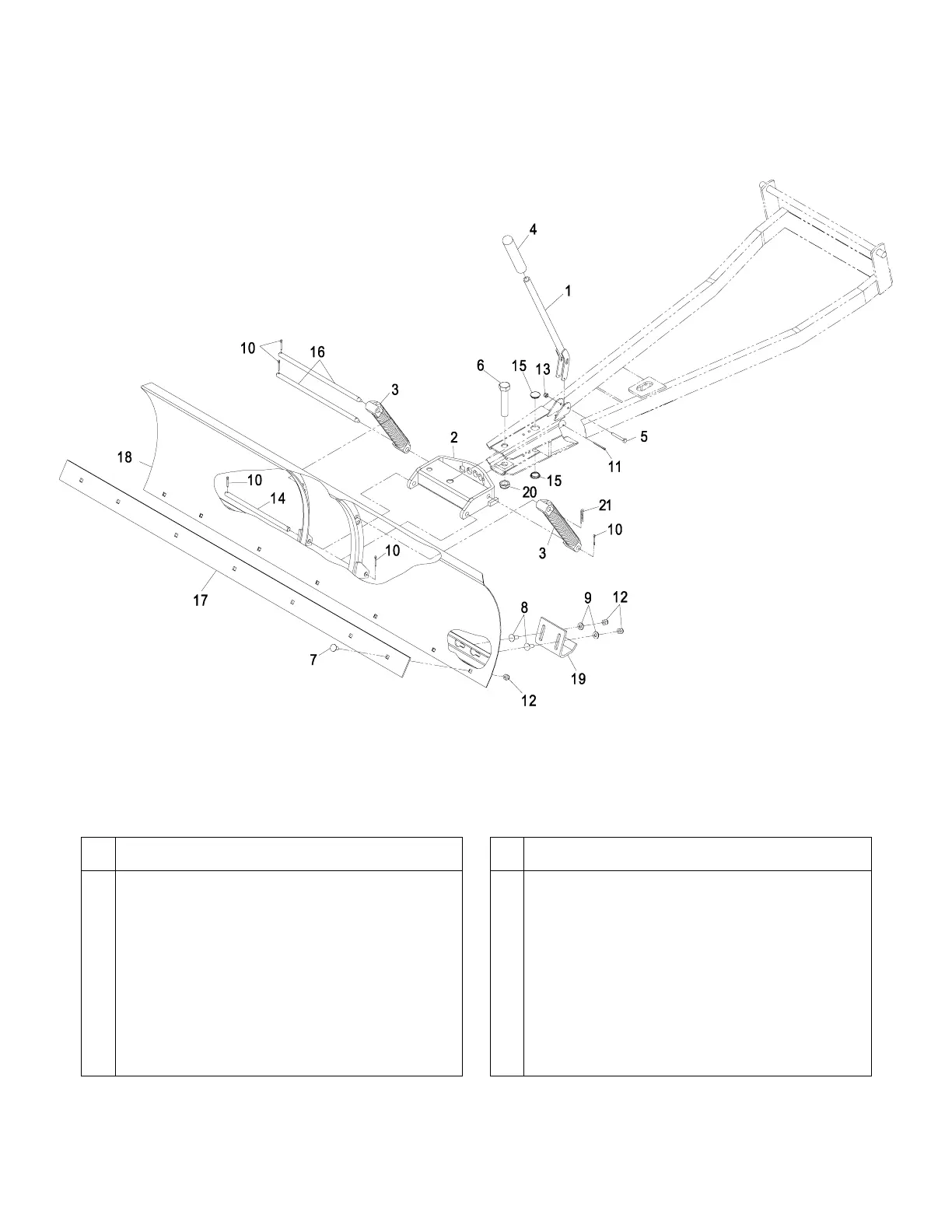

6.3 BLADE ASSEMBLY
Item Part No. Description Qty.
1 99-7787-03 Wld, Index Lever....................................1
2 104-8053-03 Wld, Index..............................................1
3 105-1386-03 Asm, Lug/Spring....................................2
4 105-1904 Grip, Snow Blade Handle.......................1
5 321-11 Screw, HH 1/4-20 x 2.............................1
6 3216-7 Screw, HH 3/4-16 x 3 3/4.......................1
7 3231-1 Bolt, Carriage 3/8-16 x 3/4 .....................7
8 3231-2 Bolt, Carriage 3/8-16 x 3/4 .....................4
9 3256-24 Washer, 3/8 SAE ...................................4
10 3272-11 Pin, Cotter 1/8 x 1 ..................................5
11 3272-13 Pin, Cotter 1/8 x 1 1/2 ............................1
Item Part No. Description Qty.
12 3296-39 Nut, Nyloc 3/8-16................................... 11
13 3296-42 Nut, Nyloc 1/4-20................................... 1
14 4564 Rod, Lower Pivot ...................................1
15 4944 Plug, Hole.............................................. 2
16 5120 Rod, Blade Pivot.................................... 2
17 103618-03 Plate, Blade Edge.................................. 1
18 116780-03 Wld, 56" Snow Blade............................. 1
19 117424-03 Skid ....................................................... 2
20 9156404 Nut, Hex 3/4-16 Light............................. 1
21 9335124 Hairpin, Cotter .......................................1
