- 4 -
3. ASSEMBLY INSTRUCTIONS

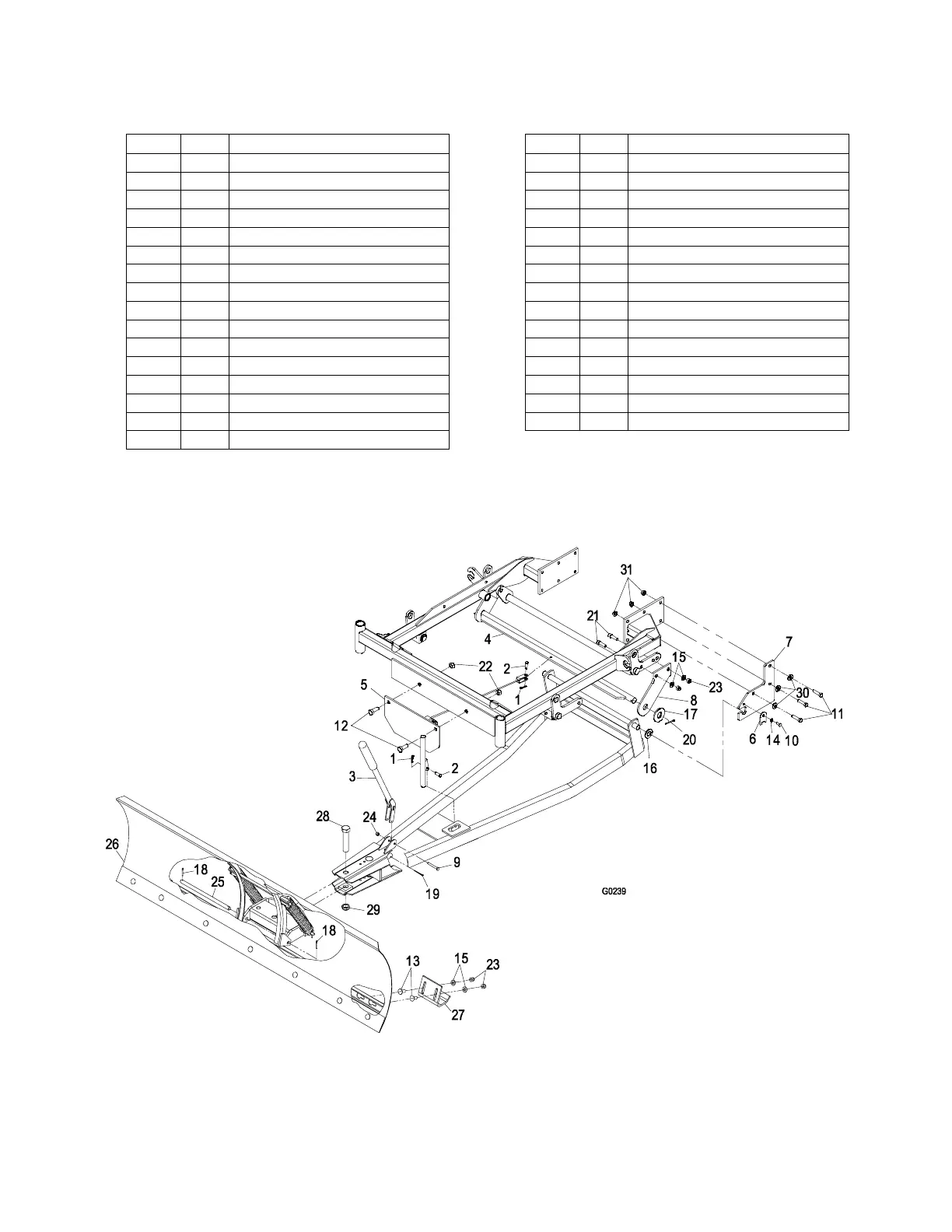

3.1 ASSEMBLY DIAGRAM
Item Qty Description
1 2 Hairpin, Cotter
2 2 Pin, Clevis 5/16 x 1
3 1 Asm, Index Lever W/Grip
4 1 Wld, Lift Shaft
5 1 Asm, Pulley Plate
6 2 Plate, Stabilizer
7 2 Plate, Support
8 2 Arm, Lift
9 1 Screw, HH 1/4-20 x 2
10 2 Screw, HH 1/4-20 x 5/8
11 6 Screw, HH 3/8-16 x 1 1/2
12 2 Screw, HH 1/2-13 x 1 1/4
13 4 Bolt, Carriage 3/8-16 x 1
14 2 Washer, Lock 1/4
15 8 Washer, 3/8 SAE
16 2 Washer, 3/4 SAE
Item Qty Description
17 2 Washer, 7/8 Std
18 3 Pin, Cotter 1/8 x 1
19 1 Pin, Cotter 1/8 x 1 1/2
20 2 Pin, Cotter 5/32 x 1 1/2
21 4 Screw, SH 3/8-16 x 1 1/4
22 2 Nut, Nyloc 1/2-13
23 8 Nut, Nyloc 3/8-16
24 1 Nut, Nyloc 1/4-20
25 1 Rod, Lower Pivot
26 1 Asm, 56" Snow Blade
27 2 Skid
28 1 Screw, HH 3/4-16 x 3 3/4
29 1 Nut, Hex 3/4-16 Light
30 REF Washer, Spring Disk 3/8
31 REF Nut, Whizlock 3/8-16
