Exmark METRO - Handle Height and Throttle Cable Hook-up

- 12 -

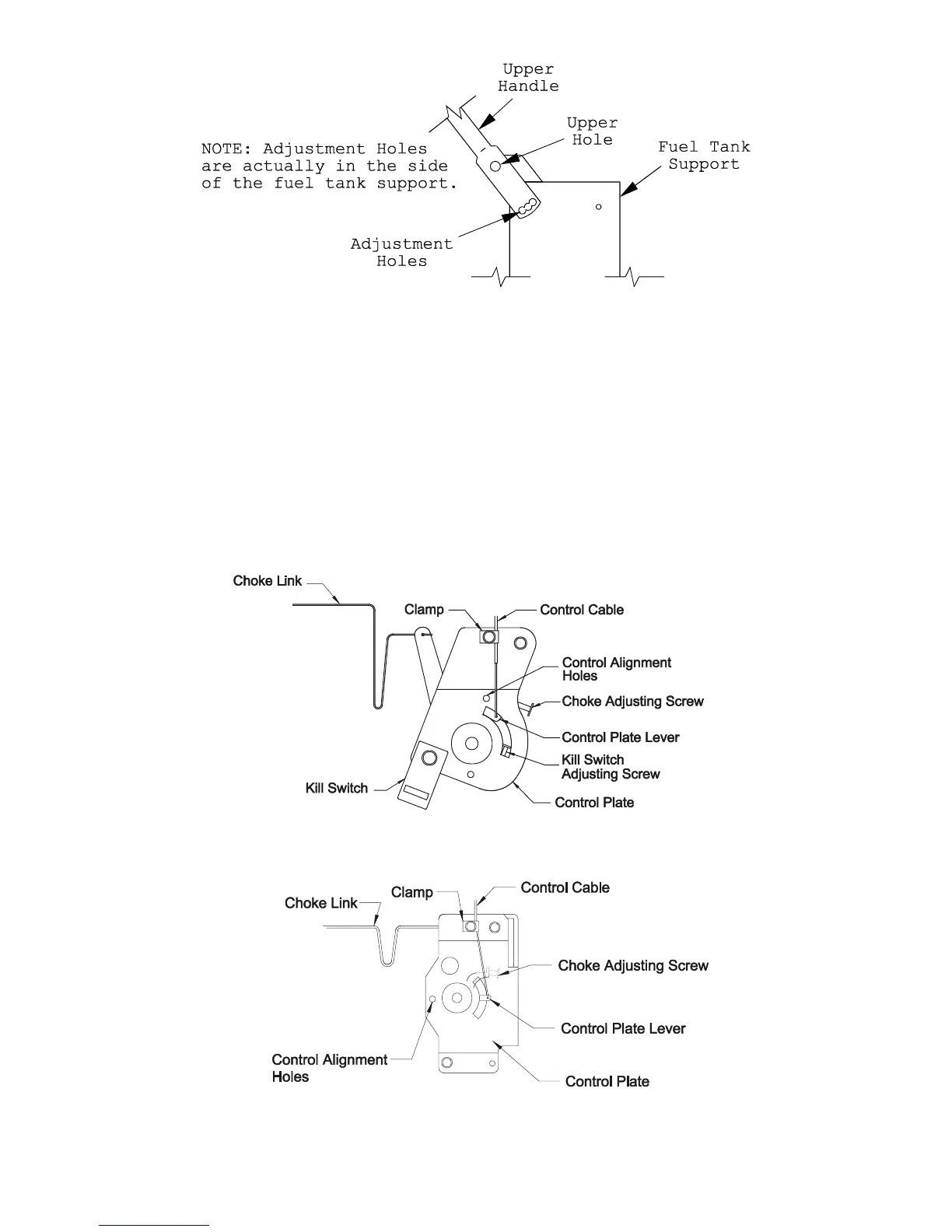

FIGURE 2
UPPER HANDLE HEIGHT ADJUSTMENT
3.9 Attach throttle cable to engine.
For Kohler and 12.5 HP Kawasaki, engines with "positive" detents in throttle
cable for both idle and full throttle positions.
a) Position the throttle control lever (on console) in the full throttle (but not choke)
position. You will feel a detent when the throttle control lever is approximately
3/4" (2 cm) from the upper end of the slot -- this is the full throttle position.
b) Route the throttle cable along the right side of the upper handle, under the fuel
tank support and to the left side of the engine.
c) Loosen clamp on engine control plate. (See Figures 3 & 4). Attach inner wire of
the throttle cable to the control plate lever and position cable under clamp, do
not tighten clamp.
FIGURE 3
KOHLER SPEED CONTROL
(THROTTLE CABLE HOOK-UP)
FIGURE 4
12.5 HP KAWASAKI SPEED CONTROL
(THROTTLE CABLE HOOK-UP)
