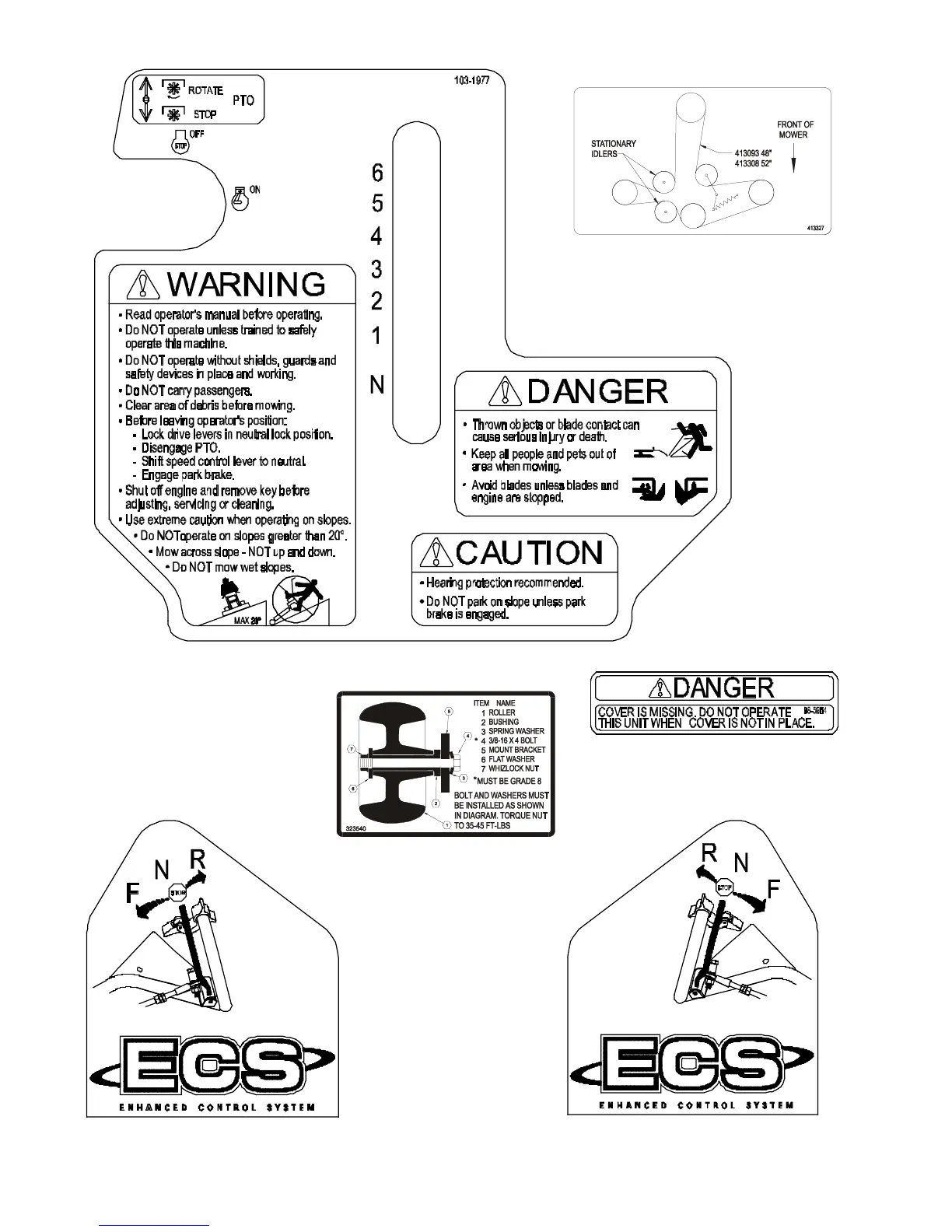

- 10 -
48” & 52” Decks
PART NO. 1-413327
LOCATION: Top Center of Cutter Deck
Under Center Belt Shield
PART NO. 1-323540
LOCATION: Front of Mower Deck
Top Surface
ECS Handles
15 & 17 HP Kawasaki Manual Start
PART NO. 103-1977
LOCATION: Console
PART NO. 98-5954
LOCATION: Under Mower Deck
Belt Shield(s)
ECS Handles
PART NO. 103-2242
LOCATION: LH Side of Console
ECS Handles
PART NO. 103-2243
LOCATION: RH Side of Console
