MANUGENEX7xx - Version 2.09

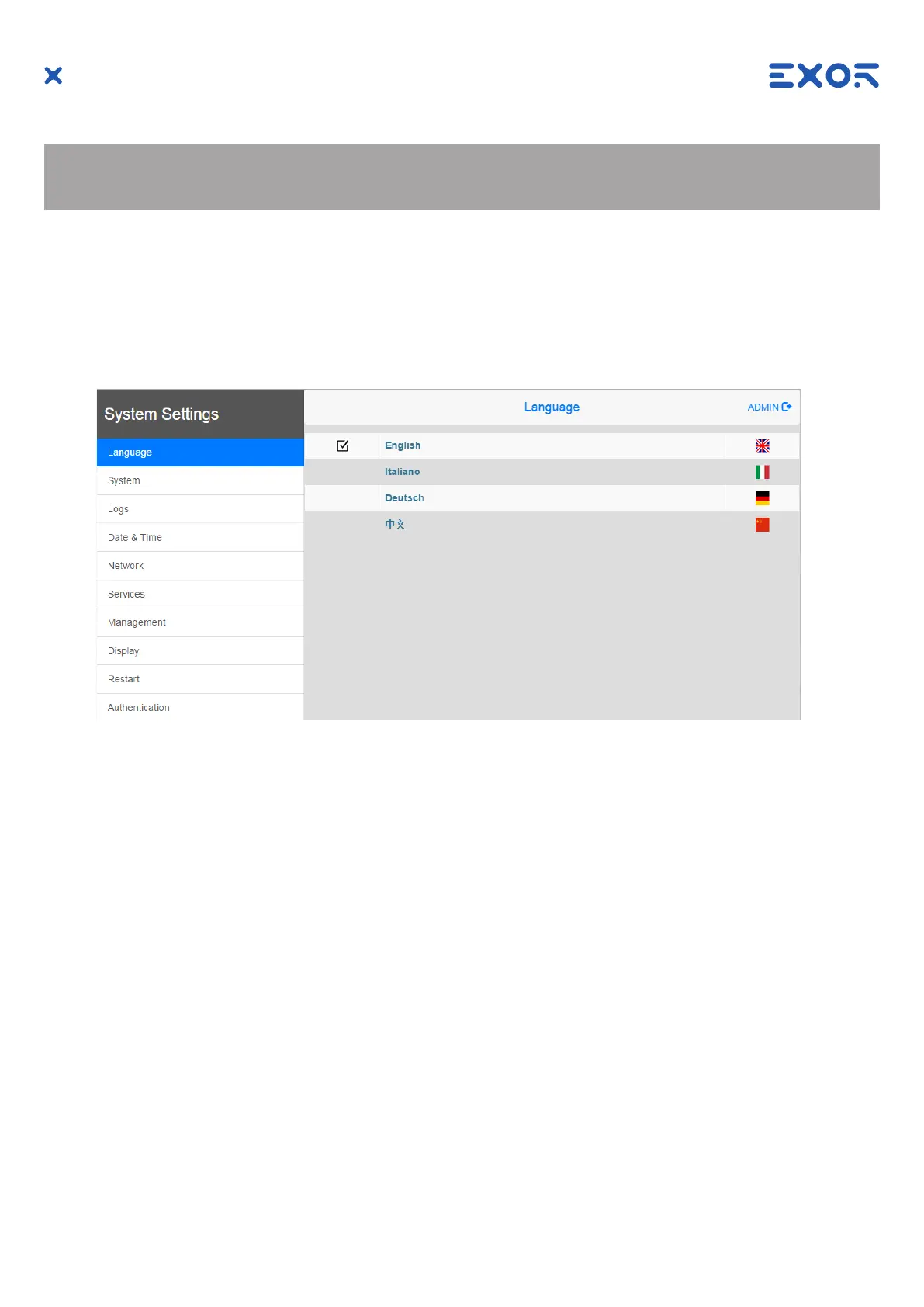

10 System Settings

eX Series 700 HMI products have a system settings interface to allow conguration of system options.

The user interface of System Settings is based on HTML pages accessible from the HMI screen or

remotely using a Web browser Chrome v44 or higher using port 443. To connect enter the address https://

IP/machine_cong where IP is the IP address of the HMI device. Default username is “admin”, default

password is “admin”. Use navigation menu on the left side of the screen to browse through the available

options.

The active item of menu is highlighted on the left side of the screen. The right side shows related

information and settings. Depending on the size of the HMI screen, both menu and content of selected item

may be shown on screen at the same time or not.

System Settings has two modes of operation:

User Mode JMobile runtime is running or the HMI device is in “factory default” status.

System Mode JMobile runtime is not running or the HMI device has a software failure.

System Mode includes all options available in User Mode and additionally includes

commands dedicated to system upgrade and recovery not available when running in

User Mode.

Activation of System Settings in User Mode:

Factory default status Press “System Setting” button on the HMI screen

JMobile runtime running Recall context menu and select “System Settings”. To recall the

context menu click and hold any unused area of the touchscreen

for a few seconds. Default hold time is 2 seconds.
