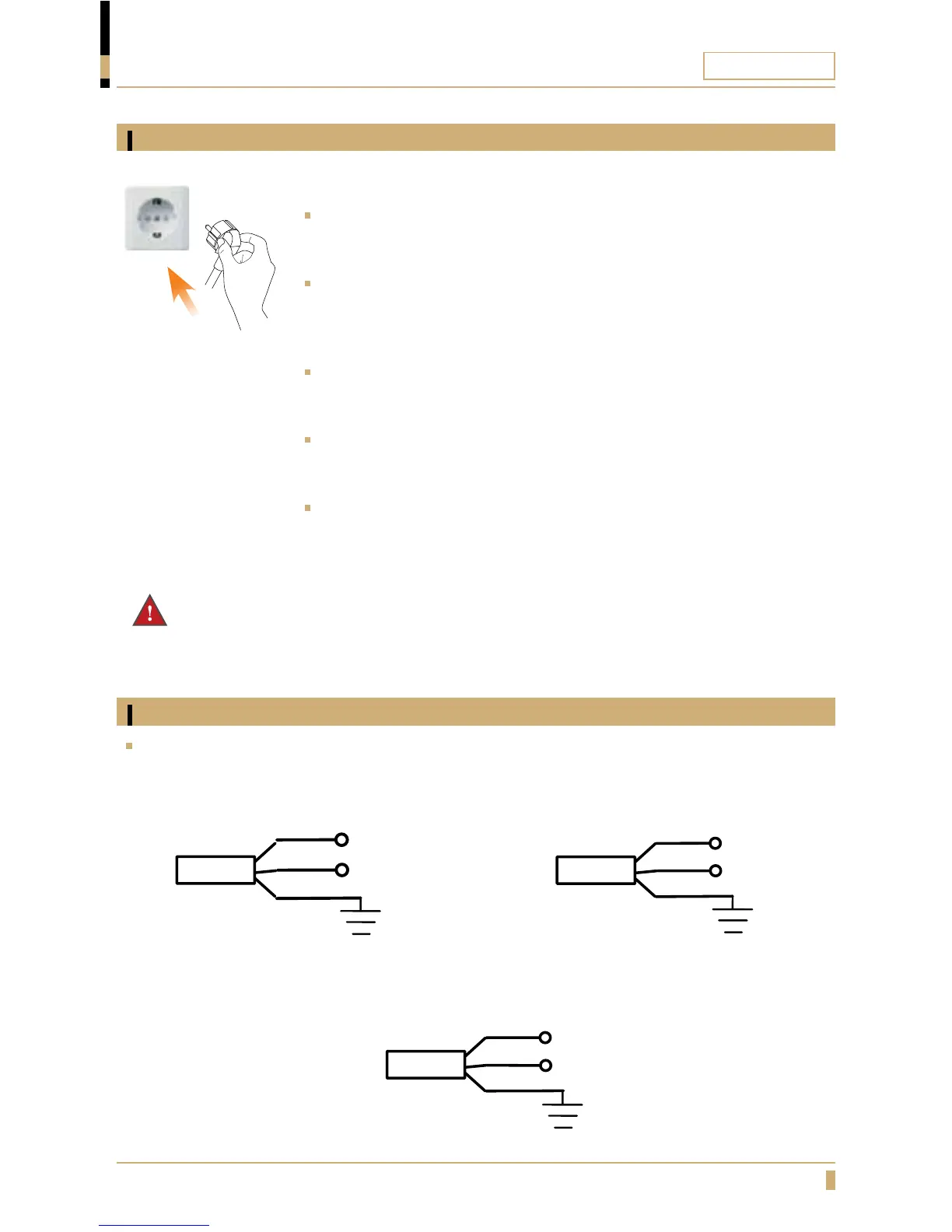

INSTALLATION
Electrical installation
Electrical connection types
The machine should only be connected to the power supply by qualified
personnel. The following safety instructions should be obeyed at all times:
Ensure that the electrical requirements stated on the TECHNICAL
SPECIFICATIONS (pages 7 - 8) match the specifications of the power
supply at the outlet.
Ensure that the domestic electrical supply where the machine is being
installed is rated for and able to provide the power required by the
machine. Insufficient power supply, wiring, grounding, or insulation can result
in overheating and possibility of fire.
The coffee machine must be connected to an earth grounded electrical
outlet that complies with the regulations in force in the country of
installation.
Ensure that a circuit breaker engineered for the power consumption of the
machine is installed to protect the domestic electrical supply, as specified on
the ratings plate located under the drip tray.
Do not connect the machine to the domestic power supply via extension
cords, plug adapters, or shared outlets.
The manufacturer will not be held liable for damage to persons, animals or
property resulting from incorrect installation of the coffee machine.
DANGER!
If the power cable or plug is damaged, it must be replaced by the manufacturer, distributor, or
its approved service technician in order to avoid RISK OF SERIOUS INJURY OR DEATH!
Connect the machine per the instructions and voltage information shown on the ratings plate.
NEUTRAL
PHASE
Supply
Blue
Brown
Yellow/Green
VOLTAGE TYPE:
220-240Vac Ph+N
PHASE
PHASE
Supply
Blue
Brown
Yellow/Green
NEUTRAL
PHASE
Supply
White
Black
Green
VOLTAGE TYPE:
220-240Vac 2Ph
VOLTAGE TYPE:
125Vac Ph+N
