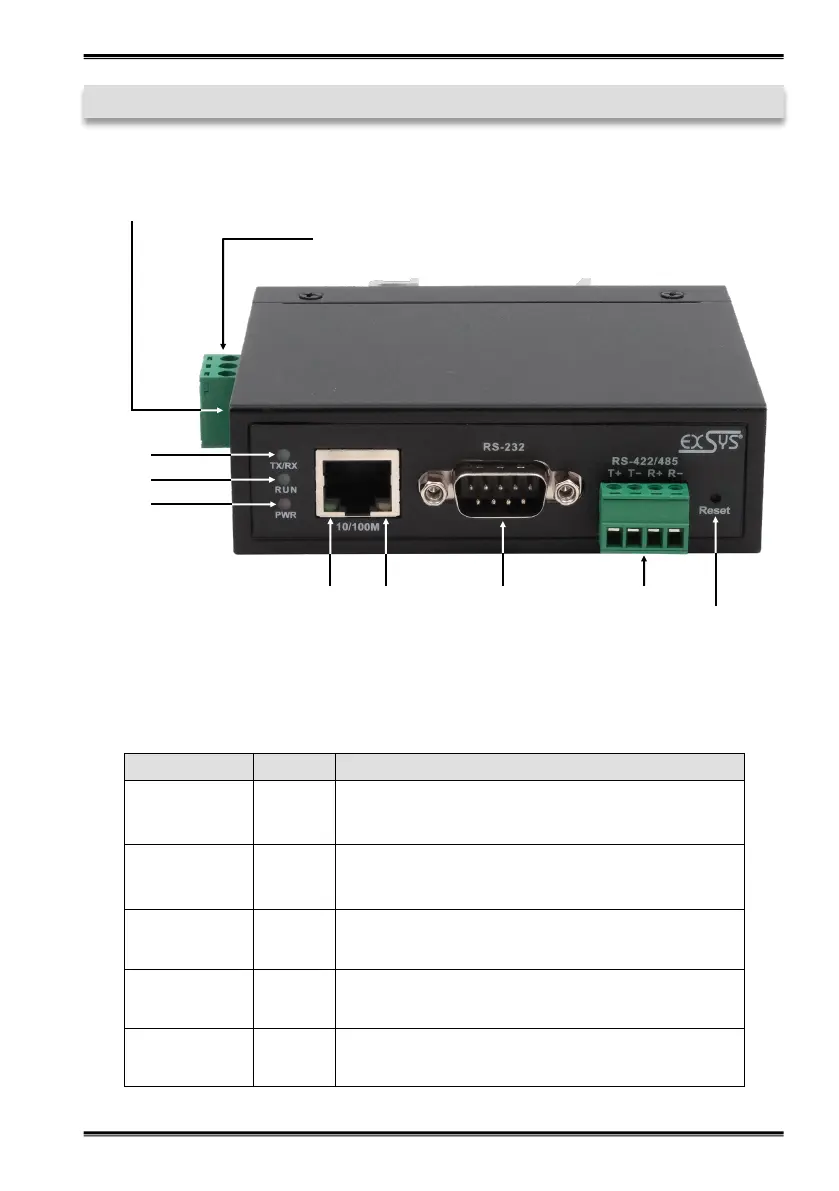

3.1 Layout

3. Layout, Connections & LED’s

LEDs:

LED Name Color LED Function

Activity LED

(RJ45)

Yellow

Steady on: Network is connected

Blinking: Transferring data on the Network

Off: No connection

LAN LED

(RJ45)

Green

Steady on: Network ist connected

Off: No connection

Power LED

Red

Steady on: Device is powered

Off: No power connected

RUN LED Green

Steady on: Device is booting

Blinking: Server is ready for end devices

Off: Server is not ready

TX/RX LED Green

Blinking: Serial port data transmission

Off: No data transmission on the serial port

3.2 LED's

Reset

RS-232 RS-422/485

TX/RX

Run

Power

12-48V DC Socket for

supplied power supply

12-48V T-Block for

optional power supply

LAN / Activity

Ethernet Port
