English EX-61001

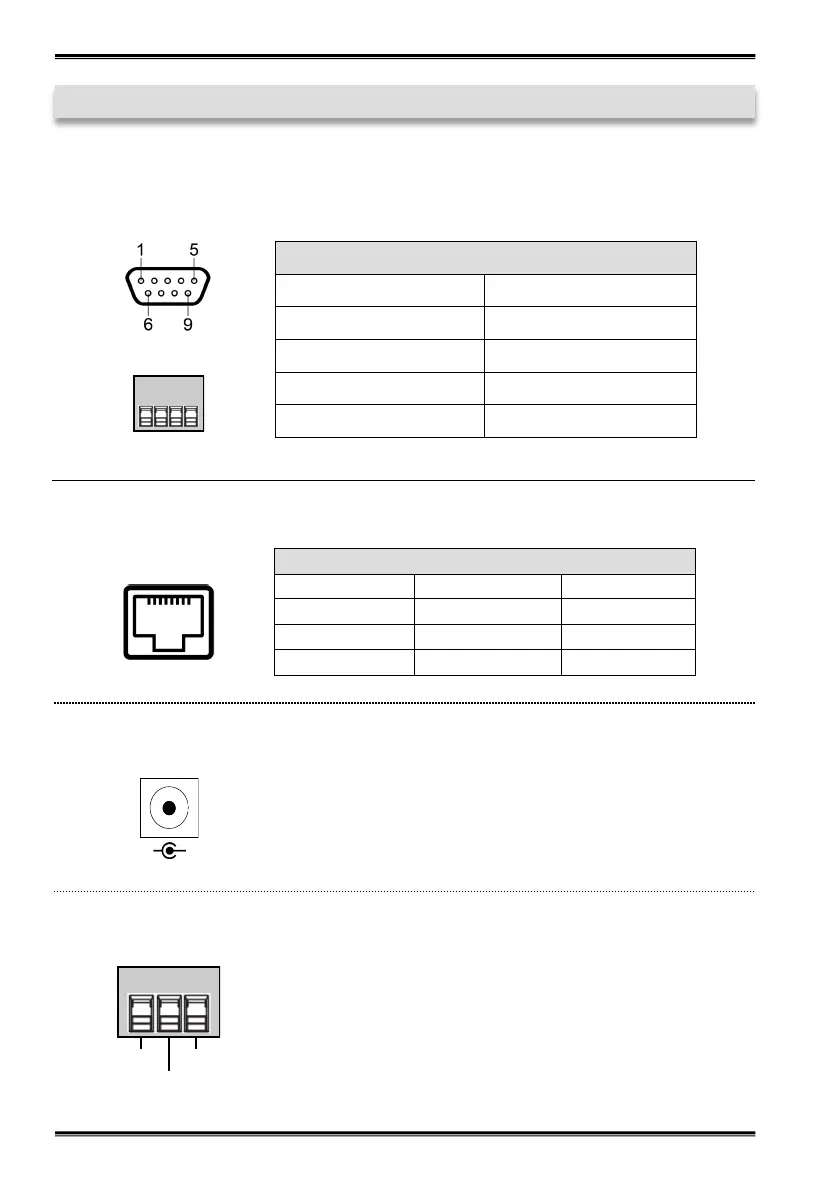

3. Layout, Connections & LED’s

3.3 Connections

Ethernet:

RJ45 Port

Pin Signal Pin Signal Pin Signal

1 BI_DA+ 4 BI_DC+ 7 BI_DD+

2 BI_DA- 5 BI_DC- 8 BI_DD-

3 BI_DB+ 6 BI_DB-

Serial:

Serial RJ45 Port

Pin RS232 RS422 RS485 Pin RS232 RS422 RS485

1 TxD+ Data+ 5

2 RxD TxD- Data- 6 GND GND GND

3 TxD RxD+ 7 RTS

4 RxD- 8 CTS

12345678

+12V to +48V DC socket:

ATTENTION!

Only for use with the power supply unit included in the scope

of delivery or another compliant power supply unit!

+12V to +48V T-Block:

ATTENTION!

Never connect power to the enclosure earth, this can destroy

your hardware!

+V -V

enclosure earth

1 2 3 4

RS-232

RS-422/485
