382252-en-GB_V1.5 1/17
7
Maintenance

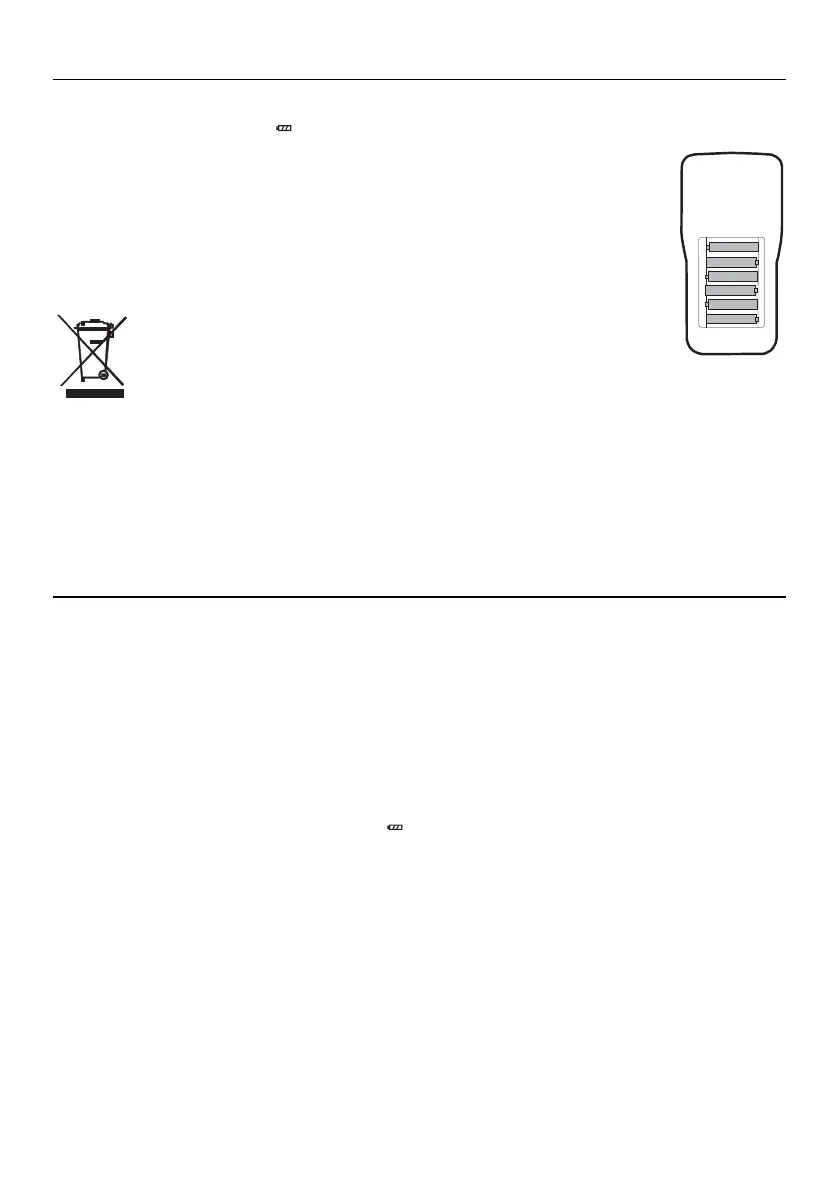

Battery Replacement
When the low battery icon '
' appears on the LCD, the meter's batteries must be changed.
1. Remove power and disconnect the test leads from the meter.
2. Remove the tilt stand from the rear of the meter.
3. Remove the 4 battery compartment screws with a Phillips head screwdriver.
4. Remove the battery compartment cover and replace the six 1.5V 'AA' batteries.
5. Affix compartment cover and tighten screw.
6. Reattach the tilt stand.
You, as the end user, are legally bound (Battery ordinance) to return all
used batteries and accumulators; disposal in the household garbage is
prohibited!
You can hand over your used batteries / accumulators at collection points
in your community or wherever batteries / accumulators are sold!
Disposal: Follow the valid legal stipulations in respect of the disposal of the device at the
end of its lifecycle
Cleaning and Storage
Periodically wipe the meter's case with a damp cloth and mild detergent; do not use abrasives or
solvents. If the meter is not to be used for a period longer than 60 days, remove the batteries and
store them separately.
Specifications
General Specifications
Measurements Earth Ground Resistance (in 3 ranges), Earth Voltage,
AC Voltage to 750V and DC Voltage to 1000V and resistance.
Display Large LCD with dual display
Sampling Time 2.5 times per second
Test lead length Red lead: 50' (15m), Yellow: 33' (10m), Green: 16' (5m)
Over-range indication '1' displayed as most significant digit
Power supply Six 1.5V 'AA' batteries (included)
Low battery indication LCD displays
icon
Auto Power Off After approximately 15 minutes of use
Safety EN-61010-1 category III
Weight 700g (24.7oz) with batteries
Dimensions 200 x 92 x 50 mm (7.9 x 3.62 x 2")
Operating Conditions 0ºC to 40ºC (32ºF to 104ºF), with < 80% RH
Storage Conditions -10ºC to 60ºC (14ºF to 140ºF), with < 70% RH
