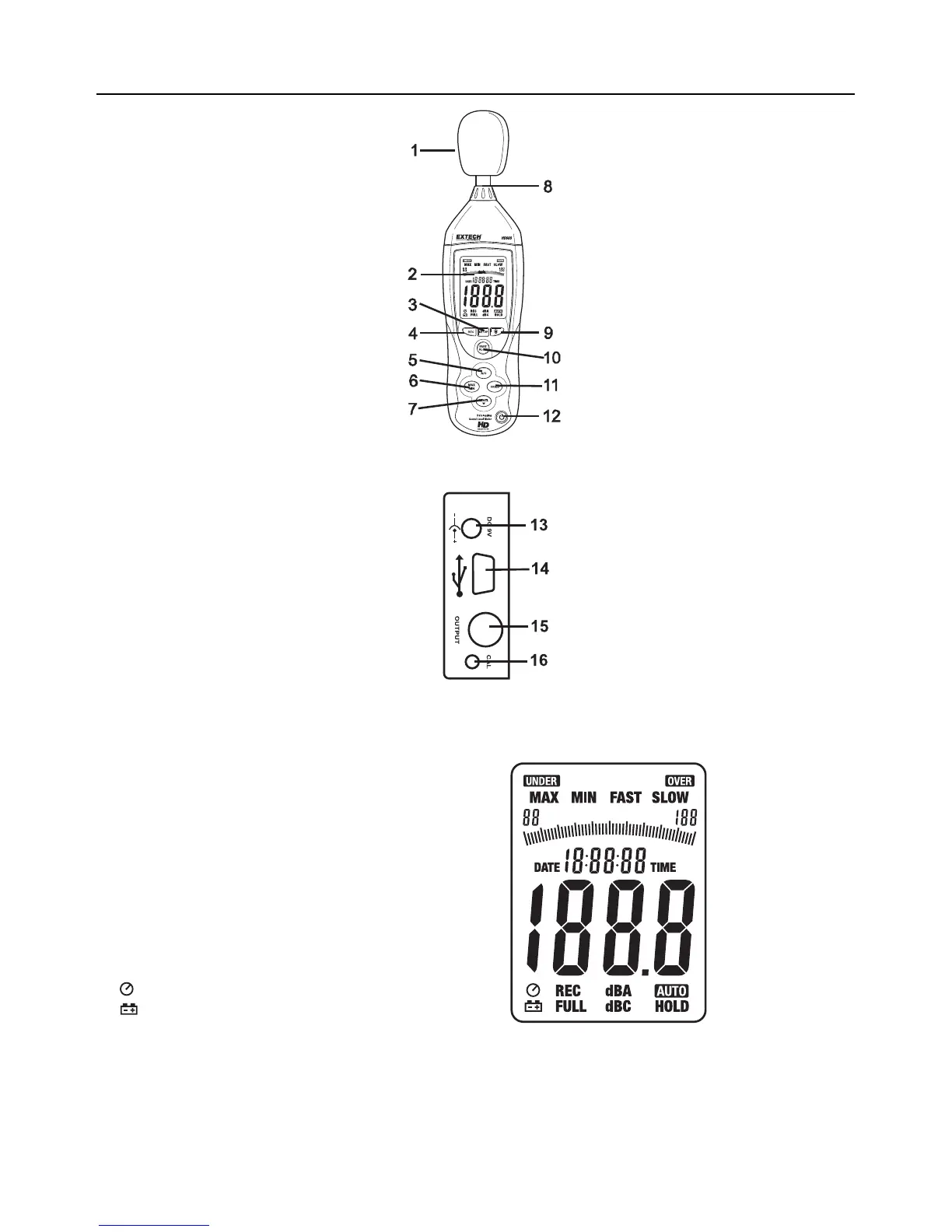

Meter Description
1. Windscreen
2. LCD Display
3. Setup-button:
4. Record button
5. A/C weighting
6. Max/Min display
7. Range button
8. Microphone
9. Backlight
10. Fast/Slow response
11. HOLD
12. ON/OFF
Tripod Mount (rear)
Battery Compartment (rear)
SIDE PANEL
13. External 9VDC power adaptor
14. USB pc port
15. DC/AC analog output
16. CAL potentiometer
DISPLAY
Symbol Function
MAX Maximum hold
MIN Minimum hold
OVER Over range
UNDER Under range
FAST Fast response
SLOW Slow response
dBA A-Weighting
dBC C-Weighting
REC Recording data
AUTO Auto range selection
FULL Memory full
HOLD Data hold
Auto Power Off enabled
Low battery indicate
