Over‐rangeIndicators(O Land‐OL)
Ifthetemperaturemeasurementexceeds1112°F(600°C),thethermometerwilldisplayOLin
placeofatemperaturereading.Ifthe temperaturemeasurementisbelow‐58°F(‐50°C),the
thermometerwilldisplay‐OLinplaceofatemperaturereading.

LocatingHotorColdSpots
Todetectahotorcoldspot,aimthethermometerataregionbeyondthetargetandthenscan
theentireregioninaslow,up/downmotion.Aimthelaserpointerapproximatelyahalfinch
belowthepointoftest.



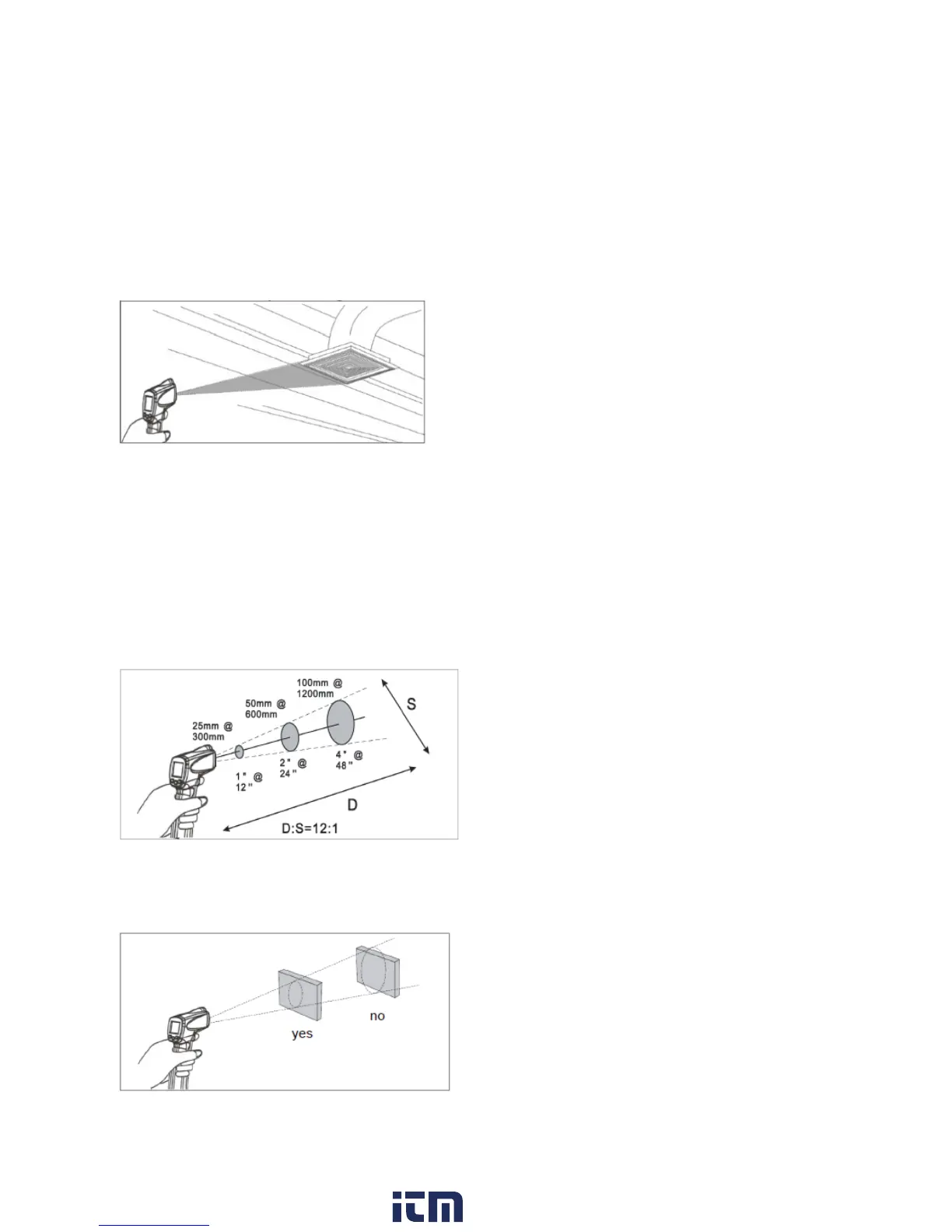

DistancetoSpotRatio(FieldofView)
Themeter’sfieldofviewis12:1(distancetospotratio).Forexample,ifthemeteris24inches 
fromthetarget(spot),thediameterofthetargetmustbeatleast2inches.Otherdistancesare
shownbelowinthefieldofviewdiagram.
Notethatmeasurementsshouldnormallybemade<2feetfromthetarget.Themetercan
measurefromfurtherdistancesbutthemeasurementmaybeaffectedbyexternalsourcesof
light.Inaddition,thespotsizemaybesolargethatitencompassessurfaceareasnotintended
tobemeasured.



Itisnecessarytoensurethatthesizeofthetargetislargerthanthespotsize.Thesmallerthe
target,thecloserthedistanceshouldbe.Seetheaccompanyingdiagram.


