CFI EXTEL TOPTEL200- 02/2010 - V1

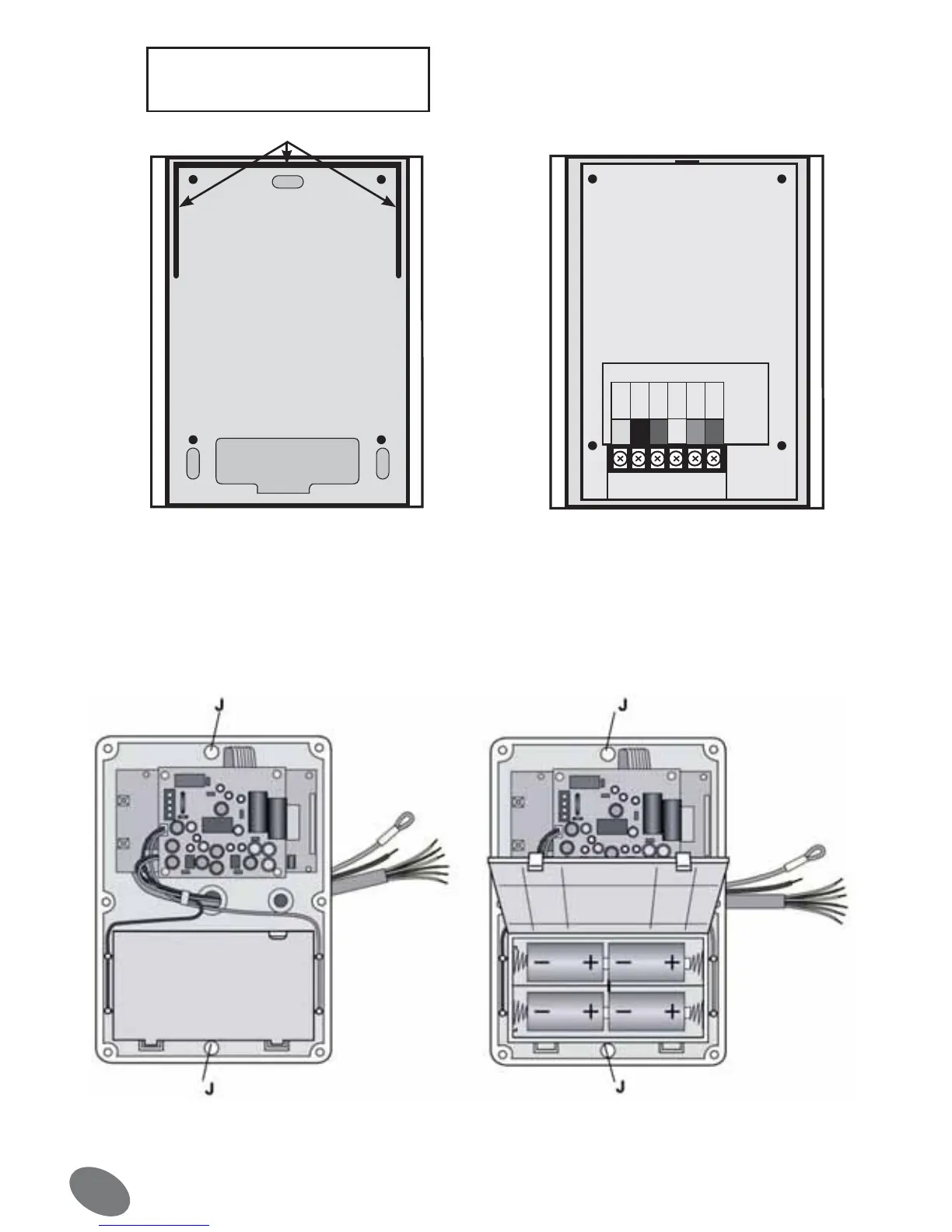

To complete the installation of the external part, insert four 1.5 V - LR 20 alkaline batteries in the battery
compartment of the electronic housing, after lifting the cover, take care they are inserted the right way
round (fig. 7).
Important: to prevent condensation for-
ming, place the seal on the top half of the
housing (C) only.
Joint silicone
M
-
M
+
S
-
S
+
C
-
C
+
fig.5fig.4
M- White
M+ Grey
S- Pink
S+ Purple
C- Black
C+ red
fig.6 fig.7
