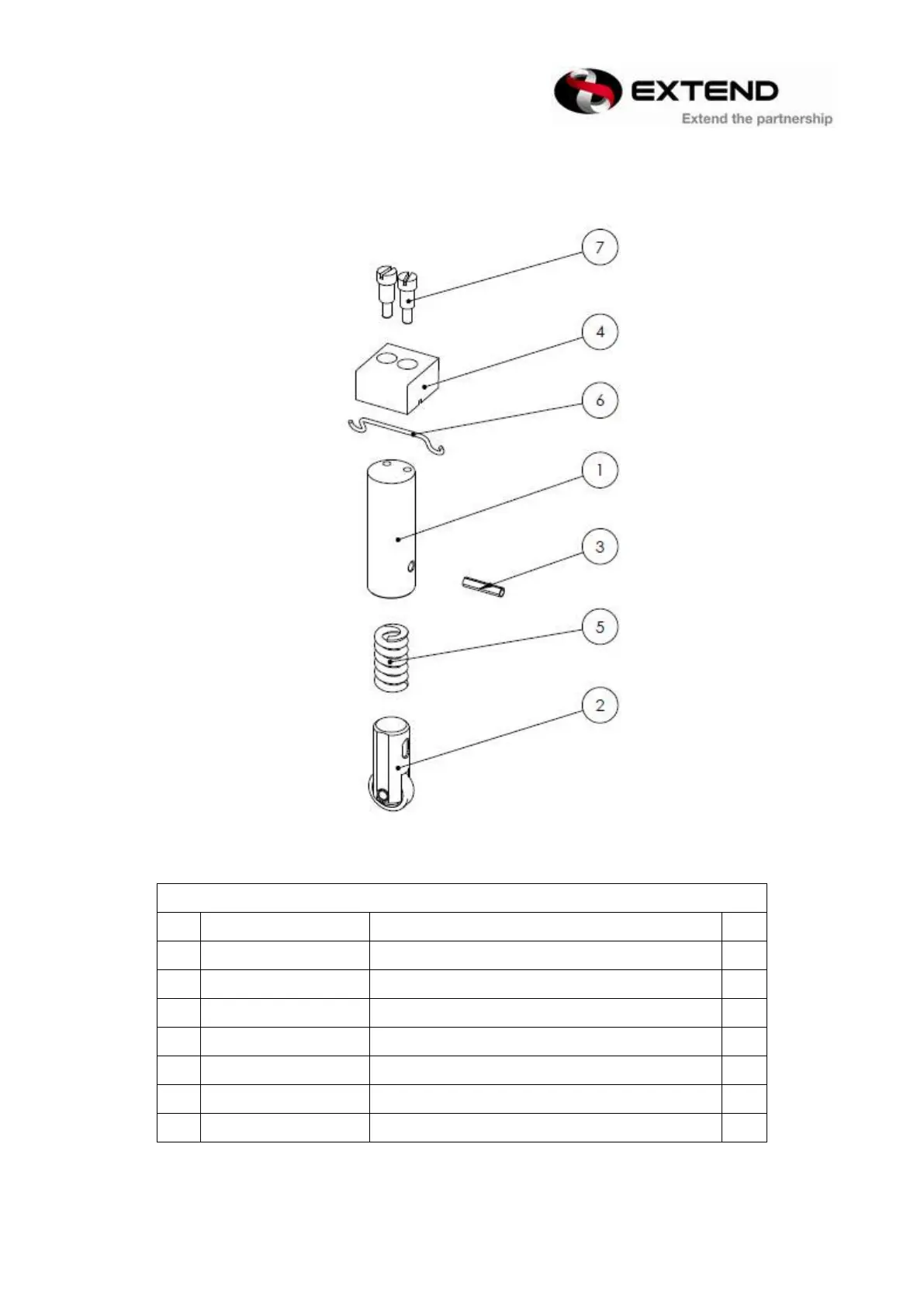

FIG. 4-1 WELDING CLAMP UNIT
FIGURE 4-1 WELDING CLAMP UNIT
NO.
PART NUMBER
DESCRIPTION
QTY
1
P02-035700A
CLAMP SEAT - LONG
1
2
P02-0362900
CAM FOLLOWER UNIT
1
3
P1109-0104018B
PIN 4x18
1
4
P02-0357200
CUTTER
1
5
P1201-0010200
COMPRESS SPRING
1
6
P1202-001240A
SPRING HOLDER
1
7
P02-0358600
SHOULDER SCREW
2
