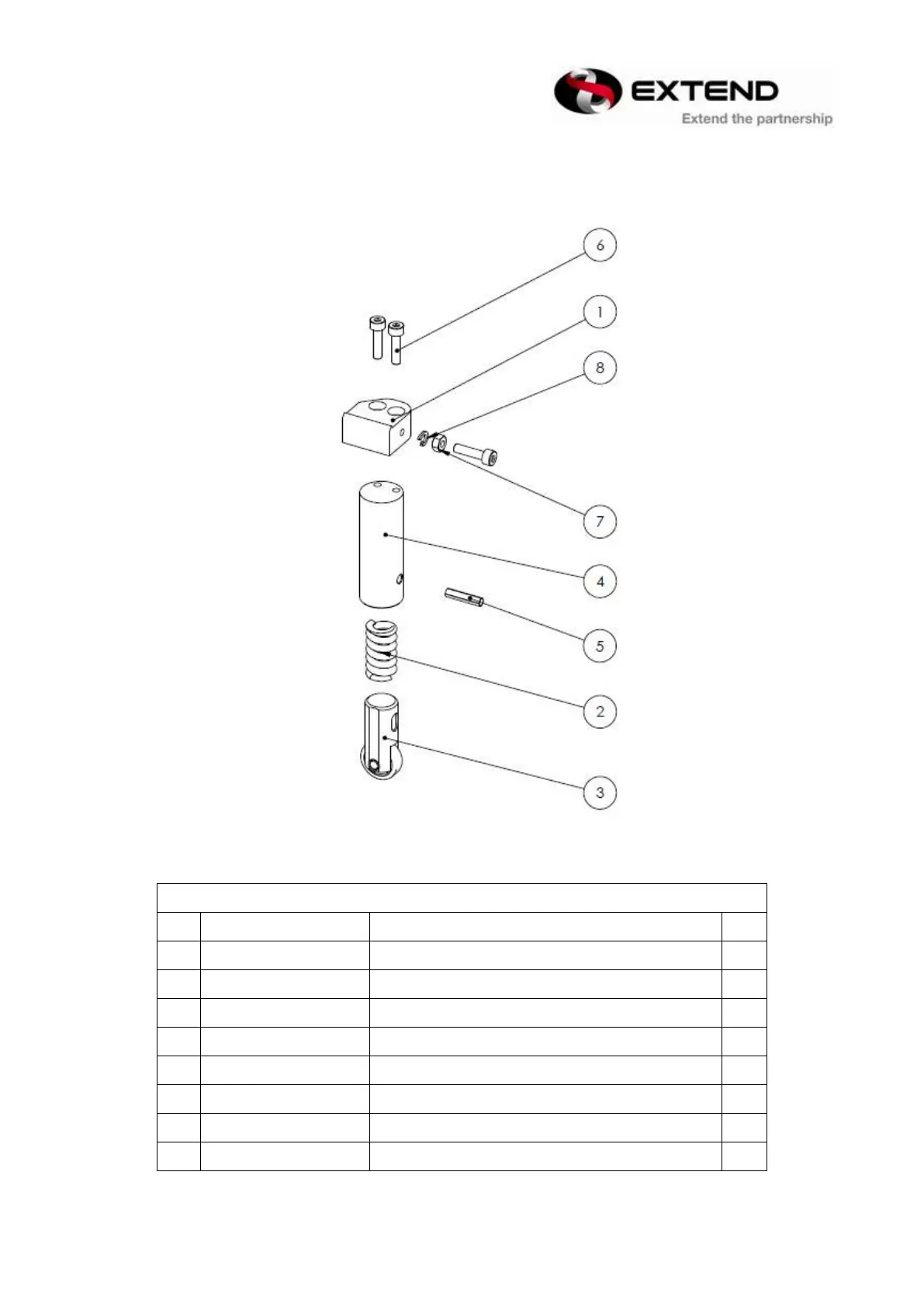

FIG. 5-1 HOLDING GRIPPER UNIT
FIGURE 5-1 HOLDING GRIPPER UNIT
NO.
PART NUMBER
DESCRIPTION
QTY
1
P02-0358000
HOLDING GRIPPER
1
2
P1201-0010200
COMPRESS SPRING
1
3
P02-0362900
CAM FOLLOWER UNIT
1
4
P02-035700A
CLAMP SEAT - LONG
1
5
P1109-0104018B
PIN 4X18
1
6
P1101-0504016AN
SCREW M4*16
3
7
P1102-0104AN
NUT M4
1
8
P1103-0204Z
SPRING WASHER φ4
1
