Hardware Installation
AP-7622 Access Point Installation Guide 9

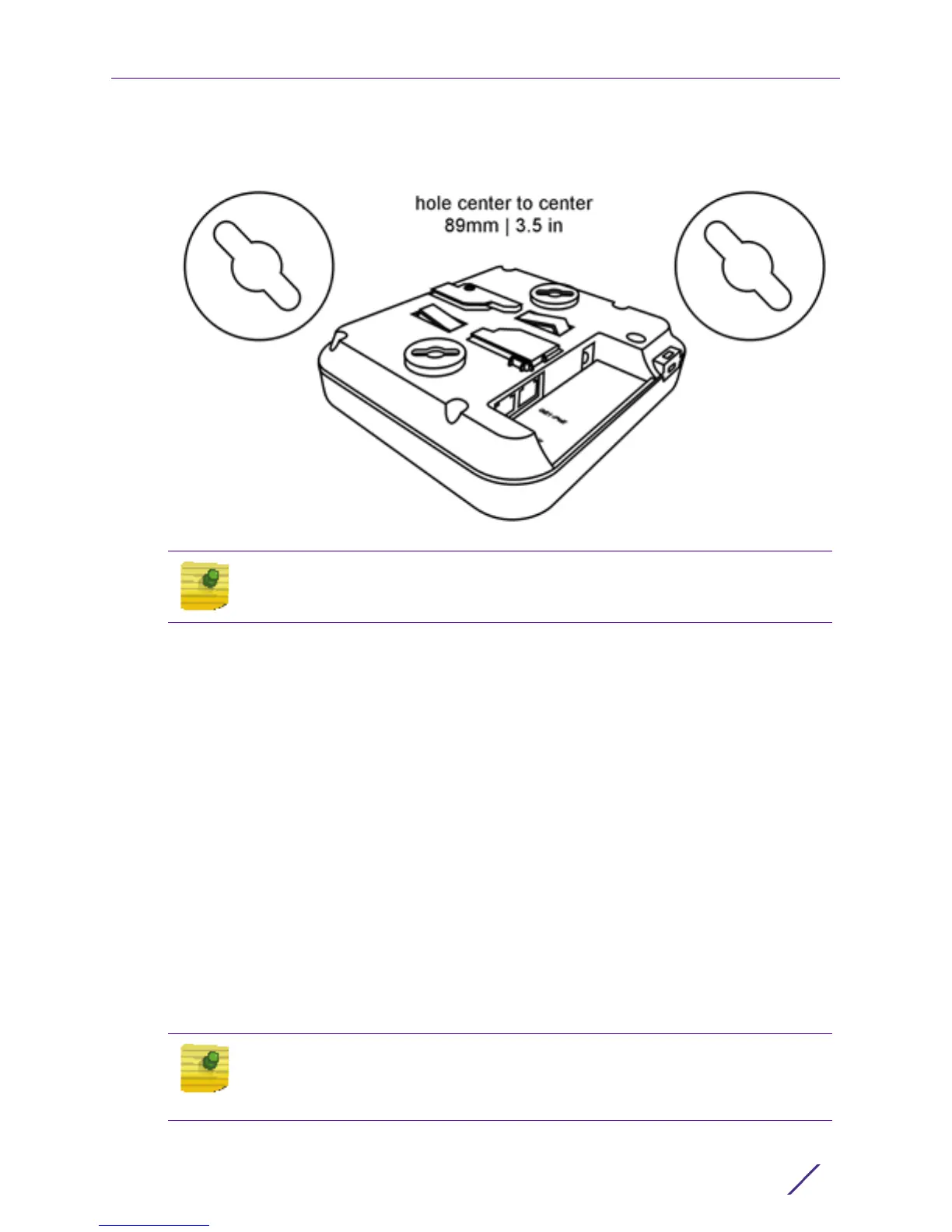

1 Measure and mark two holes 89mm (3.5") apart at the intended deployment orientation
of the unit.
2 Drill pilot holes at the locations marked on the wall..
3 Cable the Access Point using the Power Injector solution, approved AP-7622 power
supply or a POE enabled switch.
For Power Injector installations:
a Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the Power Injector Data &
Power Out connector and the Access Point’s GE1/POE port.
b Connect a RJ-45 CAT5e (or CAT6) Ethernet cable between the network data supply
(host) and the Power Injector Data In connector.
c Ensure the cable length from the Ethernet source (host) to the Power Injector and
Access Point does not exceed 100 meters (333 ft). The Power Injector has no On/Off
power switch. The Power Injector receives power as soon as AC power is applied.
For standard power adapter (non Power Injector) and line cord installations:
a Connect a RJ-45 Ethernet cable between the network data supply (host) and the
Access Point’s GE1/POE port.
b Connect the power supply line cords to the power adapter.
c Attach the power adapter cable into the power connector on the Access Point.
d Attach the power supply line cord to a power supply.
NOTE
When pre-drilling a hole the recommended hole size is 4mm (0.16in.).
NOTE
Extreme Networks recommends wrapping the auxiliary power adapter cable
around the Access Point’s cable hook to avoid accidental disconnection.
