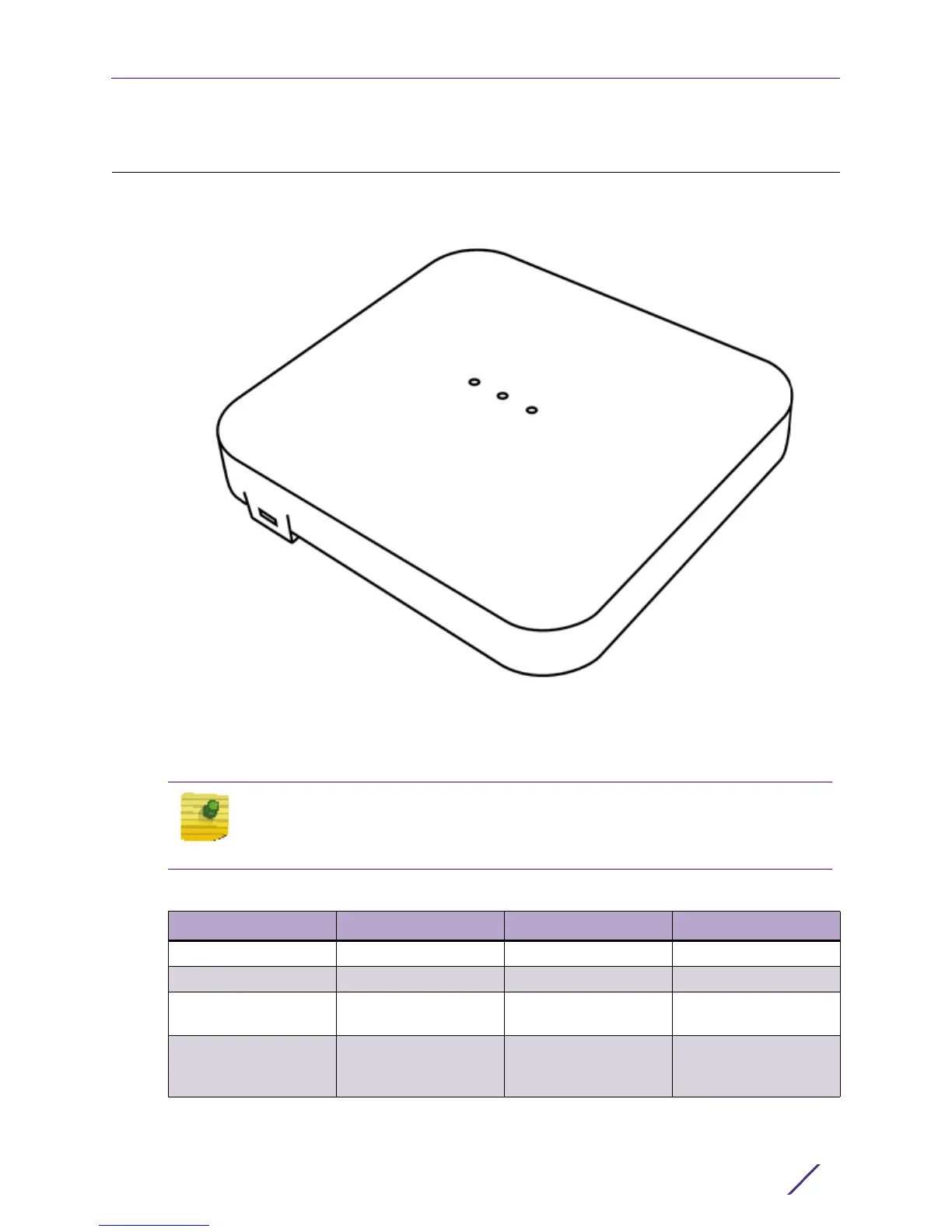

LED Indicators
The AP-7622’s three LED activity indicators are located on the front of the housing and are
visible through the enclosure.
The LEDs provide a status display indicating error conditions, transmission, and network
activity for the 5 GHz 802.11ac (amber) radio, 2.4 GHz 802.11n (green) radio and Bluetooth
activity (blue) radio.
NOTE
LED behavior for the AP-7622 are identical in both WLAN and client bridge
modes.
Task Green Amber Blue
Firmware Update Off On Off
Radio Disabled Off Off N/A
Radio Enabled Not
Configured
Solid Green Solid Amber N/A
Radio Enabled and
Configured
Blink 500ms
Out of sync with
Amber LED
Blink 500ms
Out of sync with
Green LED
N/A
