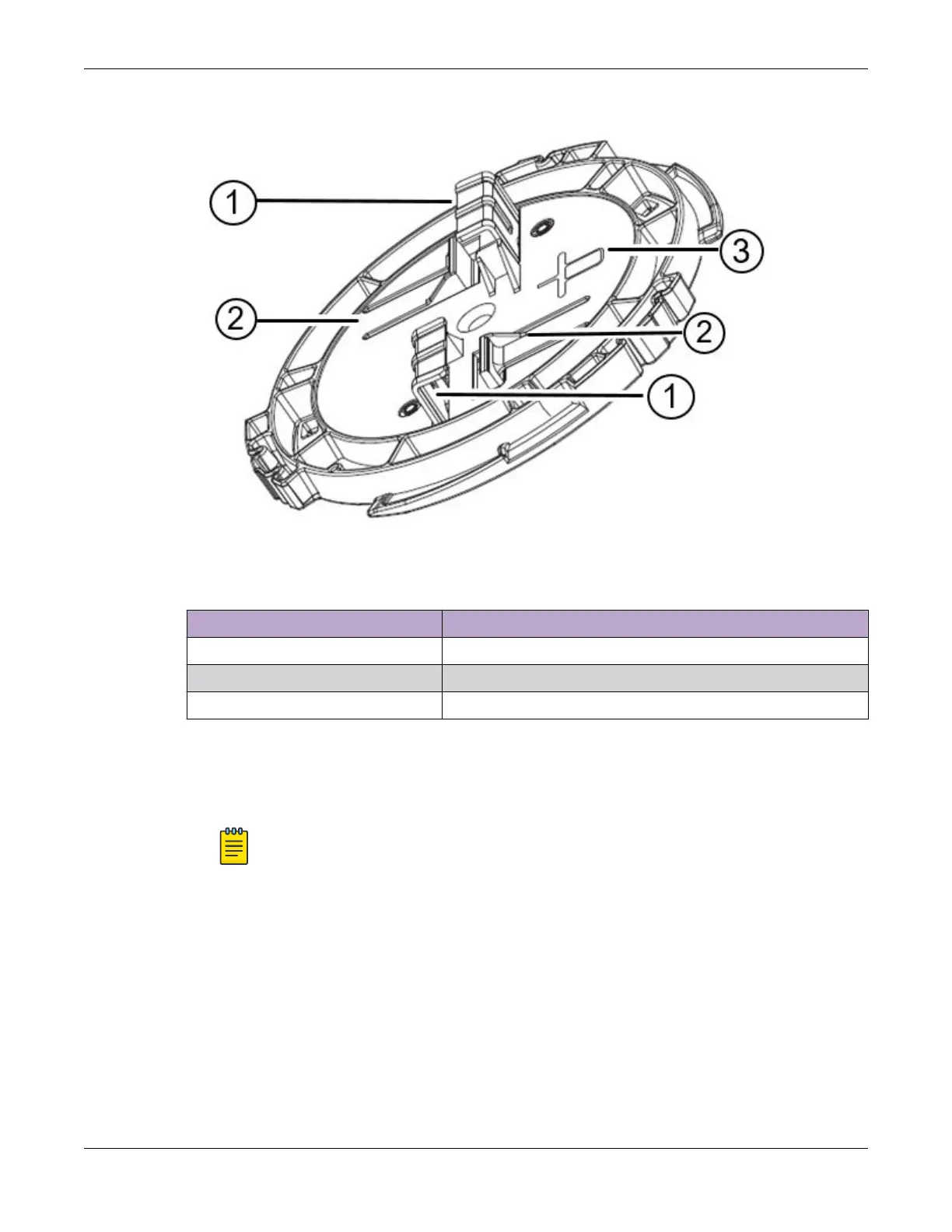

Figure 1: AH-ACC-BKT-AX-IL accessory

Callout Description

1 Metal hinges on the AH-ACC-BKT-AX-IL accessory

2 White tabs on the AH-ACC-BKT-AX-IL accessory

3 Artwork of the 9/16 interlude ceiling grid for reference

4. When using a AP305C/CX or AP410C access point, attach the Ethernet port cap to the access point

Ethernet port.

For more information about Ethernet cap, refer to Ethernet Cap Accessory Information on page 13.

5. Align the red dot on the back of the access point against the accessory red dot.

Note

The accessory has a circular tip that ﬁts into the circular depression on the back of the

access point.

Install the Access Point on a 9/16 in. Wide Ceiling Using

AH-ACC-BKT-AX-IL Accessory Indoor Mounting Accessory Installation

16 Wi-Fi 6 (802.11ax) Access Points
