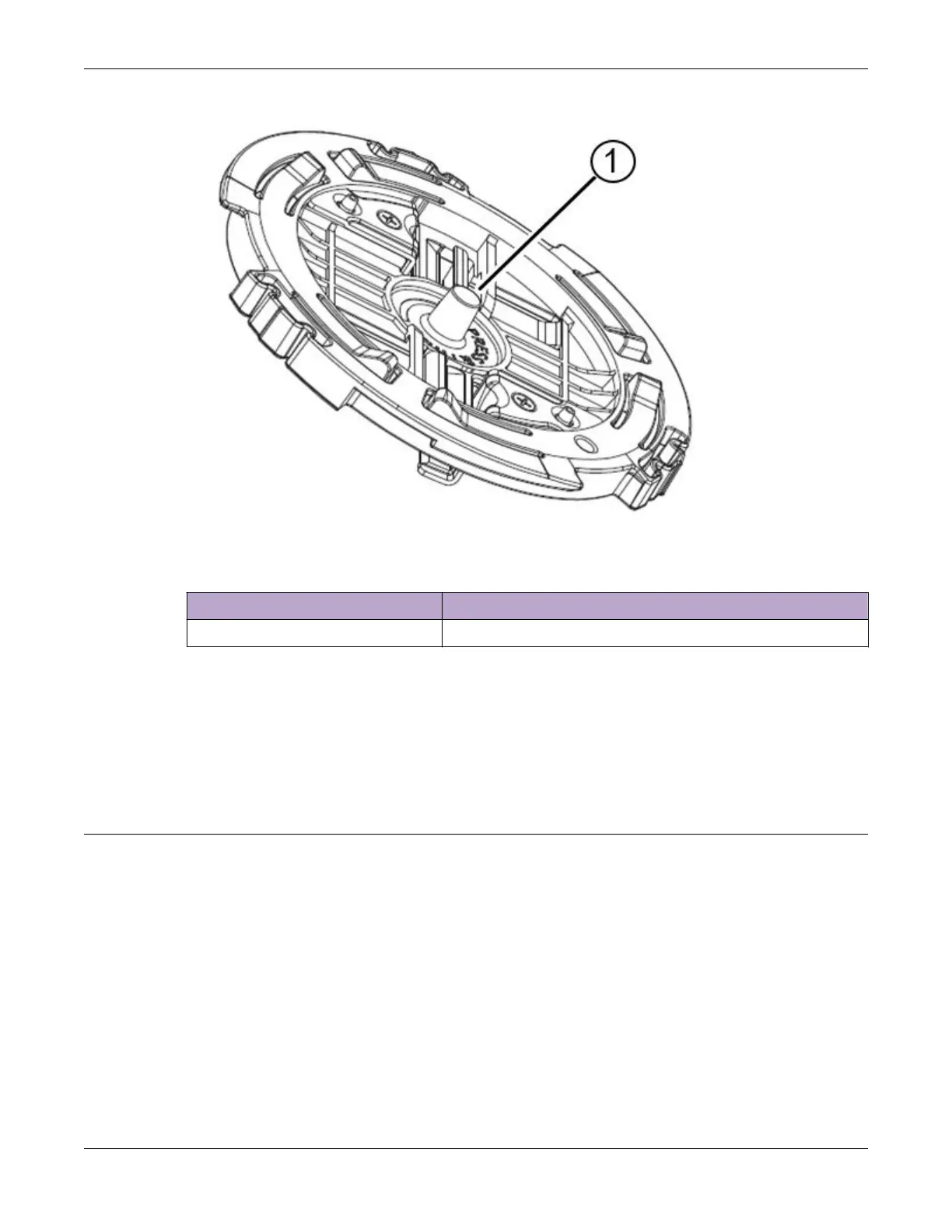

Figure 2: AH-ACC-BKT-AX-IL accessory circular tip

Callout Description

1 AH-ACC-BKT-AX-IL accessory circular tip

6. Press and rotate the access point clockwise about ¼

turn until it locks into place on the accessory.

7. Attach the Cat5e RJ45 cable to the ETH0 port on AP305C/CX or the Cat6 RJ45 cable to the ETH0

or ETH1 port on AP410C.

8. Place the cable cover over the Ethernet cable.

9. Replace the ceiling tiles.

Install the Access Point on a Silhouette Ceiling Rail Using AH-ACC-BKT-

AX-SL Accessory

Learn how to install an indoor access point on a 1/8 in. or ¼ in. silhouette ceiling rail using the AH-ACC-

BKT-AX-SL accessory.

Before You Begin

The following hardware is required to install the access point on a 1/8 in. or ¼ in. silhouette ceiling:

• An indoor access point

• One AH-ACC-BKT-AX-SL accessory

About This Task

The AH-ACC-BKT-AX-SL accessory is used for 1/8 in. or ¼ in. silhouette ceiling installation. The

silhouette ceiling drawing is printed in the back of the accessory for your reference.

Indoor Mounting Accessory Installation

Install the Access Point on a Silhouette Ceiling Rail

Using AH-ACC-BKT-AX-SL Accessory

Wi-Fi 6 (802.11ax) Access Points 17
