Procedure

1. Remove the ceiling tiles.

2. Place the accessory on the ceiling rail in such a way that the accessory metal hinges are almost

parallel to the sides of the ceiling rail with the ceiling rail over the center hole.

3. Rotate the accessory clockwise until the hinges hook over the edge of the rail and the white tabs

click in place.

Note

There are two white tabs in the back of the accessory that holds on to the ceiling rail in

place. Use your ﬁnger to push and unhook one side of the white tab if you want to remove

the accessory from the ceiling rail.

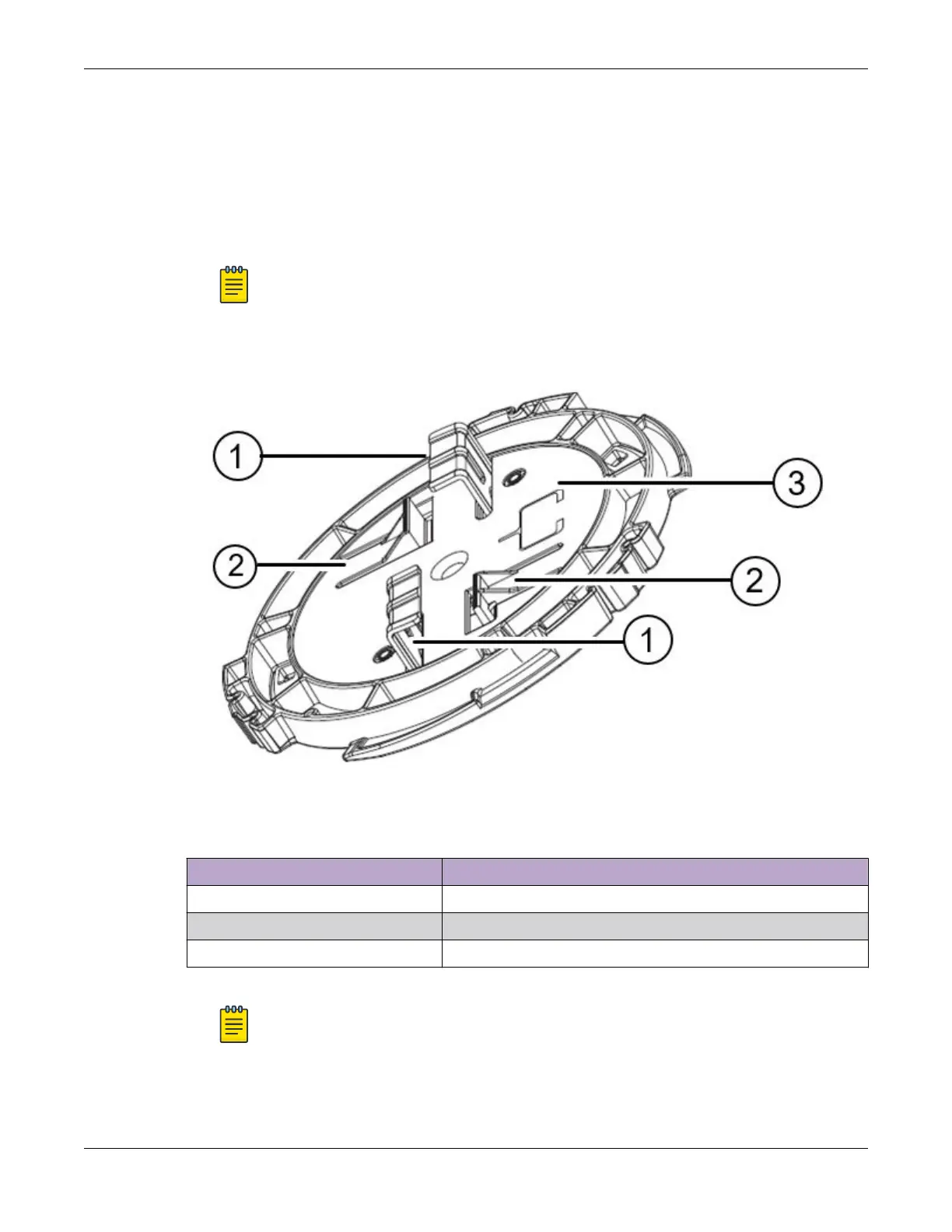

Figure 3: AH-ACC-BKT-AX-SL accessory

Callout Description

1 Metal hinges on the AH-ACC-BKT-AX-SL accessory

2 White tabs on the AH-ACC-BKT-AX-SL accessory

3 Artwork of the 1/8 in. or ¼ in. ceiling grid for reference

4. Align the red dot on the back of the access point against the accessory red dot.

Note

The accessory has a circular tip that ﬁts into the circular depression on the back of the

access point.

Install the Access Point on a Silhouette Ceiling Rail

Using AH-ACC-BKT-AX-SL Accessory Indoor Mounting Accessory Installation

18 Wi-Fi 6 (802.11ax) Access Points
