Procedure

1. Remove the ceiling tiles.

2. Align the accessory on the ceiling rail in such a way that the accessory metal hinges are almost

parallel to the sides of the ceiling rail.

3. Rotate the accessory clockwise until the metal hinges hook over the edge of the rail and the white

tabs click in place.

Note

There are two white tabs in the back of the accessory that holds on to the ceiling rail in

place. Use your ﬁnger to push and unhook one side of the white tab if you want to remove

the accessory from the ceiling rail.

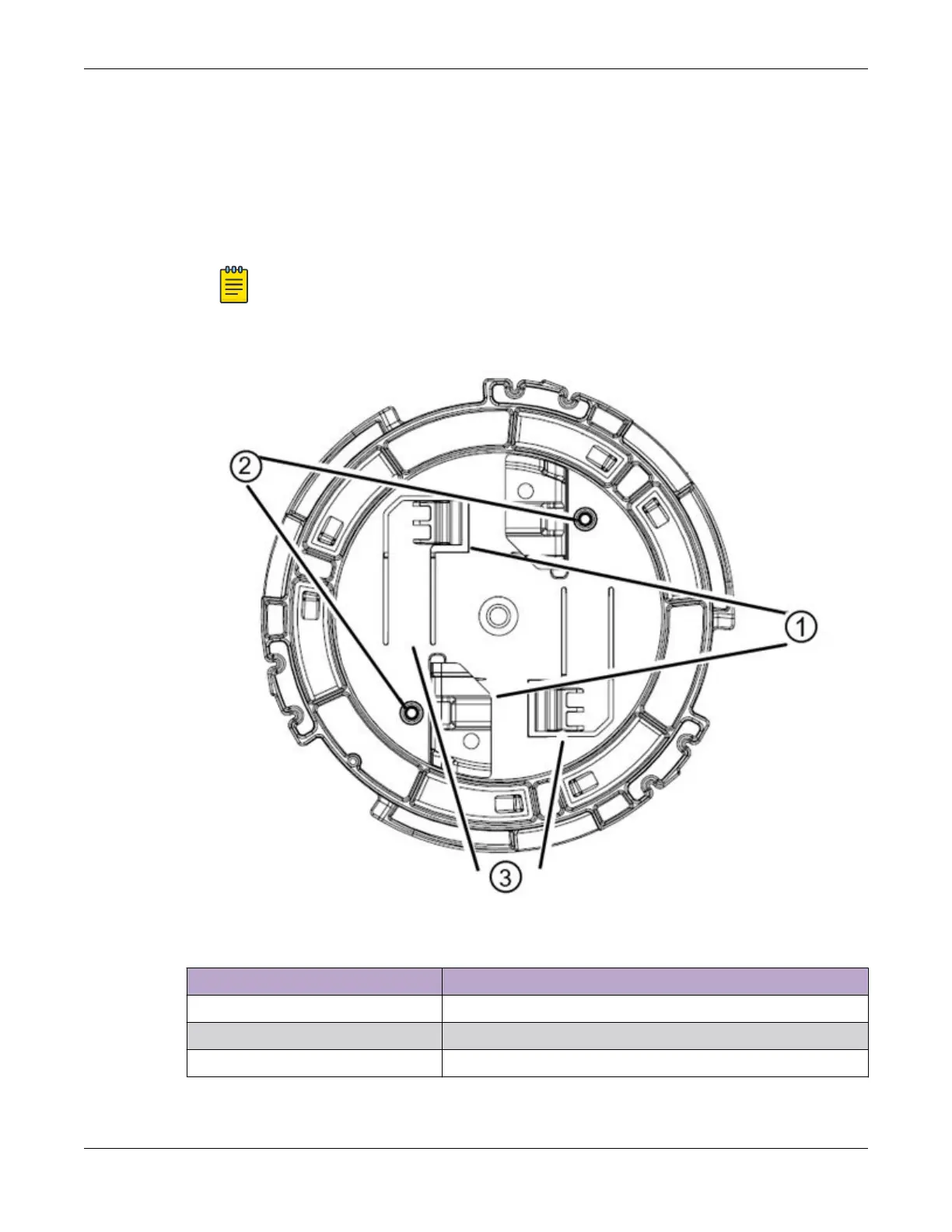

Figure 5: AH-ACC-BKT-AX-TB accessory

Callout Description

1 Metal hinges on the AH-ACC-BKT-AX-TB accessory

2 Mounting holes for wall mounting

3 White tab on the AH-ACC-BKT-AX-TB accessory

Install the Access Point on a 15/16 in. Wide Ceiling Rail

Using AH-ACC-BKT-AX-TB Accessory Indoor Mounting Accessory Installation

20 Wi-Fi 6 (802.11ax) Access Points
