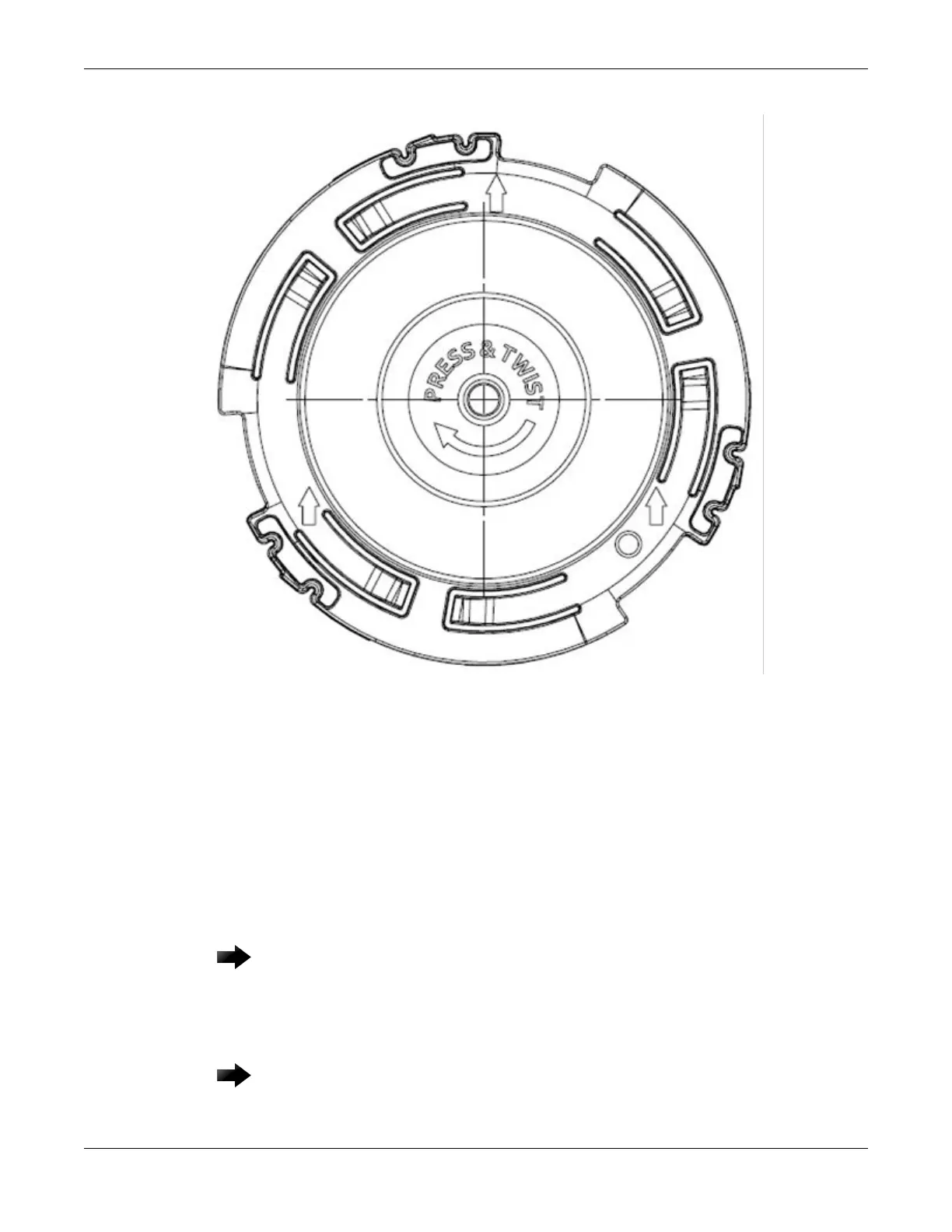

Figure 7: ACC-BKT-AX-JB accessory plastic part

Procedure

1. Remove the screws holding the box cover plate.

2. Remove the LAN cable from the cover plate.

3. Bring the LAN cable through the center hole of the metal part.

The LAN wire must be in-between the metal part and the plastic part during installation.

4. Place the ACC-BKT-AX-JB accessory metal part, with the bracket holes against the cover plate of the

box.

5. Using the screws removed from the cover plate, attach the metal part to the box.

Important

The text for the holes must be normally readable.

6. Place the plastic part on the metal part, rotate it 1/3

turn clockwise and twist it until you hear it

click in place.

Important

When installed correctly on a wall, the side arrows on the plastic part must be pointing up.

Indoor Mounting Accessory Installation

Install the Access Point on a Junction Box Using ACC-

BKT-AX-JB Accessory

Wi-Fi 6 (802.11ax) Access Points 23
