Before beginning the mounting procedure, insert the four M5 bolts into the holes on the rear of the

access point and torque the bolts to 16 in-lbs.

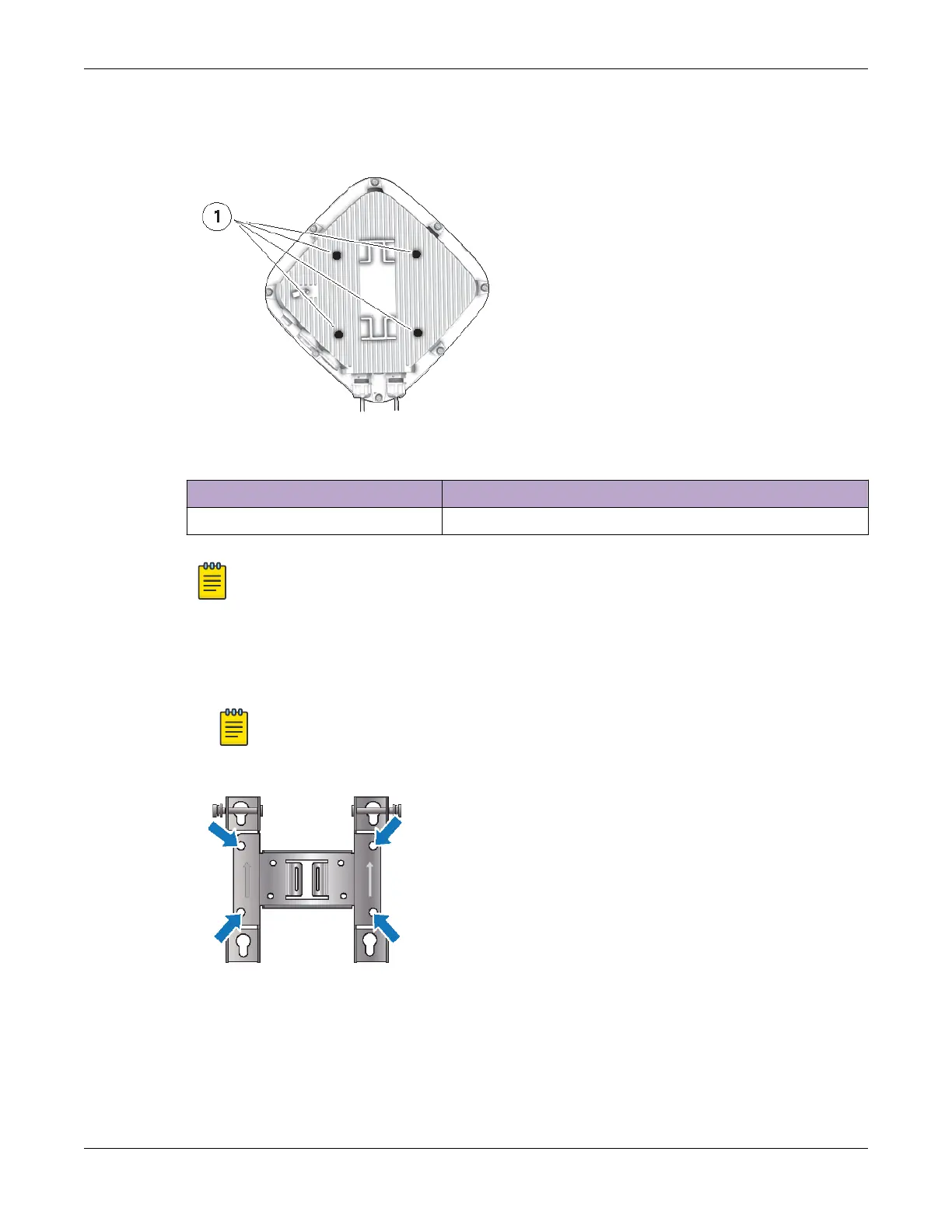

Figure 13: Wall mounting accessory M5 bolt holes

Callout Description

1 M5 bolt attachment holes

Note

If you are mounting the access point horizontally, ensure that the ports are facing down to

reduce the chance of water entering the chassis.

Procedure

1. Using the ASM wall accessory as a template, mark and drill four mounting holes on a ﬂat surface.

Note

The printed arrows on the accessory must be pointing up.

Figure 14: ASM accessory wall mounting hole markings

Outdoor Mounting Accessory Installation

Install the Access Point on a Flat Surface Using AH-

ACC-BKT-ASM Accessory

Wi-Fi 6 (802.11ax) Access Points 31
