Procedure

1. Strip the insulation o of one end of the ground wire and attach the stripped wire to the ring

terminal.

Note

The best practice is to use a 10 AWG electrical wire.

2. Attach the ground wire ring terminal to the access point using the M4 ground screw assembly with

the star washer.

Note

The star washer must be in contact with both the ring terminal and the access point.

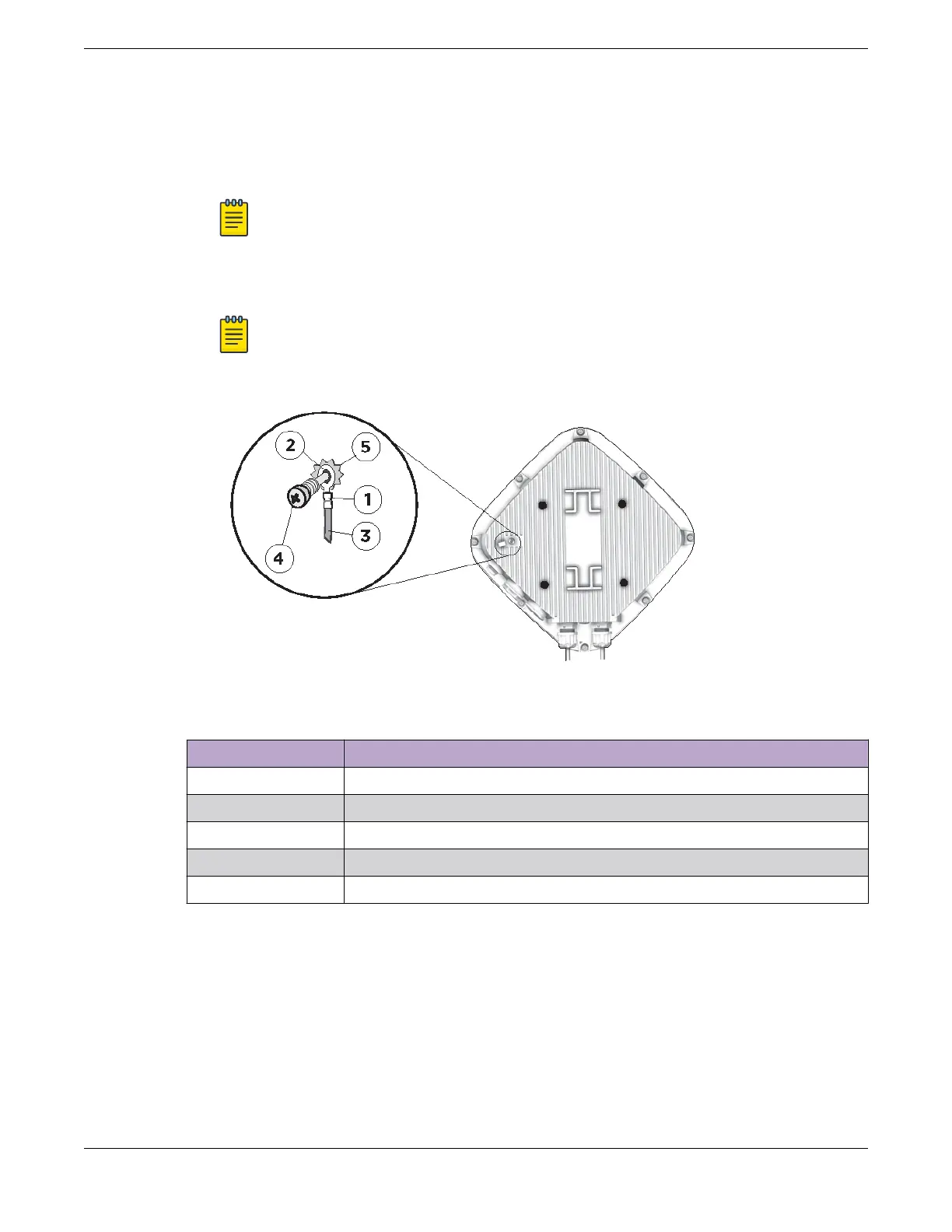

Figure 16: Ground connection on the access point

Callout Description

1 Ground terminal edge area

2 Ground terminal

3 10 AWG ground wire

4 M4 screw

5 Star washer

3. Tighten the screw to a torque of 12 in-lbs.

4. Connect the other end of the ground wire to an appropriate earthing location.

Outdoor Mounting Accessory Installation

Ground Connection

Wi-Fi 6 (802.11ax) Access Points 33
