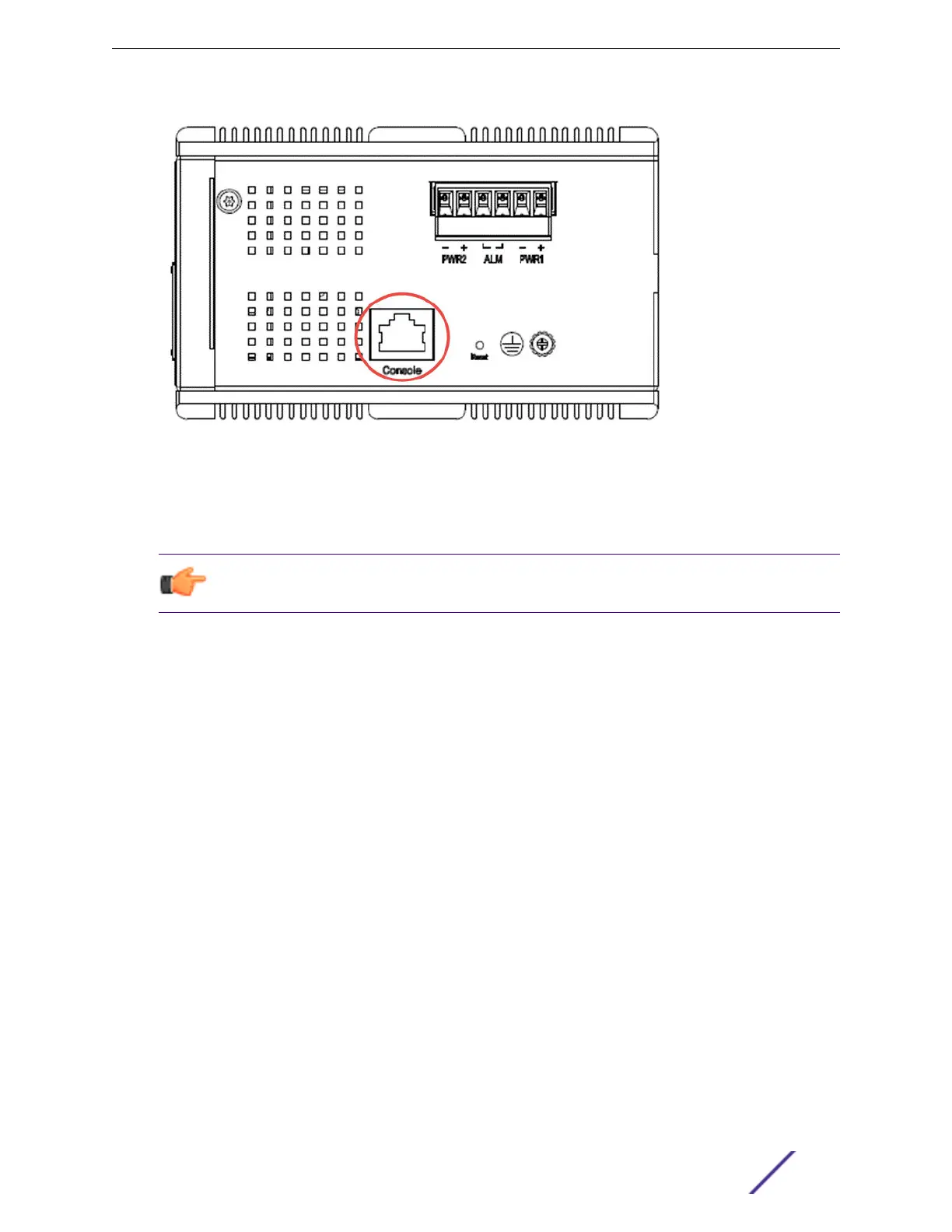

Figure 10: ISW Console Port
To connect the host PC to the switch, use the supplied RJ45 (male) connector-to-RS232 DB9 (female)
connector. Connect the RJ45 connector to the switch's Console port shown in Figure 10, and then
connect the DB9 connector to the PC COM port.
Important
Using a dierent cable than the one provided with the switch may cause bootup issues.
Once the host PC is connected to the switch, enter the following terminal settings:
•
Speed (baud rate): 115200 bps
•
Data bits: 8
•
Stop bits: 1
•
Parity: None
•
Flow control: None
The pin assignment of the Console cable is shown in Figure 11.
Installation
ISW Series Managed Industrial Ethernet Switch Quick Installation Guide 21
