Install the Access Point on a Flat T-bar Using the DCMTR01 Bracket
Before You Begin
Ensure that the T-bar meets the following conditions before installing the DCMTR01 bracket on it:
• T-bar width must be 9/16 in. (15 mm), 15/16 in. (24 mm), or 1.5 in. (38 mm).
• T-bar must be structurally sound.
• T-bar maximum base thickness cannot exceed 0.118 in. (3 mm).
• T-bar maximum protrusion must be 0.625 in. (15.800 mm).
• Maximum protrusion of the ceiling tile cannot exceed 0.625 in. (15.800 mm).
About This Task
The optional WS-MBI-DCMTR01 (#30518) bracket is used for T-bar installations when the main
mounting bracket is not used.
Procedure
1. Remove the ceiling panels around the T-bar.
2. Open the movable sliding part of the DCMTR01 bracket to give the stationary end of the bracket and
the slider T-bar more space.

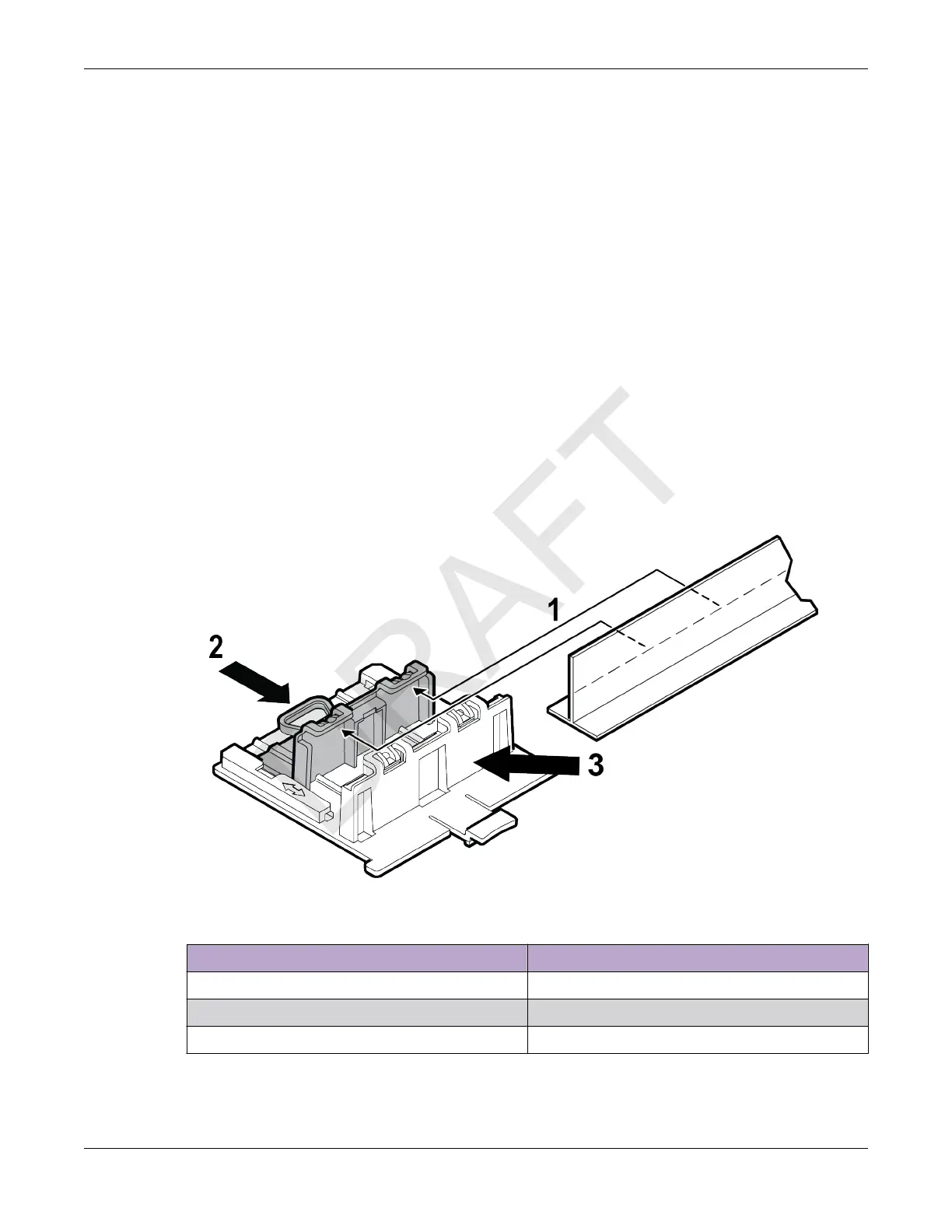

Figure 7: DCMTR01 bracket parts and T-bar
Callout Description
1 T-bar
2 Movable sliding part of the DCMTR01 bracket
3 Stationary part of the DCMTR01 bracket
3. Hook the stationary end of the bracket onto the T-bar.
4. Tilt the T-bar up slightly in such a way that you are holding the stationary and movable parts of the
bracket.
Install the Access Point
Install the Access Point on a Flat T-bar Using the
DCMTR01 Bracket
ExtremeWireless™ AP310i/e Access Points 27
