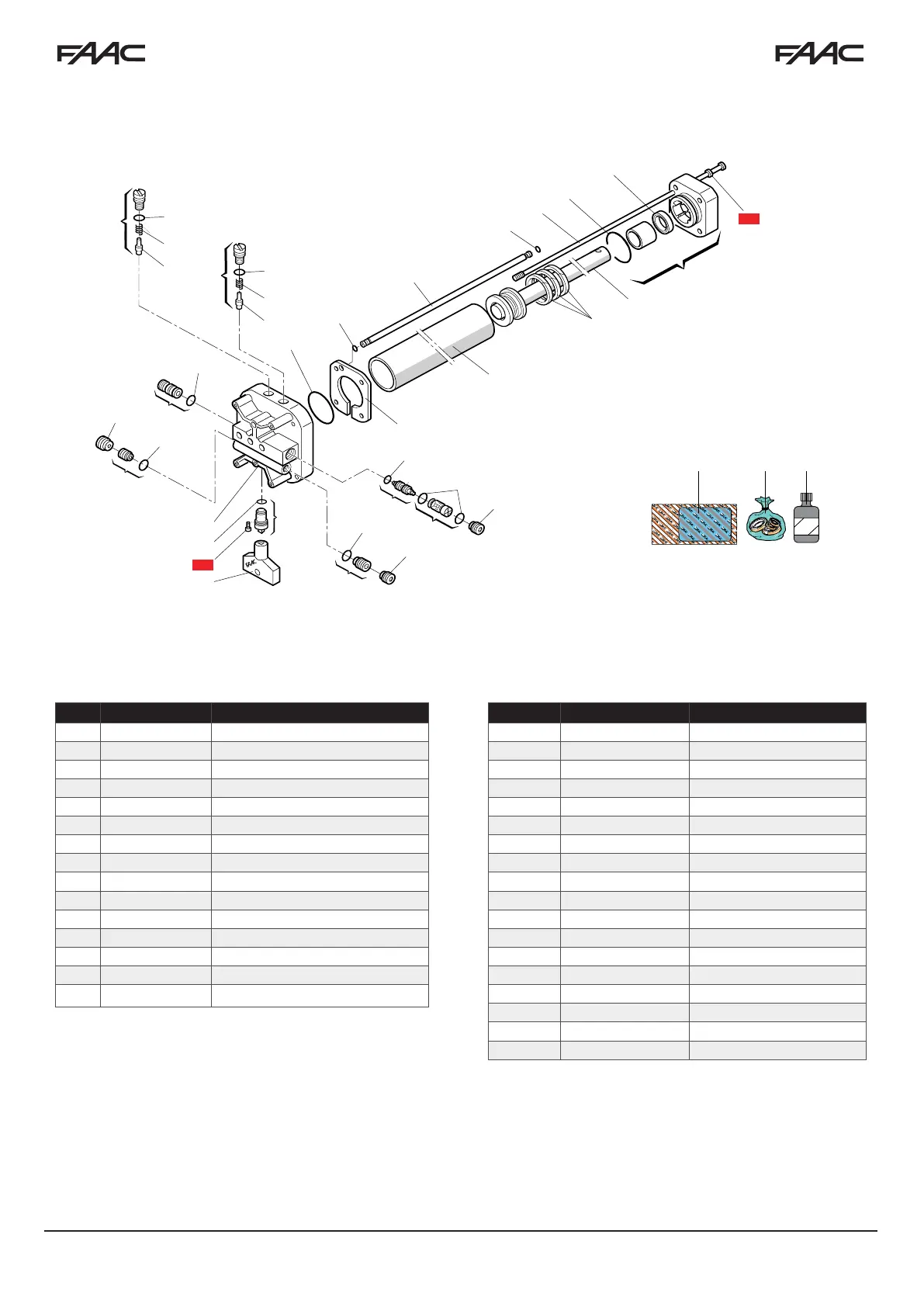

FAAC 402 - Page 26

26
116
OIL
115
126
118
117
119
120
121
102
129
123
122
102
103
114
110
113
111
112
111
110
109
108
107
106
109
108
107
105
102
102
103
104
101
128
101
127
125
124
130 131 132
Part Part Number Description
101 4404065 Inlet Valve
102 7090050015 O-Ring (10.82x1.78mm)
103 7049135 Valve Retainer
104 4180205 Black Lock Valve
105 4180395 Brass By-Pass Valve
106 4180395 Brass By-Pass Valve
107 7090150015 O-Ring (9.25x1.78mm)
108 7210025 By-Pass Spring
109 7119335 By-Pass Cover
110 7090350025 O-Ring 34.60x2.62 (Front Flange)
111 7090635 O-Ring 5x1.5 (Retract Tube)
112 7361315 Retract Tube Alum.
113 7230225 Tie Rod Cylinder
114 63000655 Seal (Front Flange Internal)
115 703204 Star Washer
Part Part Number Description
116 4994165 Front Flange
117 4350065 Piston Assembly
118 7095035 Piston Rod Packing
119 7366065 Cylinder
120 7271555 Protective Cover Guide
121 7090300015 O-Ring (7.66x1.78mm)
122 4180285 Shuttle Piston
123 4404085 Lock Valve
124 4180355 Manual Release
125 713002 Manual Release Key
126 701039 
127 709069 O-Ring (7x1.5mm)
128 4994365 
129 7049005 Brass Retainer
130 3906145 Skinpack 402
131 2168.1 Seal Kit For 402
132 714019 Qt.1 FAAC Oil: 1 qt.
132a 7140251 Qt.1 FAAC Arctic Oil: 1 qt.
