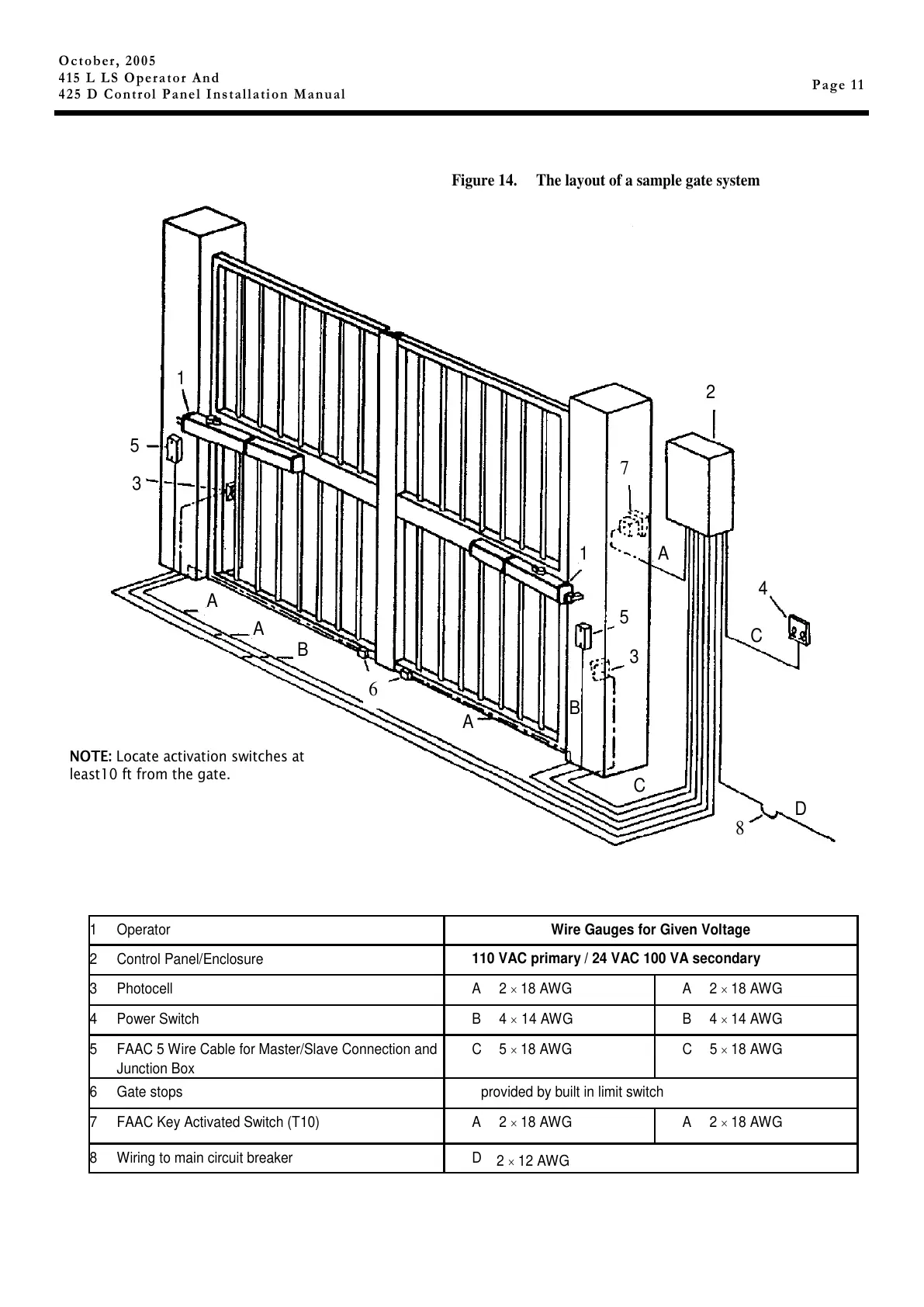

Figure 14. The layout of a sample gate system
NOTE: Locate activation switches at
least10 ft from the gate.
Page 11
October, 2005
415 L LS Operator And
425 D Control Panel Installation Manual
1 Operator
Wire Gauges for Given Voltage
2 Control Panel/Enclosure
110 VAC primary / 24 VAC 100 VA secondary
3 Photocell A 2 × 18 AWG A 2 × 18 AWG
4 Power Switch B 4 × 14 AWG B 4 × 14 AWG
5 FAAC 5 Wire Cable for Master/Slave Connection and
Junction Box
C 5 × 18 AWG C 5 × 18 AWG
6 Gate stops provided by built in limit switch
7 FAAC Key Activated Switch (T10) A 2 × 18 AWG A 2 × 18 AWG
8 Wiring to main circuit breaker D
6
7
8
2 × 12 AWG
