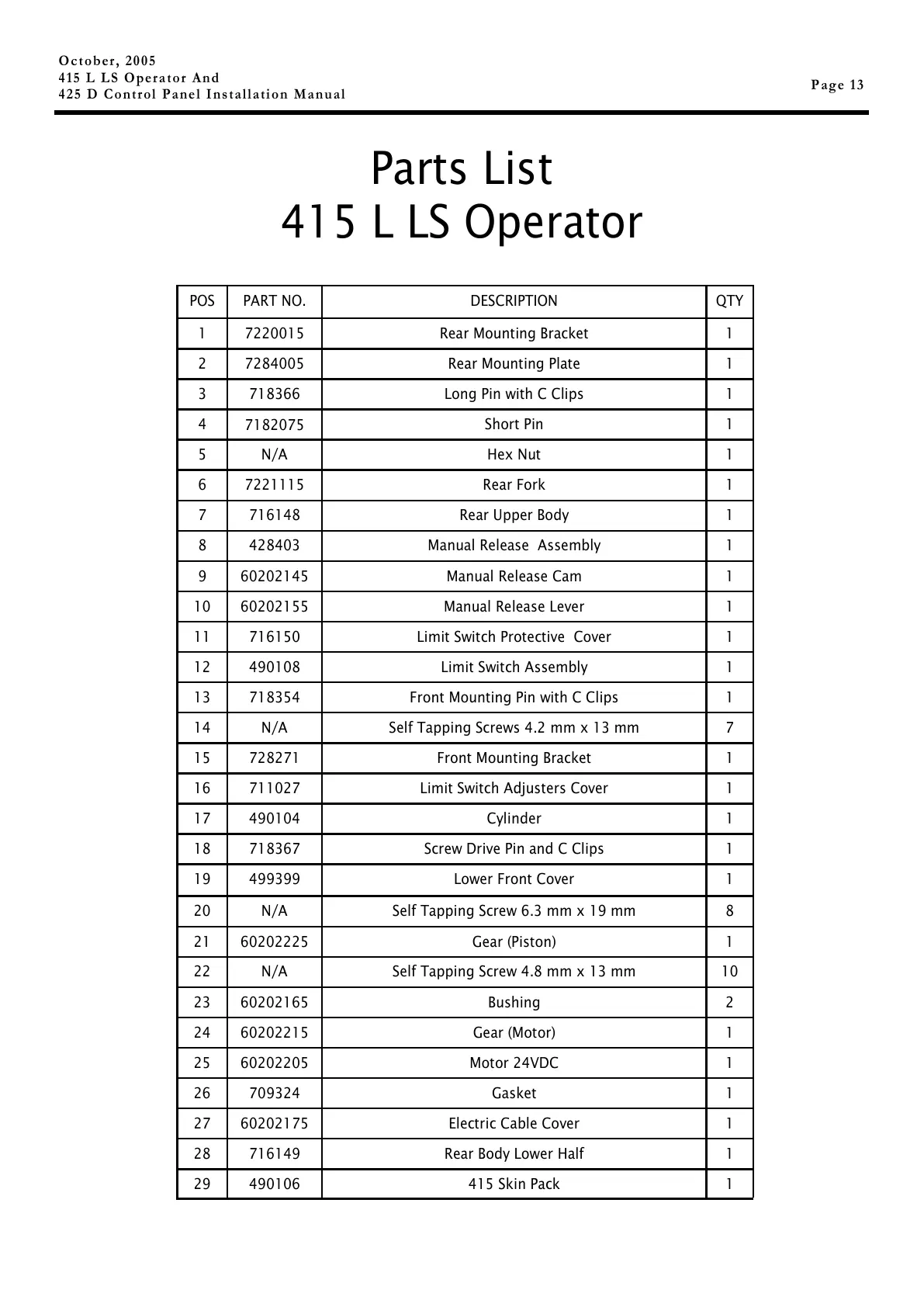

FAAC 415 LLS - 415 L LS Operator Parts List

Page 13
October, 2005
415 L LS Operator And
425 D Control Panel Installation Manual
Parts List
415 L LS Operator
POS PART NO. DESCRIPTION QTY
1 7220015 Rear Mounting Bracket 1
2 7284005 Rear Mounting Plate 1
3 718366 Long Pin with C Clips 1
4
7182075
Short Pin 1
5 N/A Hex Nut 1
6 7221115 Rear Fork 1
7 716148 Rear Upper Body 1
8 428403 Manual Release Assembly 1
9 60202145 Manual Release Cam 1
10 60202155 Manual Release Lever 1
11 716150 Limit Switch Protective Cover 1
12 490108 Limit Switch Assembly 1
13 718354 Front Mounting Pin with C Clips 1
14 N/A Self Tapping Screws 4.2 mm x 13 mm 7
15 728271 Front Mounting Bracket 1
16 711027 Limit Switch Adjusters Cover 1
17 490104 Cylinder 1
18 718367 Screw Drive Pin and C Clips 1
19 499399 Lower Front Cover 1
20 N/A Self Tapping Screw 6.3 mm x 19 mm 8
21 60202225 Gear (Piston) 1
22 N/A Self Tapping Screw 4.8 mm x 13 mm 10
23 60202165 Bushing 2
24 60202215 Gear (Motor) 1
25 60202205 Motor 24VDC 1
26 709324 Gasket 1
27 60202175 Electric Cable Cover 1
28 716149 Rear Body Lower Half 1
29 490106 415 Skin Pack 1
